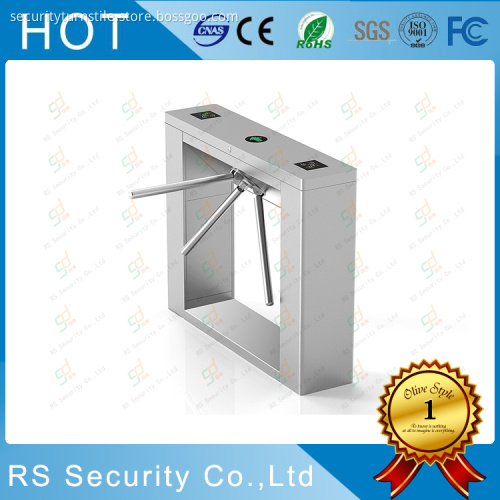

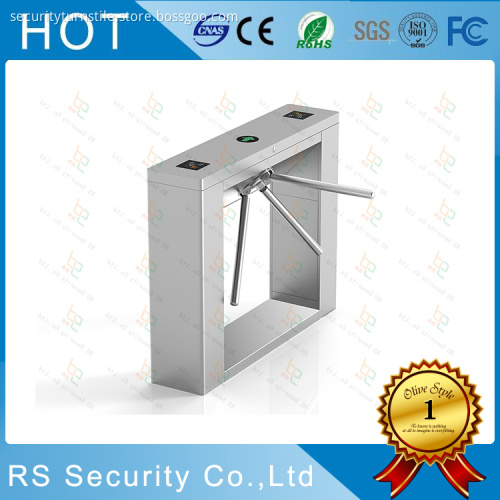

Full Automatic Systems Fingerprint Tripod Turnstile Gate
The tripod turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin/token controller&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use button to control the gate.
Tripod gate turnstile Technical Specifications:
| 1 | Power voltage | AC220V±10V, 50Hz |
| 2 | Operation temperature | -20°C ~70°C |
| 3 | Relative humidity | less than 95%, not condensed. |
| 4 | Max. Passage width | ≤600mm |
| 5 | Passing speed | ≤40 person/m |
| 6 | Motor | 24V |
| 7 | Communication Distance | 1200M |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 9 | Communication Connection | RS485 Communication |
| 10 | Material | SS304,thickness(1.5mm |
| 11 | Working environment | indoor and outdoor |
| 12 | Arm Opening/Closing Time | 0.3s |
| 13 | Size | 1200*280*980(mm |
| 14 | Failure-free operation | 5 million/time |
| 15 | Weight | 50 kg |
Tripod turnstile gateFunctions& Features:
1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not
7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle
11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate
