Security Systems Optical SwingBarrier Glass Turnstile
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

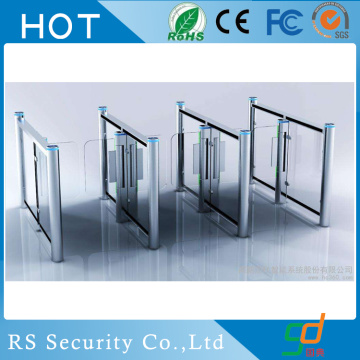

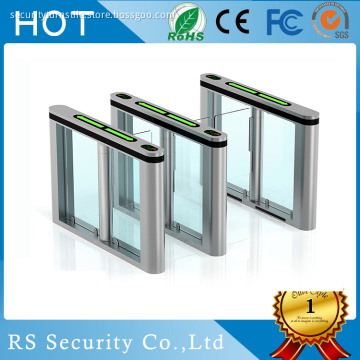

Security Systems Optical Swing Glass Turnstile
The swing turnstile has broad diversity and can be selected according to the style for indoor and outdoor open as well as other occasions; the length of swing arm can be adjusted according to the occasion and can be used for the passage of pedestrians, bicycles, wheelchairs, etc. The product runs fast and is provided with anti-collision swing arm or anti-collision machine core to protect the core structure and extend its service life; it is also provided with mechanical and infrared multiple anti-pinch to provide high safety.
Technical Specification:
| 1 | Product Name | Automatic Swing Barrier Gates |
| 2 | Environmental Temperature | -20℃~ +70℃ |
| 3 | Operating Humidity | ≤95% |
| 4 | Operating voltage | 110V/220V AC 50Hz/60Hz |
| 5 | Operating power | 80 W |
| 6 | Active distance | 3 ~ 8 m |
| 7 | Waterproof class | IP54 |
| 8 | Interface | RS 485 |
| 9 | Passage width | 450-600 mm |
| 10 | Indicator light | LED |
| 11 | Material | 304 stainless steel |
| 12 | Thickness | 1.5 mm |
| 13 | Starting-up time | 3 s |
| 14 | Switching time | 1 s |
| 15 | System boot time | 3 s |
| 16 | Transit speed | 30-45 people/minute |
| 17 | Working life | 5 million |
| 18 | Dimension | 1200*220*980mm |
| 19 | Direction | Unidirectional ,Bidirectional (optional) |
Function:
1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access Prompt function:Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control
4. Installation with personalized interface, compatible with IC, ID cards and other smart cards.
5. The main control panel built small button, the device can be set to run state
6. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically,
the default reset again after a delay, and the intensity is very small (2kg)
7. Scour protection function ,when the gate signal is not received, the stick is automatically locked
8. With automatic reset function,namely to obtain permission lock after the set time.There is no lock,swing gates automatic cancellation of this authority back to the initial state.
9. Normally open or closed can be freely adjusted to meet different venue requirements.
10. Can be mounted with a variety of reading devices, the receiver relay switch signal
11.Single ,bi-directional swing function, one-way or two-way control personnel access
12.Directly through the management computer for remote control and management, auto-reset delay automatic reset, the system default is 10 seconds after opening (adjustable)
13.Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements.
