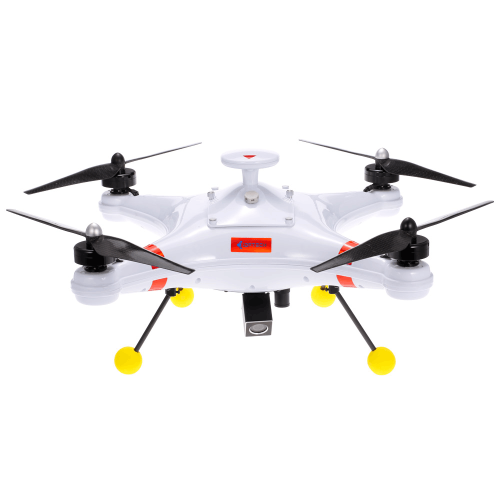

Splash Fishing Quadcopter With DJI OSD

Fishing Quadcopter With DJI OSD

Fishing quadcopter especially splash fishing quadcopter is a new drone for fishing. Splash quadcopter with DJI OSD can read the details information on the 7 inch FPV screen when the Fishing drone flying. Very safe and important for Drone Fishing Casting. OSD is fit for DJI NAZA-M-V2 flight controller. Fishing Quadcopter With DJI OSD is very safe when you flying the drone.

Specification:
General
Waterproof level: IP67
Wind resistance: up to level 5
Flight controller: for DJI NAZE-M-V2
Brushless motor: 4008
Brushless ESC: 40A (continuous current)
Propeller: carbon fiber 1355
Landing strut material: carbon fiber
Maximum payload: up to 1200g
Transmitter: FS - i6S 2.4GHz 10CH
Battery: 22.2V 4500mAh LiPo Battery
Item size: 40 * 40 * 29cm / 15.7 * 15.7 * 11.4in
Item weight: 2740g

Bait Dispenser Servo
Working current: 4.8 - 6.0V
Torque: 10 / 12kg/cm
Speed: 0.16sec / 0.14sec / 60 degree
Size: 38.6 * 18.8 * 34.9mm

FPV Monitor
Screen size: 7 inches
Resolution: 800 * 480
Brightness: 600cd/square meter
Contrast: 700 : 1
TV system: NTSC
Built-in video receiver: Dual receiver
Functions: playback, DVR, channel auto search etc.
Battery: 7.4V 2000mAh LiPo (built-in)
Operation time: 1.5 hours
Charge time: 30 minutes
Package Information:
Package Size: 52 * 52 * 27cm / 20.5 * 20.5 * 10.6in
Package Weight: 7665g / 16.9lb
General box package

Package List:
1 * Quadcopter
1 * FSi6s Transmitter
1 * 5.8G Monitor
1 * 22.2V 4500mAh LiPo Battery
1 * UltraPower Charger Set
1 * Landing Gear Set
1 * Propeller Set
1 * Monitor Charger Set
1 * Flat Antenna
1 * Mushroom Antenna
1 * Phone Holder
4 * Screws Set
1 * Cables Set
1 * Foam Gasket
1 * Manual CD
1 * OSD

Package Contents:

1set*frame

4*40A ESC

4*4008 Motor

2*1355 carbon propeller

4*carbon fiber landing gear

1*DJI controller&GPS

1*I6S remote

1*FS10 channel receiver

1*6S,4500mah(actually5000)

1*6S battery charger

1*glass board with FPV camera and Payload Release Mechanism

1*7 inch PFV screen

1*charger for FPV screen

1*650 image transmission

1*DJI mini OSD

1*cardboard box
