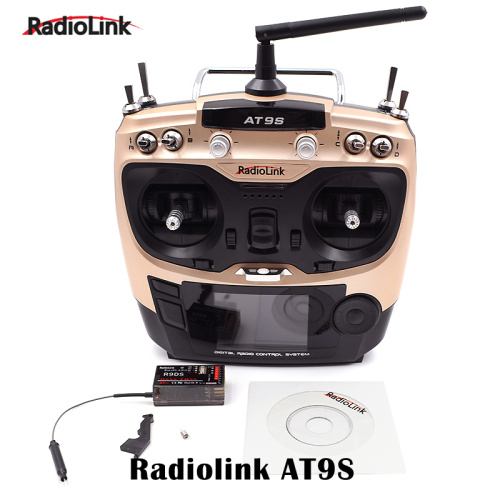

Drone Parts RadioLink AT9S Transmitter With R9DS Receiver

RadioLink AT9S Transmitter with 2.4Hz 10CH DSSS FHSS spread spectrum 3ms fast response with RadioLink R9DS Receiver. Drone Parts RadioLink AT9S Transmitter With R9DS Receiver is black and gold color very beautiful. With this almighty transmitter, RadioLink AT9S, you can control your multicopter as long as you see it in the urban area. Apart from its astonishing control distance, it is also characterized by DSSS and FHSS spread spectrum technology, multilingual menu and ultra fast response. Therefore, your commands can go farther and be carried out faster! This Transmitter With Receiver  supports nearly all RC airplanes, boats, and cars.

Specifications:

Size: AT9S 183 x 100 x 193mm, R9DS 41 x 23 x 14mm

Weight: 0.88kg

Frequency: 2.4GHz ISM band ( 2400MHz to 2483.5MHz )

Modulation mode: QPSK

Channel bandwidth: 5.0MHz

Spread spectrum: DSSS, FHSS

Adjacent channel rejection: more than 38dBm

Transmitter power: less than 100mW ( 20dBm )

Operating current: less than 90mA at 12V

Operating voltage: 7.4 - 18.0V

Control distance: more than 900 meters near the ground, 1500 meters in the air

( The actual control distance depends on the environment of flight. )

Channel: 10 channels ( more than 5 user-customizable channels )

Compatibility: all 120-degree and 90-degree swash-plate helicopters, all fixed-wing planes, gliders, and multi-rotors

Simulation model: in this model, you can turn off the radio-frequency emission and enter the power saving mode

Screen: 2.8 inches, 16-bit color, 240 x 320 pixels

Compatible receivers: R9DS ( SBUS and PWM ) , R10DS and R6DS

Throttle type: left-hand throttle

Package Contents: 1 x AT9S Transmitter, 1 x R9DS Receiver
