88mm Micro Brushless RC Racing Drone PNP

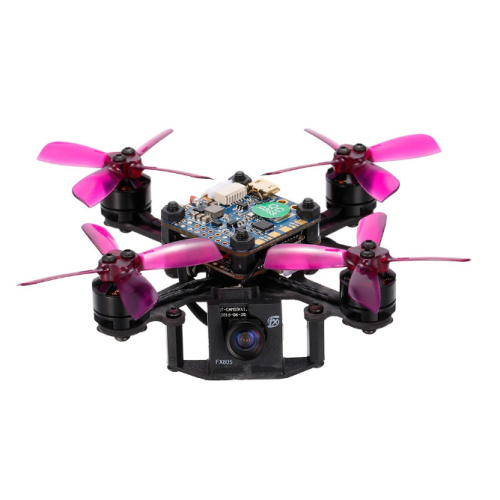

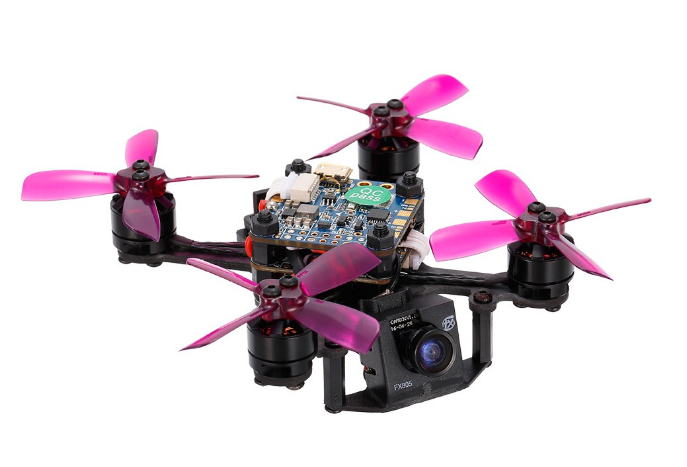

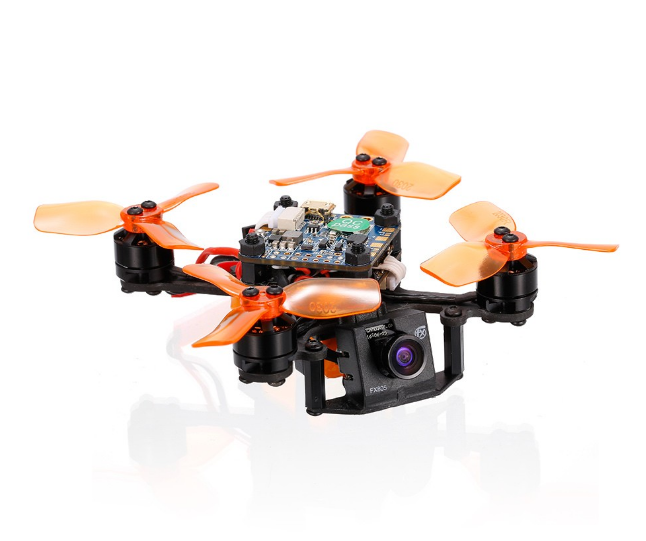

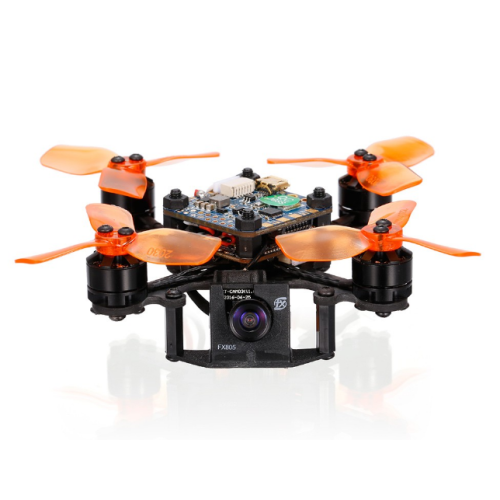

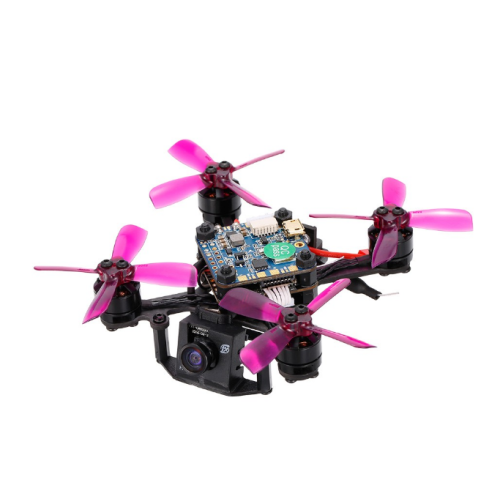

IDEAFLY IF88 88 88mm Micro Brushless RC Racing Drone PNP is a mini indoor quadcopter with 1104 Brushless Motor and F4 flight controller. Racing Drone PNP without any receiver, you need install a receiver youself or buy the receiver from us. F4 Flight Controller of IF88 is a FC with OSD.

Notice: The PNP version doesn't have remote control and receiver.

Main Features:
- High-performance F4 FC with STM32F405 MCU, BMP280, MPU6000 and micro SD card slot for flight data logging
- Small and durable - 88mm wheelbase, true "X" configuration, 2mm thick 3K carbon fiber chassis
- Powerful 1104 7500KV high RPM brushless motors and 2030 three-blade propellers for thrilling flight

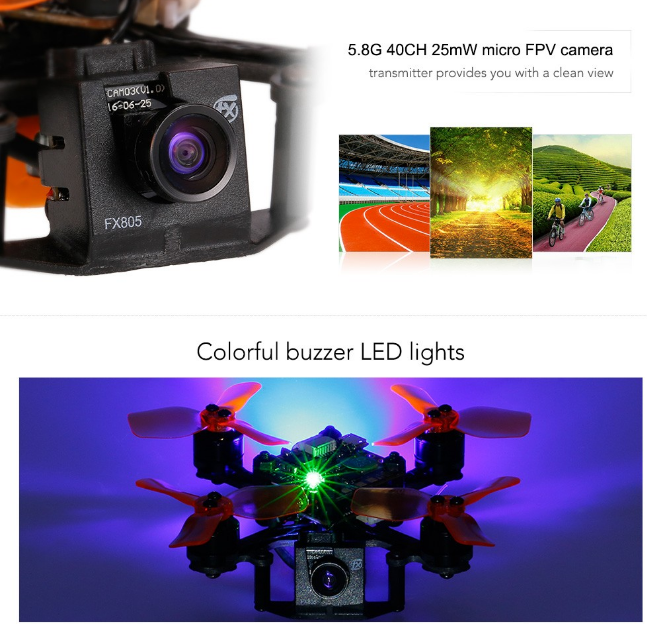

- 5.8G 40CH 25mW image transmission + 600TVL NTSC camera featuring good image quality in strong / low light and 120-degree FOV

Specifications:

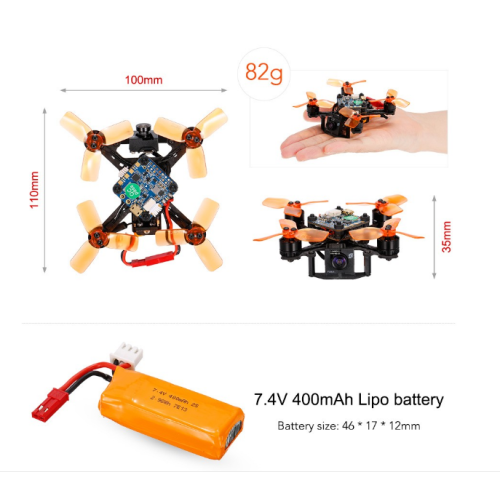

General
Weight: 77.5g ( including battery )
Size: 7.3 x 7.3 x 3.5cm
Wheelbase: 88mm
Carbon fiber chassis: 2mm thick
Brushless motor: 1104 7500KV
Propeller: 2030 three-blade
Battery: 7.4V 300mAh 30C LiPo

Flight Controller
Processor: STM32F405 MCU
IMU: MPU6000 connected via SPI
Barometer: BMP280
Micro SD card slot: max. 32GB support
Integrated OSD: yes
Integrated BEC: yes
Dimension: 32 x 32mm
Mounting hole spacing: 25 x 25mm

4-in-1 ESC
Power supply: 1 - 2S
BEC output: no
Continuous current: 4 x 3A
Burst current: 4 x 7A
Weight: 2.7g

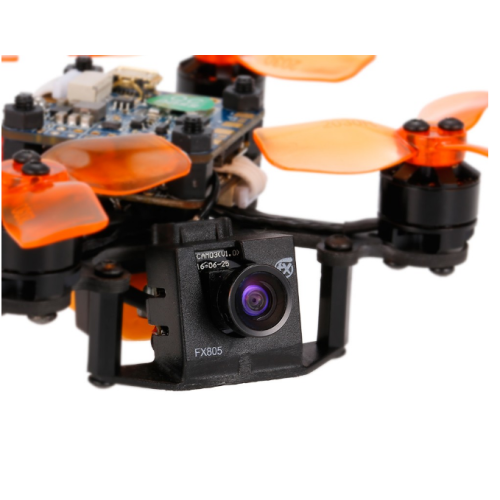

FPV Camera
Resolution: 600TVL
TV system: NTSC
Min. illumination: 1 lux
Field of view: 120 degree
Input voltage: 2.5 - 5V
Frequency range: 5645 - 5945MHz
Channels: 40 ( including RaceBand, Band R )
Power: 25mW

Note:
The flight controller only supports SBUS receivers.
The propeller colors ( orange, purple, and transparent ) will be shipped randomly.
Click here to download the wiring diagrams and FPV camera user manual.

Specification

General	Brand: Ideafly Type: Frame Kit Version: PNP
Motor	Model: 1104 Motor Type: Brushless Motor KV: 7500
Flight Controller	Flight Controller Type: F4
Camera	Video Resolution: 600TVL Video Standards: NTSC
Electronic Speed Controller	Firmware: BLHeli-S Functions: DShot150,DShot300,DShot600,Oneshot125,Oneshot42
Battery	Battery (mAh): 300mAh Battery Coulomb: 30C Flying Time: 5-8mins Charging Time.: 50mins Plug Type: JST,Other Plug
Dimension and Weight	Product weight: 0.0775 kg Package weight: 0.1900 kg Product size (L x W x H): 7.30 x 7.30 x 3.50 cm / 2.87 x 2.87 x 1.38 inches Package size (L x W x H): 17.30 x 14.20 x 5.00 cm / 6.81 x 5.59 x 1.97 inches
Package Contents	Package Contents: 1 x Drone ( Battery Included ), 4 x Spare 2035 Four-blade Propeller, 1 x Sticker
