88 Racing Drone Micro Brushless RC

88 Racing Drone Micro Brushless RC

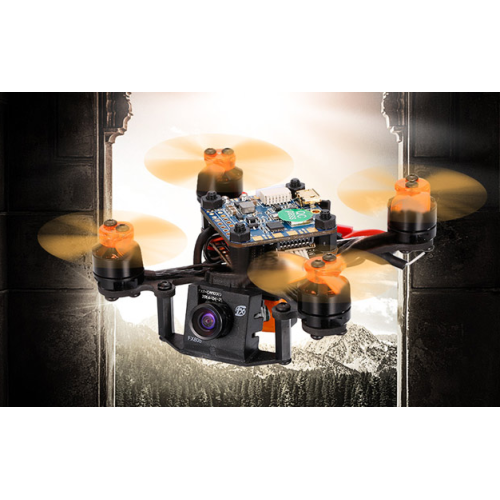

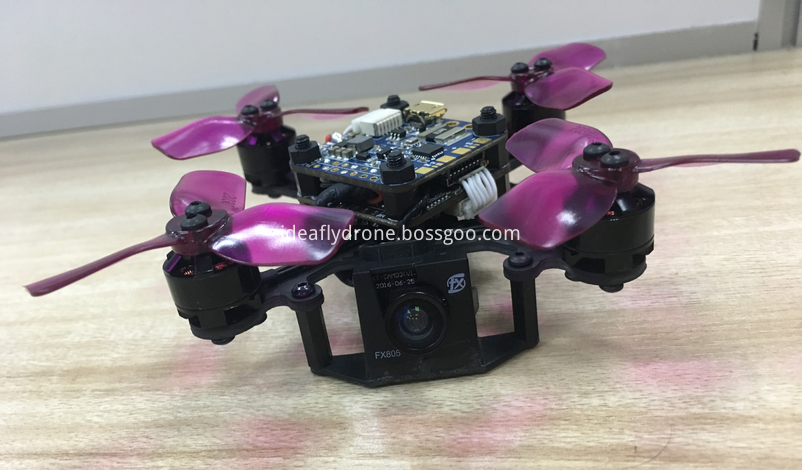

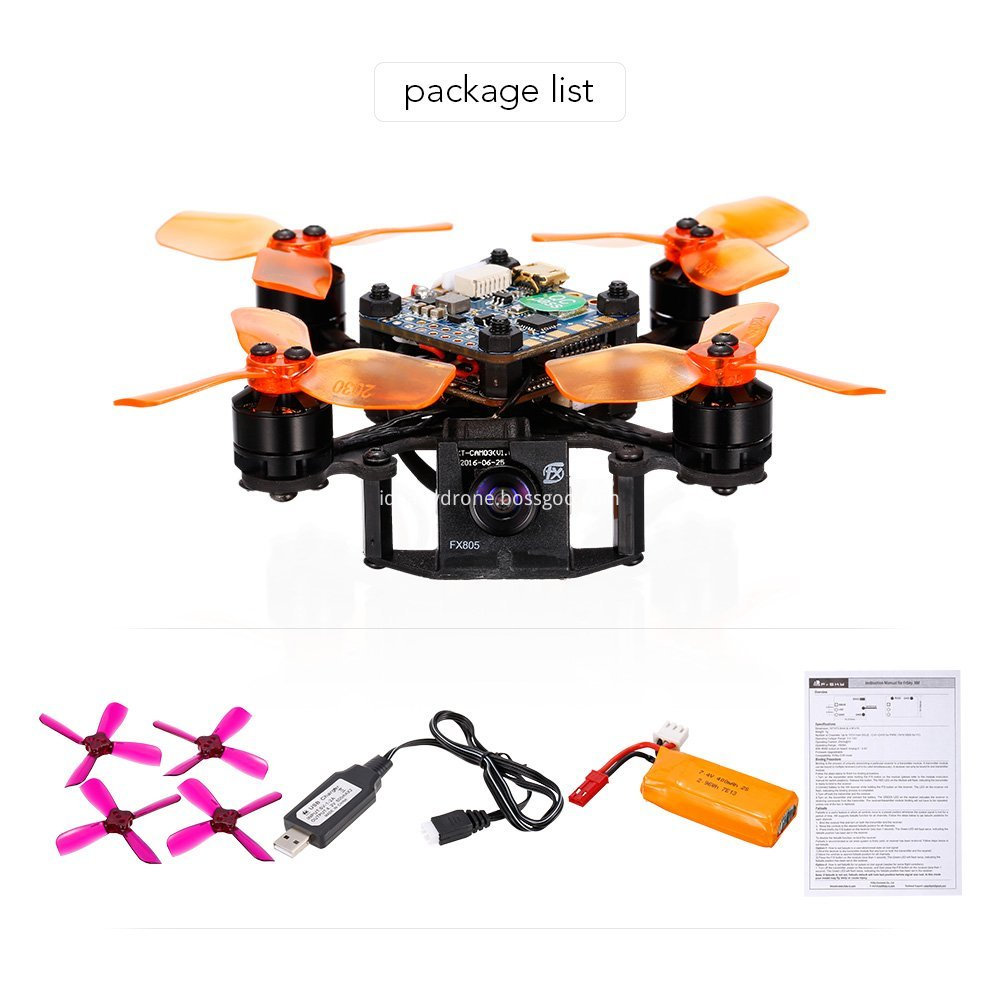

IDEAFLY IF88 88 Racing Drone Micro Brushless RC is a mini indoor quadcopter with brushless motors and F4 flight controller. 88 Racing Drone is Micro Brushless RC for bigginners to fly. Brushless motors is very important for Micro Brushless Hexacopter.

Main Features:

High-performance F4 FC with STM32F405 MCU, BMP280, MPU6000 and micro SD card slot for flight data logging

FrSky XM 2.4GHz 16-channel receiver intended for more fun in FPV racing and more than 600m long control range

Small and durable - 88mm wheelbase, true "X" configuration, 2mm thick 3K carbon fiber chassis

Powerful 1104 7500KV high RPM brushless motors and 2030 three-blade propellers for thrilling flight

5.8G 40CH 25mW image transmission + 600TVL NTSC camera featuring good image quality in strong / low light and 120-degree FOV

Specifications:

General

Weight: 77.5g ( including battery )

Size: 7.3 x 7.3 x 3.5cm

Wheelbase: 88mm

Carbon fiber chassis: 2mm thick

Brushless motor: 1104 7500KV

Propeller: 2030 three-blade

Battery: 7.4V 400mAh 30C LiPo

Flight Controller

Processor: STM32F405 MCU

IMU: MPU6000 connected via SPI

Barometer: BMP280

Micro SD card slot: max. 32GB support

Integrated OSD: yes

Integrated BEC: yes

Dimension: 32 x 32mm

Mounting hole spacing: 25 x 25mm

4-in-1 ESC

Power supply: 1 - 2S

BEC output: no

Continuous current: 4 x 3A

Burst current: 4 x 7A

Weight: 2.7g

FPV Camera

Resolution: 600TVL

TV system: NTSC

Min. illumination: 1 lux

Field of view: 120 degree

Input voltage: 2.5 - 5V

Frequency range: 5645 - 5945MHz

Channels: 40 ( including RaceBand, Band R )

Power: 25mW

FrSky XM Receiver

Frequency: 2.4GHz

Channels: 16

Fail-safe: yes

Firmware upgradable: yes

Receive distance: more than 600m

Compatibility: FrSky D16 Mode transmitters
