Product Description

Hantek 6000BE Series: 6082BE, 6052BE, 6022BE based PC USB Digital Storage Oscilloscope, Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s, Features one USB 2.0 port and the Standard USBXITM interface, No Extra Power Cord Needed. Works with a Laptop or Desktop.

Hantek 6000BE Series: 6082BE, 6052BE, 6022BE

Model	Hantek6082BE	Hantek6052BE	Hantek6022BE
Channel	2 Channels
Bandwidth	80MHz	50MHz	20MHz
Input Impedance	1MΩ 25pF
Max. Sample rate	250MS/s	150MS/s	48MS/s
Coupling	AC/DC/GND		DC
Vertical resolution	8Bit
Gain range	10mV-5V, 9Steps
DC accuracy	±3%
Timebase range	4ns-1h, 38 Steps		4ns-5ks
Vertical adjustable	Yes
Input protection	Diode clamping
X-Y	Yes
EXT. input	Yes		No
Trigger Mode	Auto, Normal and Single
Trigger Slope	+/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Trigger Source	CH1, CH2, EXT		CH1, CH2
Pre/Post trigger	0-100%
Buffer size	10K-64KB/Channel		1M
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close
Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Yes
Math	FFT, addition, subtraction, multiplication, division.
Cursor	Frequency, Voltage
Accessories	S/W CD, probes, manual, USB cord

Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

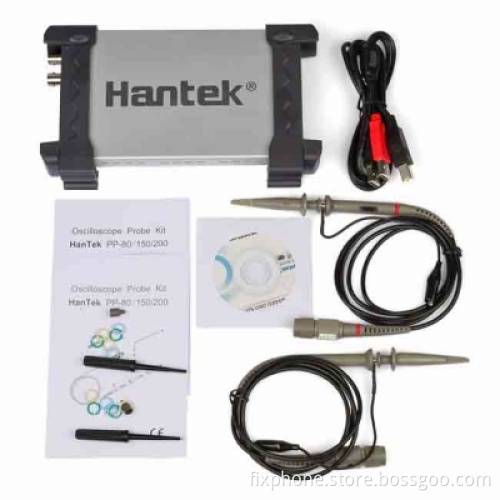

Package List:

    1x Hantek 6000BE Series oscilloscope
    2x oscilloscope probe
    1x USB cable
    1x CD (manual etc.)
