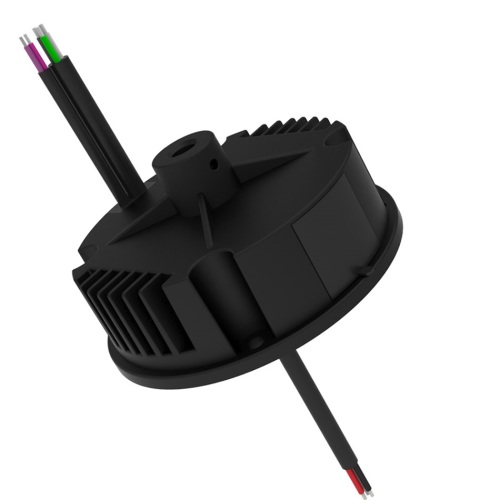

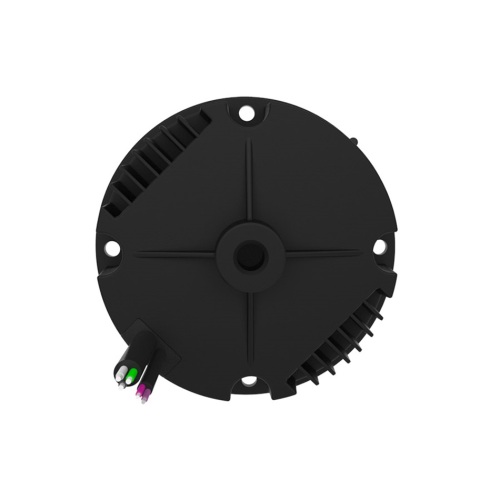

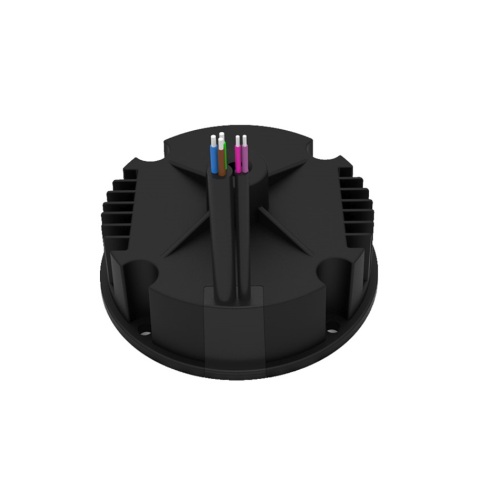

200w Dimmable LED Driver for high bay fixture with Power Adjustable function
-
$12.98≥5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Transportation:
- Ocean, Air, Express
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air,Express |
| Port: | Yantian,Shekou,HongKong |
IP65.
Constant Current Design: Output current adjustable via Offline program
0(1)-10V dimming：Smoothly dimming & flicker free.
Dim to off without afterglow.
DIP Button: 3 types CCT Color switchable &Rated Power Switchable.
Surge Immunity: D-M:4KV/ C-M:6KV.
Protection：Short Circuit, Open Circuit.
Auxiliary Output 12V/200mA
Dimming signal is isolated from LED output.
Compatible with Llighting sensor control
FD-xxxK special UFO LED Drivers with CCT(changeable color temperature) function and Power Adjustable via DIP button. Customers can select different power at one unit. It supports Multiple-units dimming in parallel functions, centralized intelligent control and management functions and compatible with multiple dimming control functions (intelligent networking control, independent single lamp control, partial multi-units in parallel control, etc.) for Commercial&industrial lighting.
Led Driver Dimmable,UL Dimmable Transformer,Constant Current Led Driver
Details:
Model List:
|
Model |
Power(W) |
Vout(Vdc) |
Iout (mA) |
Efficiency |
|
FD-200K-130B/C/D/E |
200 |
90-130 |
1800(Max) |
93.0% |
|
FD-200K-260B/C/D/E |
200 |
180-260 |
850(Max) |
94.0% |
|
|
Applications
- Area
- Roadway
- Parking garages
- Floodlights
- Mid-bay and low-bay fixtures
-
Parking Lights
