LED Lights Lighting Electrical Lighting Accessories
-
USD2.5≥500 Piece/Pieces
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian |
Fahold Electronics Co.,ltd redefine the art of indoor lighting, providing the high efficiency and flicker free led driver for led lighting, office lighting and hospitality lighting. For high bay and low bay industrial lighting and warehouse lighting power source, choose Fahold drivers

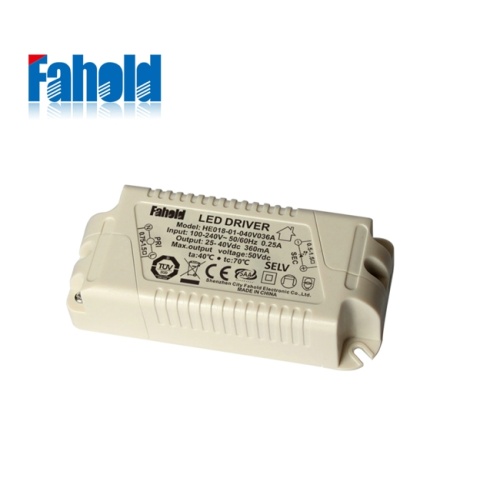

Panel Light LED Driver
HE018-01
Input Voltage: 100-240V
Input Frequency: 50/60Hz
CE TUV Compliant: Yes
|
Model |
Specfication |
Input Voltage |
Maximum power |
Output Current |
Cross flow accuracy |
Efficiency |
PF |
THD |
Size(L*W*H) |
(Warranty) |
|
HE018-01 |
Single output | 100-240V | 18W | 100-600mA | 25-40V/30-42V/45-65V | 86% | >0.9 | <15% | 87X37X22mm | 3 years |
Product Features
Physical
• Unit must be installed within an electrical enclosure.
• Enclosure wiring must be rated to 600V & 105°C or higher.
Performance
• Minimum ambient operating temperature: -40°C. • Maximum allowable casing temperature: 90°C.
• For reliability and failure rate information, contact Fahold Technical Sales(stefan<at>fahold.com) Representative.
• The unit is TUV certified for operation in dry or damp locations (Indoor Type ).
• The unit is tolerant of extended open circuit and short circuit conditions.
• The unit is resistant to surges as per IEEE/ANSI C62.41.2-2002 Location C-Low (6kV/3kA).
• The unit cannot be hot plug-in at output side.
