75W Adjustable Waterproof Led Power Driver
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- YanTian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200 Thousands Pcs/Month |
| Supply Ability: | 200000Pcs/Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | YanTian |
Product Description:

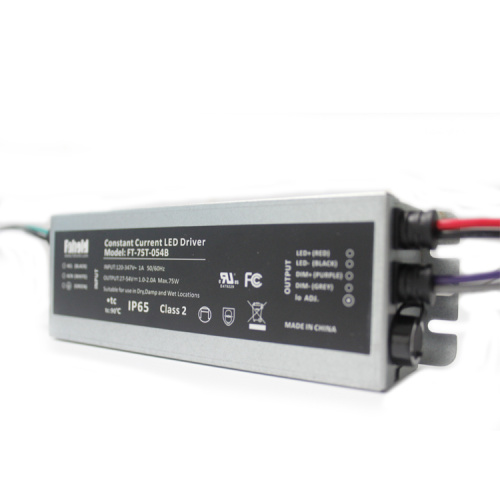

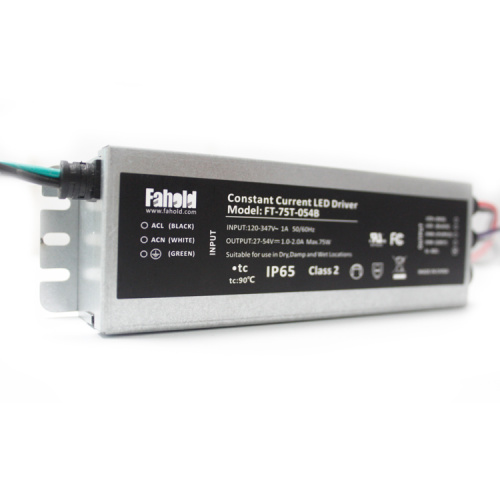

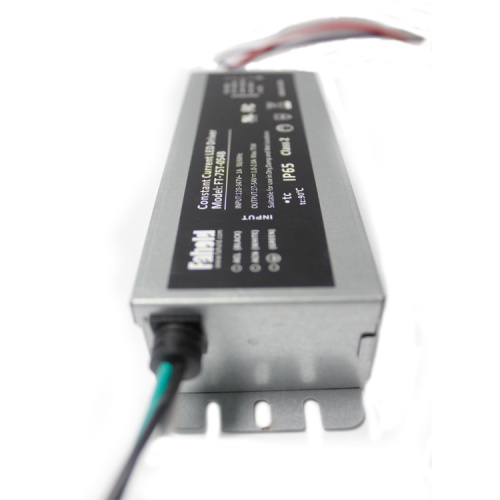

FT-75T-54 Led Driver is belong to Fahold's waterproof series.
The case was made from steel,through potting inside and seal up the aluminum shell to achieve watertight function.This item is up to IP65, Fahold's other series can reach IP67.
Excellent design and consisting of good material & component ensure more than 5 years life time, more cost-effective than aluminum case series.
Feature:
*****Accept 100-347VAC input
****Constant current design.
***3 in 1 dimming mode:0-10V,PWM,RX.
**Short circuit, open circuit, over voltage protection.
*Support Auxiliary output 12V,200mA.
Technical Parameter
|
Output |
Rated Power |
75W |
|
Output Voltage |
27-54Vdc |
|
|
Rated Output Current |
1-2A | |
|
Ripple and Noise |
800mVp-p |
|
|
Current accuracy |
± 5% I0 |
|
|
Efficiency |
≥86% @ 120 Vac, ≥89% @ 347Vac | |
|
Line Regulation |
5%Io |
|
|
Load Regulation |
5%Io |
|
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 2 second
|
|
|
Input |
Input Voltage |
120-347Vac |
|
Input Frequency |
50/60Hz |
|
|
Input Current (Typ.) |
1.2A @120-347 Vac ,100% load | |
|
No load Voltage |
2Wmax |
|
|
Inrush Current |
60Amax. @ 230Vac, 25℃
|
|
|
Power factor(Typ.) |
PF>0.9@ 120-347 Vac, 100% load | |
|
THD |
THD<20% @ 120-347 Vac, 100% load | |
|
Protection |
Open circuit |
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed |
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed |
|
|
Safety Compliance |
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
|
EMI |
GB17743,GB17625.1; EN55015, EN61000-3-2, EN61000-3-3.
|
|
|
Surge Immunity |
CM-6KV; DM-4KV Performance Criterion:B |
|
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
|
|
Features
|
· Constant current mode output · Steel housing with Class Ι design · Built-in active PFC function · IP67 / IP65 design for indoor or outdoor installations · Function options: output adjustable via potentiometer; · 3 in 1 dimming · Auxiliary 12V output · Typical lifetime>50000 hours · 5 years warranty |
|
Application:
Excellent waterproof function make our led driver remain perfect working in outdoor,our waterproof series led driver can use for led street light,led flood light, high bay lights etc outdoor occasion light.
