200W Waterproof Dimmable Led Driver
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- YanTian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200 Thousands Pcs/Month |
| Supply Ability: | 200000Pcs/Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | YanTian |
Product Description:

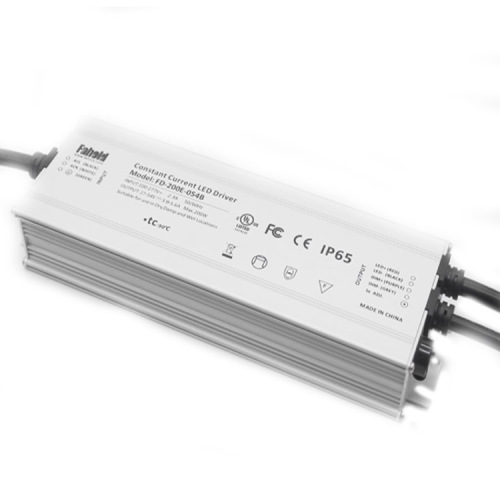

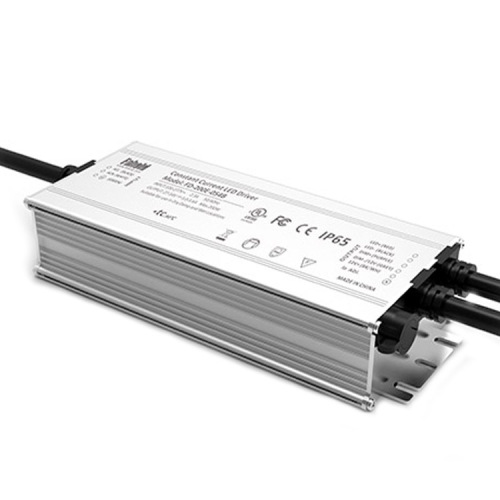

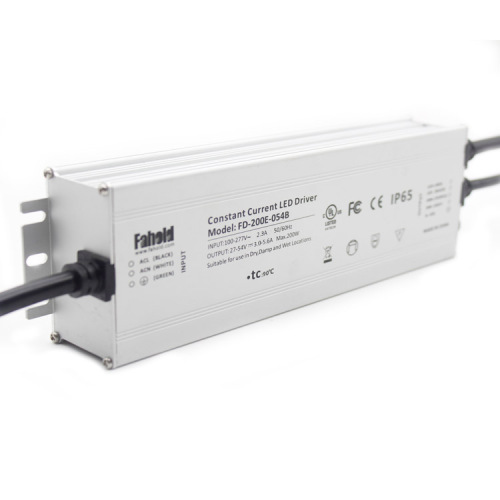

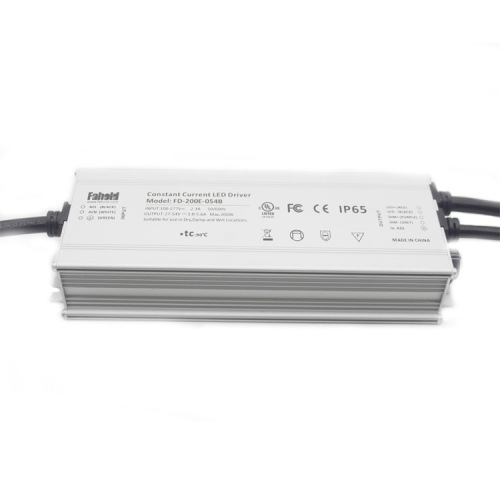

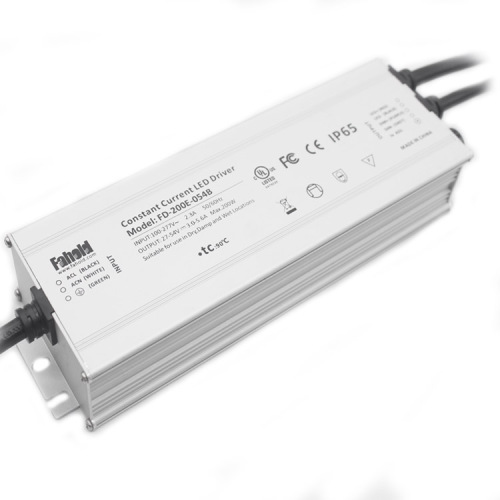

FD-200E-54 Led Driver is belong to Fahold's waterproof series.
The case was made from aluminum,through potting inside and seal up the aluminum shell to achieve watertight function.This item is up to IP65, Fahold's other series can reach IP67.
Excellent design and consisting of good material & component ensure more than 5 years life time.
Feature:
*****Accept 100-277VAC input
****Constant current design.
***3 in 1 dimming mode:0-10V,PWM,RX.
**Short circuit, open circuit, over voltage protection.
*Support Auxiliary output 12V,200mA.
Technical Parameter
Output
Rated Power
200W
Output Voltage
27-54Vdc
Rated Output Current
Ripple and Noise
800mVp-p
Current accuracy
± 5% I0
Efficiency
Line Regulation
3%Io
Load Regulation
3%Io
Turn On Delay Time
Under normal conditions, the maximum delay time is 2 second
Input
Input Voltage
Input Frequency
50/60Hz
Input Current (Typ.)
No load Voltage
2Wmax
Inrush Current
Power factor(Typ.)
THD
Protection
Open circuit
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed
Short Circuit
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed
Safety Compliance
Safety Standard
EMI
Surge Immunity
CM-10KV; DM-6KV Performance Criterion:B
Leakage Current
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage
Features
· Constant current mode output
· Aluminum housing with Class Ι design
· Built-in active PFC function
· IP67 / IP65 design for indoor or outdoor installations
· Function options: output adjustable via potentiometer;
· 3 in 1 dimming
· Auxiliary 12V output
· Typical lifetime>50000 hours
· 5 years warranty
2.8-5.6A
≥89% @ 100 Vac, ≥91% @ 277Vac
100-277Vac
2.3A @100 -277 Vac , 100% load
PF>0.92@ 100-277 Vac, 100% load
THD<20% @ 100-277 Vac, 100% load
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12.
Application:
Excellent waterproof function make our led driver remain perfect working in outdoor,our waterproof series led driver can use for led street light,led flood light, high bay lights etc outdoor occasion light.
