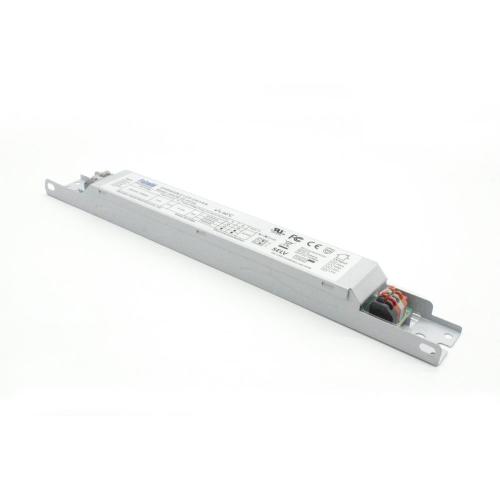

Linear led driver Slim shape dimmable power supply
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, DHL
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air,DHL |
| Port: | Yantian,Shekou,HongKong |
Product family benefits
- Global usage - CE & cURus approval
- Flexible and future-proof current setting via DIP Switch
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Higher quality of light thanks to < 1% output ripple current
- Very high efficiency (up to 97%)
- Protection against 4 kV burst and 2 kV surge voltage (L-N and L-N/PE)
|
Input characteristics: |
|
|
Input Voltage |
120-277Vac or 120-347 |
|
Input Frequency |
47-63Hz |
|
Input Current (Typ.) |
600mAmax. @ 120-347Vac , 100% load |
|
Surge Current |
60Amax. @ 230Vac, 25℃ |
|
Power factor（Typ.） |
PF>0.9@115VAC/230VAC/277VAC/347VAC, 100% load |
|
THD总 |
THD<20% @115VAC/230VAC/277VAC/347VAC, 100% load |
|
Output characteristics |
|
|
Voltage accuracy |
5% |
|
No load Voltage |
2Wmax |
|
Efficiency |
85.5%@ 120-277Vac & 100% load, see efficiency vs. load curve for the details |
|
Ripple and Noise |
500mVp-p |
|
Line Regulation |
5%Io |
|
Load Regulation |
5%Io |
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 1 second |
|
Safety compliance |
|
|
Safety Standard |
GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12. |
|
Dielectric Strength |
P-S:3750VAC/5mA/60S P-E:1500VAC/5mA/60S P-E:500VAC/5mA/60S |
|
Insulation Resistance |
I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH. |
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage |
|
EMI |
GB17743，GB17625.1; EN55015, EN61000-3-2, EN61000-3-3. |
|
EMS |
EN 61000-4-2, 3,4,5,6,8,11, EN 61547. |
|
Surge Immunity |
Severity Level: Level2/2，DM 1.0kv Severity Level: Level3/3， CM 2.0kv Performance Criterion：B |
|
Reliability |
|
|
Life Time |
≥5Years H@230Vac, 100% load. See lifetime vs. Tc curve for the details |
|
MTBF |
≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F) |
|
Warranty |
5 years |
|
Others |
|
|
Dimensions |
278*30*20mm（L*W*H）
|
|
Weight |
190±5g |
Areas of application
- Linear and area lighting
- Greenhouse lighting
- Industry lighting
- Suitable for luminaires of protection class I
