Offices and Commercial Usage Lighting Drivers

Details

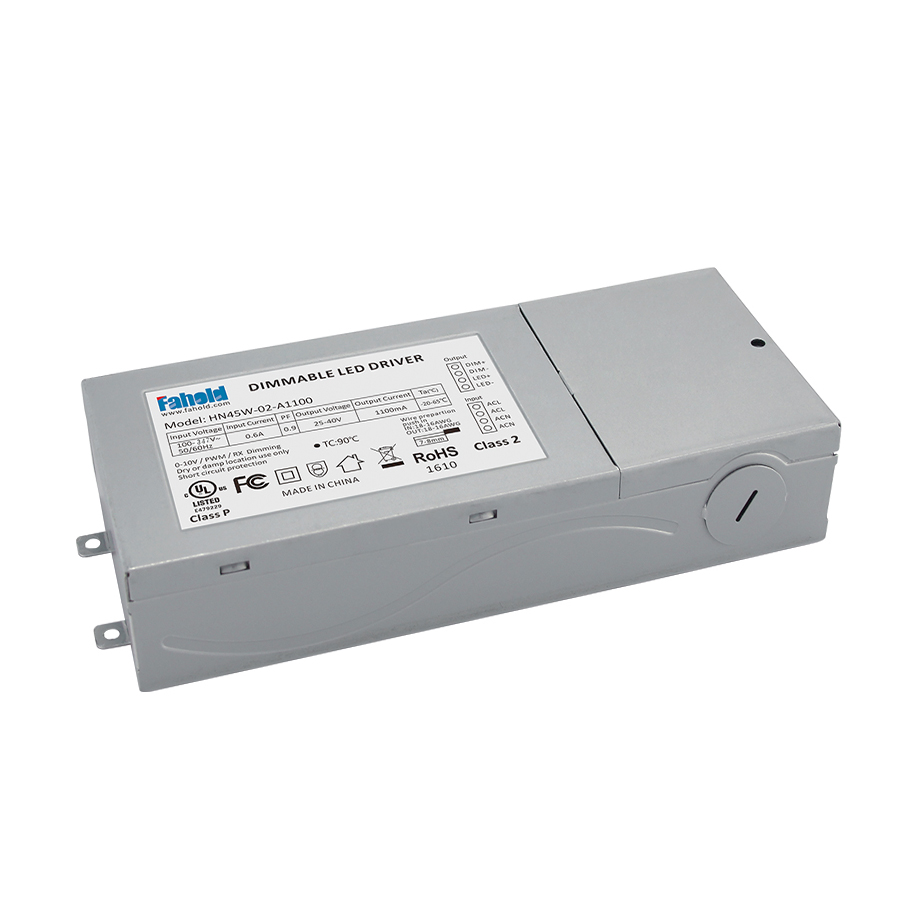

HN45W-02, Fahold  led driver, especially designed  for innovative and prestigious office lighting, Surface-mounted luminaire for ceiling mounting in indoor rooms. Flicker free 0-10V/PWM/RX dimming, with wattage range of 45W ,UL,FCC,CE compliant. This driver are suitable for America market,Commercial LED Troffer Driver, etc.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· High PFC

· Single channel output, output current level selectable.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 87%

· Built-in active PFC function

· 100% output  dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for indoor LED lighting application

•  OEM & ODM are welcome.
•   Sample fee: negotiable, sample can be supplied in 5 days.
•   High quality, complete kinds, good stability, strong practicability.
•   Good after-sales service & point to point technical supports.
•   Energy saving, long using life.
•  Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.
•   Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

Product Specs:

Output voltage:25-40V

Max. Output wattage: 45W

Max. Output Current: 1100mA

Dimensions:188x76x33mm

Efficiency:87%

Electronic Led Dimmer

Encironment/IP Rating: Indoor/IP20

Flicker free

Max. Input voltage:277V

Certificate:UL,FCC,CE

HN45W-02,  iron case encloursed led driver 45W constant current dimmable driver, Flicker free 0/1-10V/PWM/RX dimming, Desigened for high lumen Troffer lights AND High quality led Panel lights. Energy saving driver. Its housing was made out of iron,  independent design for the output connection structure, suitable for Europe market & North American market.
