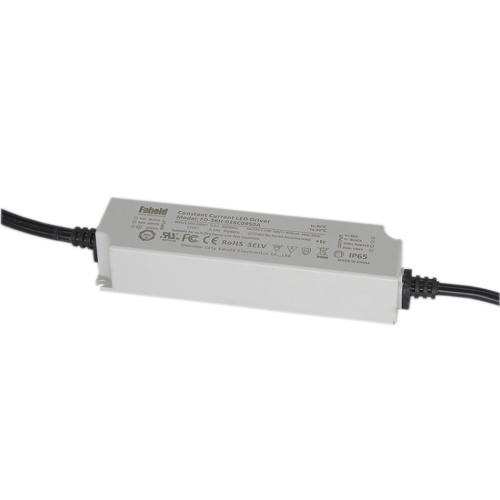

IP65 LED power supply driver IP67 36W
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, CIF, EXW, FCA
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |
Highlights
- Optional dimming function:1-10V,PWM
- IP67,Suitable for dry,wet,rain environment
- Short Circuit,over temperature,over voltage protection
- Metal Shell,internal gule,can be used for dangorous occasions
|
Product Name |
Waterproof outdoor led lighting drivers |
|||
|
Item |
FD-36H038 | |||
|
Output |
Current |
1800mA MAX | 1500mA MAX | 1300mA MAX |
|
DC Voltage |
24V-38V |
30-42V | 36-54V | |
|
Rated power |
55W |
55 |
55 | |
|
Current Accuracy |
±3% |
|||
|
R & N (Max) |
75mAp-p |
|||
|
Channels |
1 |
|||
|
Input |
Voltage Range |
100VAC – 277VAC |
||
|
Frequency Range |
50 – 60Hz |
|||
|
Efficiency(Typ) |
89% |
|||
|
Power Factor(Typ) |
0.98 |
|||
|
AC Current(Typ) |
0.11A@230VAC |
|||
|
Leakage Current |
<5mA/277VAC |
|||
|
Inrush current(Typ) |
<1A at 230VAC |
|||
|
Protection |
Short Circuit |
Output close, recovers automatically after fault removed |
||
|
Function |
Dimming |
1-10V dimming (Passive or active) |
||
|
Others |
Dimension |
140(L) *48(W)*33(H)mm |
||
|
G.W |
450g |
|||
|
Packing |
415(L)*360(W)*190(H)mm;50pcs |
|||
|
Working temp. |
-20℃ ~ 50℃ |
|||
Payment: TT,Western Union, Moneygram,Paypal,Escrow.,Etc
Shipping:
Delivery: Send out immediately after your payment
