50W UL LED Linear Driver For Indoor
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200 thousands pcs per month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | YANTIAN |
Details

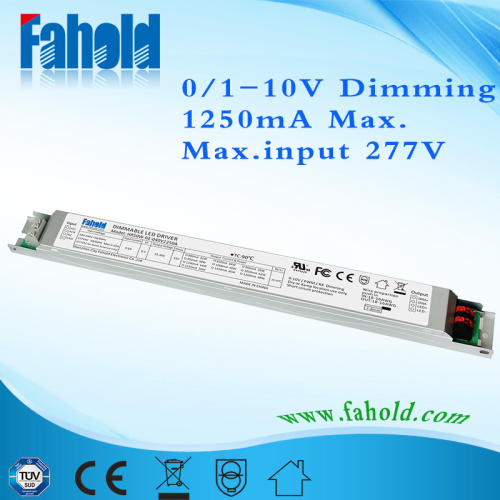

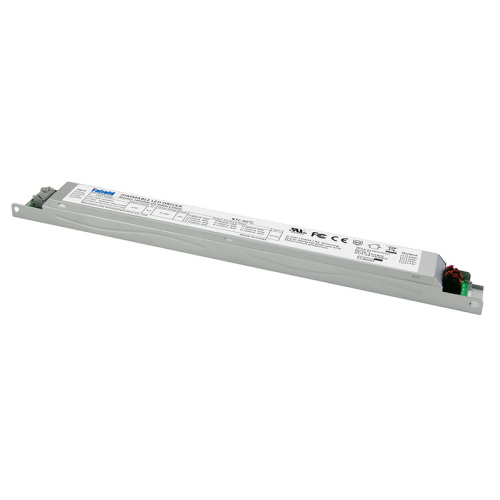

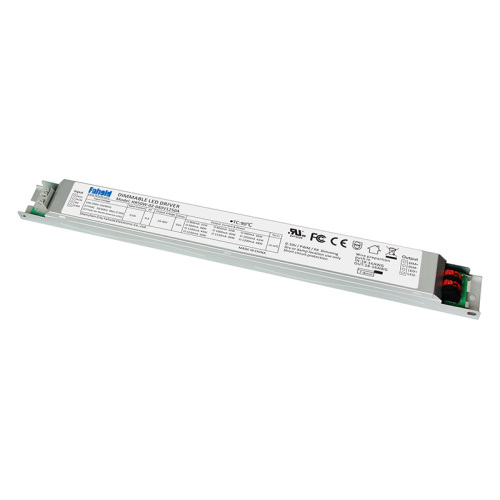

HR50W-02 LED Linear Lights Driver, designed specifically for indoor use(Linear light, troffer, track light), to operate general Linear Lighting Systems. Flicker free 0-10V dimming LED Driver 50W 1250mA, with wattage range of 30W to 50W ,UL,FCC,CE compliant, wide voltage output of non waterproof design. The units are fit for Linear lighting. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.
Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.
Features & Benefits
- High PFC
- Long slim shape
- Single channel output, output current level selectable.
- Wide range of input voltage 100VAC ~ 277VAC
- High efficiency up to 85%
- Built-in active PFC function
- 100% output dimming signal input, can be used as normal power supply
- Protections: Short circuit,over load, over voltage & over temperature protections
- Suitable for indoor LED lighting application
Product Specs:
Output voltage:25-40V
Max. Output wattage: 50W
Max. Output Current: 1250mA
Dimensions:278x30x20mm
Efficiency:87%
Electronic Led Dimmer
Encironment/IP Rating: indoor/IP20
Flicker free
Max. Input voltage:240/277V
Certificate:UL,FCC,CE
H50W-02, Flicker free 0-10V dimming, Utra Slim Driver, Desigen for high lumen Linear lights, Europe market application. Energy saving driver. Its housing was made out of Hard shell, independent design for the output connection structure, suitable for Europe market.
