LED Linear Luminaire Driver AC DC Converter
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs |
| Supply Ability: | 200000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/2015 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,HongKong |
Description:

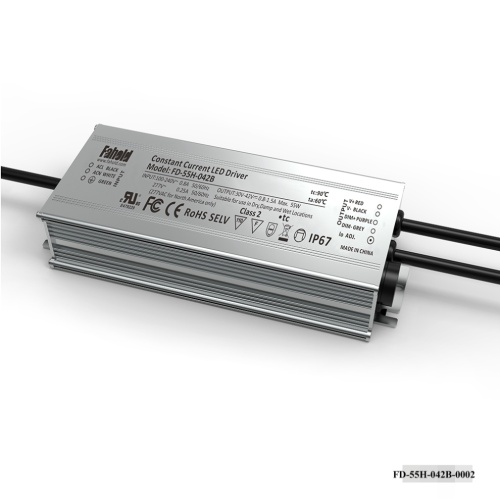

The FD-55H-xxxB Series operate from a 90 ~ 305 Vac input range. These units will provide up to a 1.3A of output current and a maximum output voltage of 54 V for 55 W maximum output power. They are designed to be highly efficient and highly reliable. The standard features include dimming control, lightning protection, over voltage protection, short circuit protection, and over temperature protection.
Featutre:
High Efficiency (Up to 91%)
Active Power Factor Correction (Typically 0.99)
Constant Current Output
Dimming Control
Lightning Protection
Waterproof (IP67)
All-Round Protection: OVP, SCP, OTP
Complies with UL8750 & EN61347 Safety Regulations
Application:
moving signs
Backlighting
LED-based decorative lighting
LED-based architectural lighting
LED stage and theater lighting
LED electronic displays
Specification:
Input Voltage 90 ~ 305 Vac
Input Frequency 47 ~ 63Hz
Input Current Max 1.3A/100Vac 0.6A/220Vac, full load
Inrush Current 50A/230Vac 25°C, cold start
Leakage Current 1 mA at 277Vac 50Hz input
Power Factor 0.99/110Vac 0.96/220Vac
Ripple & Noise 3% of Voltage
Line Regulation 5%
Load Regulation 5%
Dimming Control Operation via potentiometer or from an input signal of 1 – 10 Vdc
Four recommended implementations
Over Voltage Protection Latch mode. Power supply shall return to normal operation once powered off/on.
Over Temperature Protection 110°C
Short Circuit Protection No damage shall occur when any output operating in a short circuit condition.
The power supply shall auto-recover when the fault condition is removed.
Operating Temperature -35°C ~ +70°C
Operating Humidity 10% to 100% RH
Storage Temperature, Humidity -40°C ~ +85°C, 5% to 100% RH
Safety Standards EN 61347-1, EN61347-2-13, UL8750
Compliance to UL1310 Class 2, UL1012 UL935, CAN/CSA-C22.2 No. 0,
CSA-C22.2 No. 107.1, CSA-C22.2 No. 250.0
EMC Compliance to EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547,
EN 61000-4-2, 3, 4, 6, 8, 1-1
MTBF 350,000 hours 110Vac input, 80% load and 25°C ambient temperature (MIL-HDBK-217F)
Lifetime 100,000 hours at 45°C ambient temperature
