36W IP65 LED Driver for wall light
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Delivery Time:
- 3 - 20 days Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200 thousands pcs per month |
| Supply Ability: | 200000pcs per month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | UL, FCC, CE |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Hongkong |

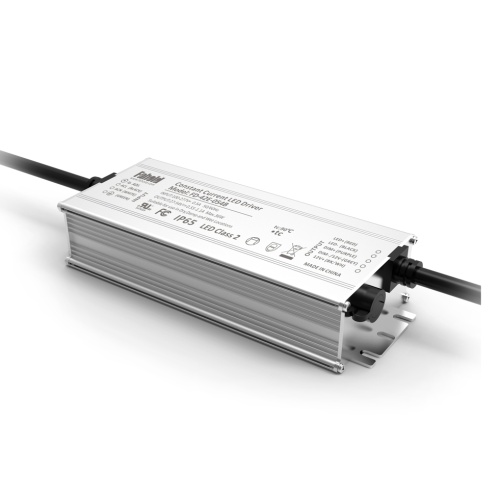

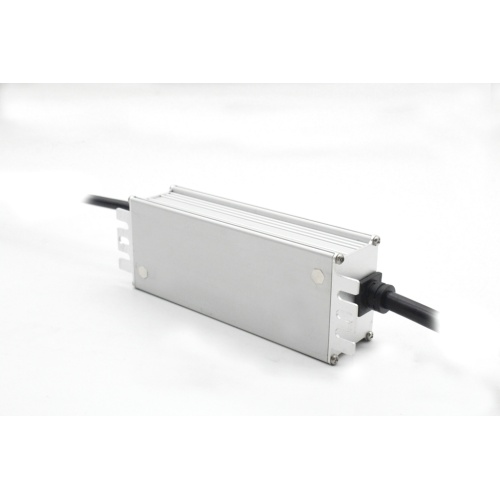

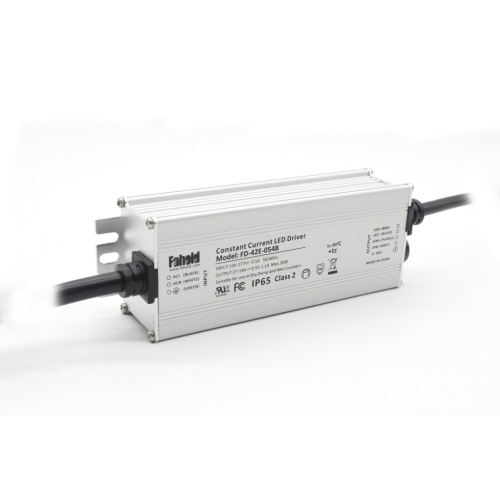

In a Road light family, there are a small power family like 30W 40W, mostly applied in a small town road lighting system. FD-42E-054B is a 36W AC/DC LED driver featuring the constant Current mode output. it operates from 100∼305VAC. The High Efficiency up to 86%, The entire Series is able to operate between -40°C ∼ 60°C wide case temperature range with air convection. The design of Aluminum housing allows this series to fit both indoor and applications. FD-xxxE is Equipped with various function options, such as 0-10V dimming methodologies, so as to provide the optimal design flexibility for LED Lighting System
Constant Current output
Aluminum housing design with functional Ground
Built-in active PFC Function
Class 2 Power Unit
No Load/Standby Power Consumption <2W
For Indoor or Outdoor installations
Output Adjustable via Potentiometer
Typical Lifetime>50000 hours
5 Years Warranty
Applications
LED Street Lighting
LED Architectural Lighting
LED bay Lighting
LED Flood Lighting
LED Grow lighting
Specifications
|
Input characteristics |
||
|
Input Voltage |
100-277Vac |
|
|
Input Frequency |
50/60Hz |
|
|
Input Current (Typ.) |
0.45A @100-277 Vac , 100% load |
|
|
No load Voltage |
2Wmax |
|
|
Inrush Current |
60Amax. @ 347Vac, 25℃ |
|
|
Power factor（Typ.） |
PF>0.95 @ 120Vac, PF>0.90 @ 277Vac,100% load, |
|
|
THD |
THD<20% @ 100-277 Vac, 100% load |
|
|
Output characteristics |
||
|
Current accuracy |
± 5% I0 |
|
|
No load Voltage |
Vout 63V max |
|
|
Efficiency |
≥88% @100 Vac, ≥92% @ 277 Vac |
|
|
Output Voltage |
27-54V ; |
|
|
Output current |
0.55-1.1A |
|
|
Line Regulation |
3%Io |
|
|
Load Regulation |
3%Io |
|
|
Turn On Delay Time |
Under normal conditions, the maximum delay time is 3second |
|
|
|
||
|
Potentiometer current output range |
The minimum value:550mA; maximum value:1100mA; Remark: the total output power does not exceed 36W (actual output voltage * actual output current = power), otherwise, it can not be guaranteed. |
|
|
Please use the matching programmer to set the output current |
||
|
Protection functions |
||
|
Open circuit |
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed. |
|
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed. |
|
|
Environmental conditions |
||
|
Operating Temperature |
-40℃ to +60℃ |
|
|
Operating Relative |
10% to 90% RH, non-condensing |
|
|
Storage Temperature |
-40℃ to +85℃ |
|
|
Storage Relative Humidity |
10% to 90%RH, non-condensing（Sea level to 2,000 m） |
|
|
Vibration |
10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z. |
|
