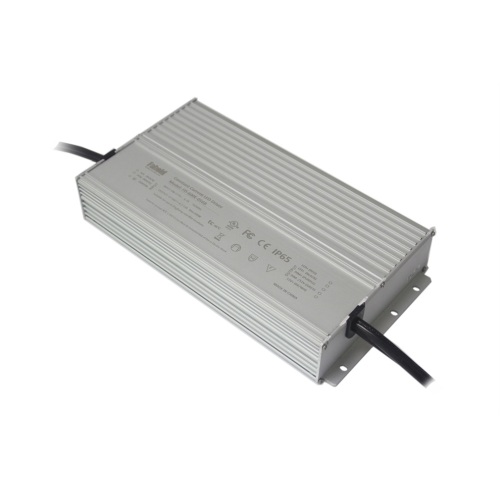

720W Compact LED Driver for LED Grow Light
- Payment Type:
- T/T
- Incoterm:
- FOB, EXW, FCA
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Sekou, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 200000PCS/Month |
| Supply Ability: | 30000pcs/month |
| Payment Type: | T/T |
| Incoterm: | FOB,EXW,FCA |
| Certificate: | ISO9001/UL/FCC |
| HS Code: | 850440 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Sekou,Shenzhen |
This Compact LED DRIVER is Design for LED Grow lighting
Fahold has announced the release of a family of dimmable 400 to 720W Power Supplies. The FD-720EXXX-056X series are IP65 rated Horticulture Lighting Power Supplies and it offer industry leading surge protection of 6kV line-to-line and 10kV line-to-earth.
Any LED design change which may be required in the future, involves mere programming of the LED driver to the newly required power. The LED driver incorporates unique control capabilities including: 0-10V analog dimming, full digital control with real time feedback and on-board dimming profile. The LED driver is field proven with more than 800,000 installed light points worldwide and is approved by leading OEM's being part of their Approval Vendor List.
Highlights & Features
- International AC input voltage with worldwide certified cable use
- Up to 94.0% efficiency
- 10kV common mode & 10kV differential mode surge immunity
- IEC/EN 61000-4-2, Level 4 Criteria A, 15kV air discharge, 8kV contact discharge
- IP65 mechanical design for indoor and outdoor applications
| Input Voltage | 100-277Vac |
| Input Frequency | 50/60Hz |
| Input Current (Typ.) |
6.8A @100-305 Vac , 100% load
|
| Output voltage |
27-56V
|
| Max output voltage | 56Vdc |
| Output current | 9-13.5A |
| Efficiency |
≥93% @ 120 Vac, ≥91% @ 277Vac
|
|
Insulation Resistance
|
I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH. |
| Operating Temperature | -40℃ to +60℃ |
| Operating Relative Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -40℃ to +75℃ |
| Life Time | ≥5Years H@277Vac, 100% load. See lifetime vs. Tc curve for the details |
| MTBF | ≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F) |
| Warranty | 5 years |
| Dimensions |
250*84*41mm(L*W*H)
|
| Weight | 3750g |
| Remark |
1. The parameters above including the power factor, THD, efficiency are all tested under the ambient temperature 25℃ and humidity 50%, AC input 230V and 90% output load. |
