75W Aluminum Case Led Driver for Street light
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- YanTian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200 Thousands Pcs/Month |
| Supply Ability: | 200000Pcs/Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | YanTian |
Product Description:

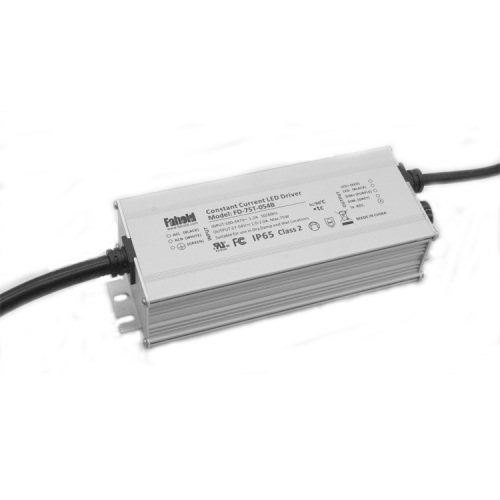

FD-75T-054 Led Driver is belong to Fahold's waterproof series.
Its case was made from aluminum,through potting inside and seal up the aluminum shell to achieve watertight function.This item is up to IP65, Fahold's other series can reach IP67.
Excellent design and consisting of good material & component ensure more than 5 years life time.
Feature:
****Constant current design.
***3 in 1 dimming mode:0-10V,PWM,RX.
**Short circuit, open circuit, over voltage protection.
*Support Auxiliary output 12V,200mA.
Technical Parameter
Commodity
75W Aluminum Case Led Driver for Street light
Item
Options:
Blank
B
Output
Current
DC Voltage
27V-54V
Rated power
75w
Current Accuracy
± 5% I0
R & N (Max)
800mVp-p
Channels
1
Input
Voltage Range
Frequency Range
50–60Hz
Efficiency(Typ)
Power Factor(Typ)
AC Current(Typ)
Leakage Current
Inrush current(Typ)
Protection
Short Circuit
Function
Dimming
1-10V dimming (Passive or active),PWM,RX.
Others
Dimension
G.W
611g
Packing
Putted in paper tray,then packed in carton.(Individual Packing Box for Sample)
Working temp.
FD-75T
Indicates that the current can be adjustable(basic model)
Means three-in-one dimming and adjustable current
C
Means non dimmable and output current unadjustable,
D
Means three-in-one dimming and unadjustable current
Z
Means Intelligent dimming
100VAC-347Vac
≥86% @ 100 Vac, ≥89% @ 347Vac
PF>0.9@ 100-347 Vac, 100% load
1A @100-347 Vac , 100% load
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage
Open circuit
When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed
Application:
Excellent waterproof function make our led driver remain perfect working in outdoor,our waterproof series led driver can use for led street light,led flood light, high bay lights etc outdoor occasion light.
