Waterproof Dimmable Led Street Light Driver
-
USD8.35≥50 Piece/Pieces
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 200 Thousands Pcs/Month |
| Supply Ability: | 200000Pcs/Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |

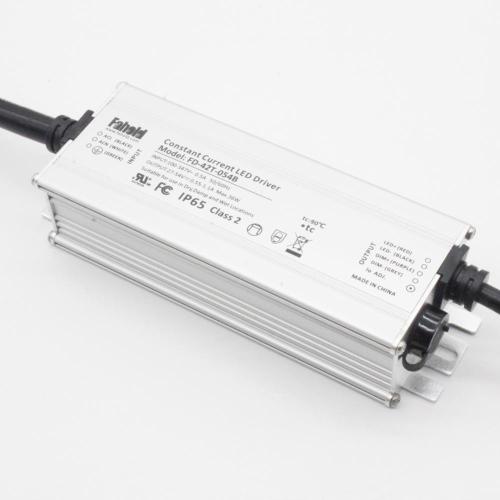

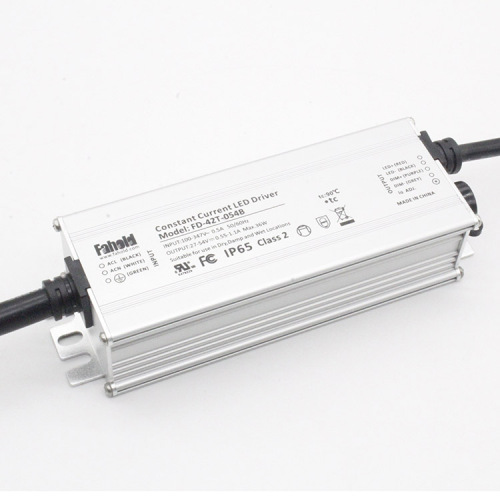

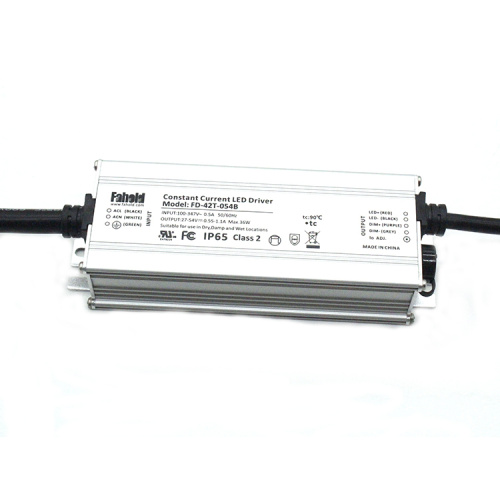

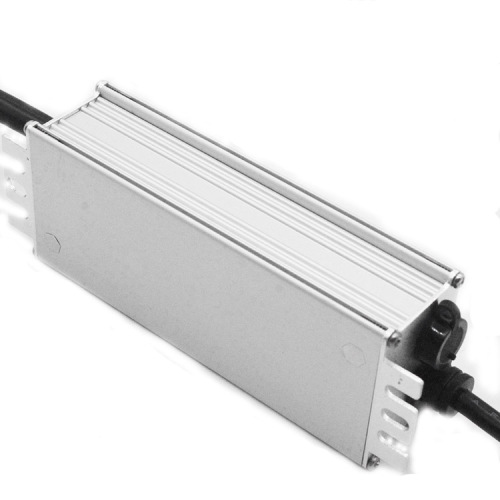

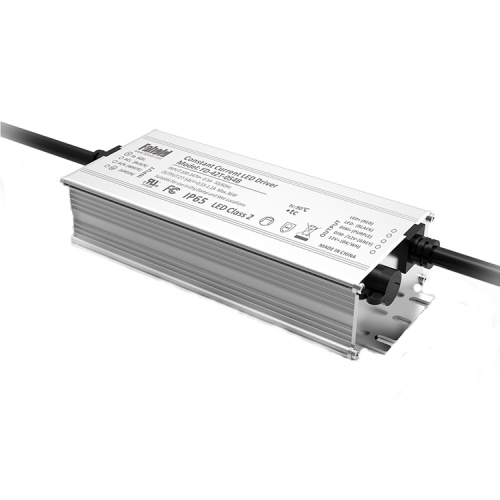

1. Waterproof Dimmable Led Street Light Driver
|
Commodity |
42W Constant Current Led Driver |
|
|
Item |
FD-42T-054B | |
|
Other options:
Blank,C,D,Z indicating that the output increases with different optional functions.
|
Blank |
Indicates that the current can be adjustable(basic model) |
| C | Means three-in-one dimming and fine-tuning current | |
| D | Means dimming unchanrged current | |
| Z | Means Intelligent dimming | |
|
Output |
Current |
0.55-1.1A
|
|
DC Voltage |
27V-54V |
|
|
Rated power |
42w |
|
|
Current Accuracy |
± 5% I0 |
|
|
R & N (Max) |
500mVp-p |
|
|
Channels |
1 |
|
|
Input |
Voltage Range |
100VAC-347Vac |
|
Frequency Range |
50–60Hz |
|
|
Efficiency(Typ) |
≥86% @ 100 Vac, ≥85% @ 347Vac | |
|
Power Factor(Typ) |
PF>0.9@ 347 Vac, 100% load | |
|
AC Current(Typ) |
0.45 A @100 Vac , 100% load | |
|
Leakage Current |
The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage | |
|
Inrush current(Typ) |
60Amax. @ 230Vac, 25℃
|
|
|
Protection
|
Short Circuit |
The input power shall decrease when the output rail short, the power supply shall be
self-recovery when the fault condition is removed
|
| Open circuit | When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed | |
|
Function |
Dimming |
1-10V dimming (Passive or active),PWM,RX.
Smoothly dimming(0-100%),can dim to off.
|
|
Others |
Dimension |
137(L) *48(W)*32(H)mm |
|
G.W |
370g |
|
|
Packing |
|
|
|
Working temp. |
-40℃ to +60℃
|
|
2. About Fahold
Fahold is a professional manufacturer and exporter of LED Driver. Fahold is focus on design and manufacture constant current led drivers and constant voltage led drivers with multiple dimming functions and also accept customize service. Our Factory are 5000 square meters and it’s located in Bao’an district, shenzhen, China.
We have Auto-production equipment and facilities to provide professional engineering and quality control through out all stages of products, which help to guarantee our customer’s satisfaction.Our factory were ISO9001 Certified, which showing our knowledgeable and reliable production team, and perfectable QC inspect system. Products has been passed UL, CE, SAA, TUV and Certified.Fahold has become an international brand and now recognized as the faithful partners and brand in outdoor led lighting application area. With 150 staffs, 20 engineers team, and two floors production line, we can have production capacity of 200 thousands pieces led driver per month.
Clients' demand is our principle objective, clients Satisfaction is our target, and clients development is our development. We will make great efforts to fulfill the needs of customers with quality and reasonable lead times.
