Farm vegatables pre-cooling machine vacuum cooler
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50 sets per month |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ISO |
| Transportation: | Ocean |
| Port: | Shenzhen |
|
SPECIFICATIONS FOR VACUUM COOLER
|
|||
|

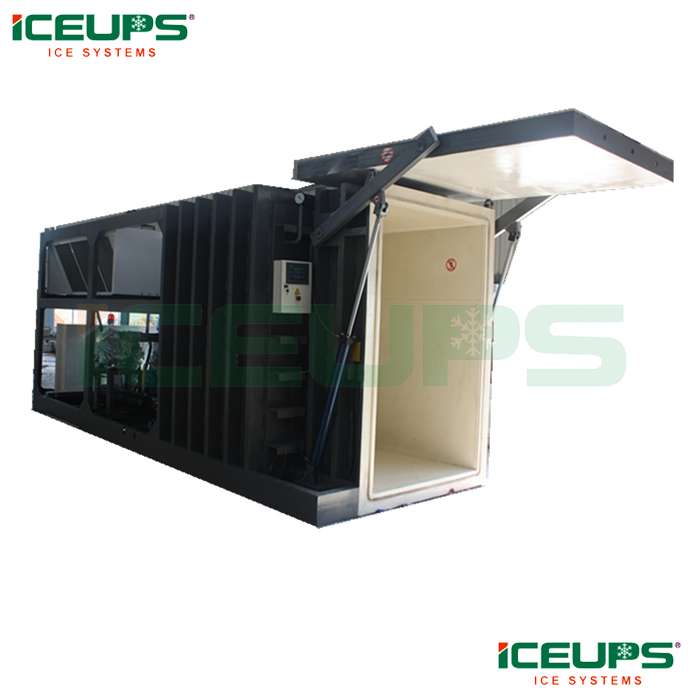

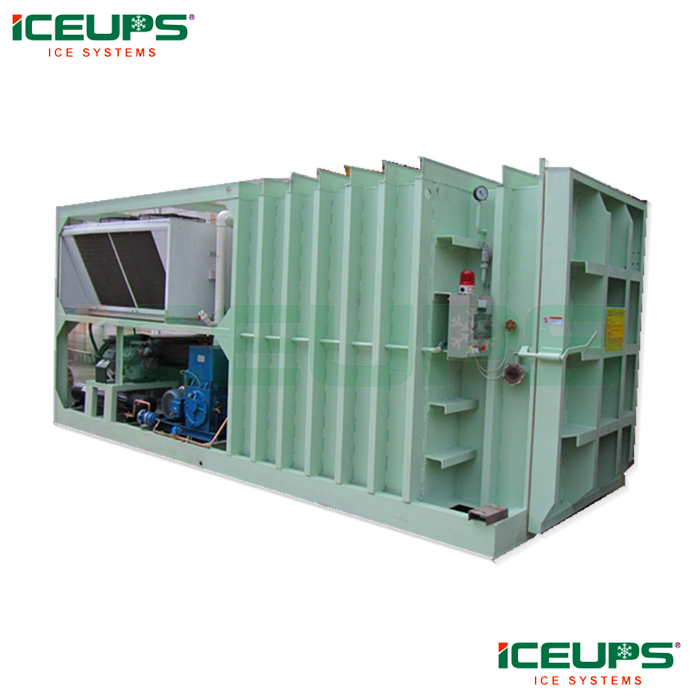

Vacuum cooler
|
Model
|
KMS-1P
|
1000kg/pallet
|
|
processing temperature
|
From 30°C to 2°C
|
20-30 Minutes
|
|
|
Vacuum chamer Dimensions
|
1500x2092x2200
|
mm
|
|
|
Main performance parameters
|
Refrigeration capacity
|
60
|
kw
|
|
Compressor power
|
20.7
|
kw
|
|
|
Machine power
|
31.2
|
kw
|
|
|
Operation system
|
power supply
|
380v/50hz/3p
|
or 220v,415v,480v
|
|
Refrigerant
|
R404a
|
or R22
|
|
|
Automatic control system
|
PLC
|
schneider/LS
|
|
Product Application of Vacuum Cooler
1.Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.
2.Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!
3.Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.
ICEUPS will design and offer the most suitable machine according to clients'requirements.
Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.
Door type of Vacuum Cooler Machine
1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.
