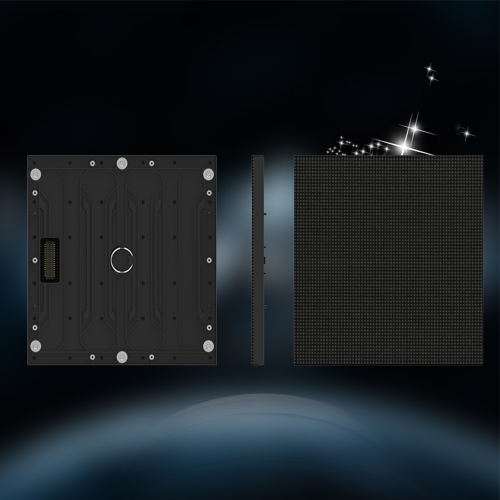

P1.875 Indoor HD LED Display Screen
The LED dot matrix module consists of a number of wafers to form a light emitting matrix, which is encapsulated in a plastic case with epoxy resin. Suitable for row and column scanning drive, easy to form high-density display, mostly used for indoor display. SMD LED light (or SMD LED) is the package of the LED light lamp in the form of welding. It can be used in indoor full-color display, can achieve single-point maintenance, and effectively overcome the mosaic phenomenon.
PJ series of HD led screen has lighter cabinet weight. Front& back maintenance function. Also with modular accessories, it is much convenience for Maintenance. Priva LED PJ series has pixel pith P1.56mm,P1.875mm, P2mm and P2.5mm for Led Video wall. This series of LED screen is widely used for meeting roon, controll romm, Showing room and convention center.
PJ series HD LED Screen has following features and function.
Features and benefits
1, lightweight, weighs 7 kg, installation up easily; ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
2, Support front & back maintenance. with modular accessaries.
3, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;
4, compatibility, one cabinet can be used for different pixel pitches. Easier to upgraded. One time investment for led cabinet only.
5, Safty package
6, Front access tool
7, Vivid picture effective
parameter:
<
Itmes
PJ1.56
Pixel Pitch（mm）
1.56 mm
Pixel Confguration
SMD 1010
Pixel Matrix per Panel（dots）
312 x 312 dots
Pixel Density（dots/m²）
422,500 dots/m²
Panel Dimension(W×H×D)
480 x 480 x 63mm
( 18.9”×18.9”×2.5”)
Panel Material
Die-casting Aluminum
Panel Weight（kg/panel）
5.5 kg/panel （12.1lb/panel ）
Color Depth（Bit）
14 bit
Refresh Rate（Hz）
≥2880Hz
Driver Method/scan
Scan 1/31
Brightness（nits）
600~800 nits, adjustable
Horizontal Viewing Angle（°）
160 °
Vertical Viewing Angle（°）
160 °
AC Power Input（V）
AC110V~ 220V ±10%
AC Power Frequency（Hz）
50 ~ 60 Hz
Max. Power（W/m²）
700 W/m²
Avg. Power（W/m²）
230 W/m²
Storage Temperature（℃ ）
-10℃ ~ 50℃
Operating Temperature（℃ ）
- 0℃ ~ 40℃
Storage/Operating Humidity（RH ）
10% ~ 90%RH
IP Rating（IP ）
P30 / IP30
Lifetime Typical Value（Hrs）
100,000 Hrs
Installation Type
Fix , Front installation
Maintenance Method
Front & Rear serviceable
Certifcations
TUV-CE，ETL

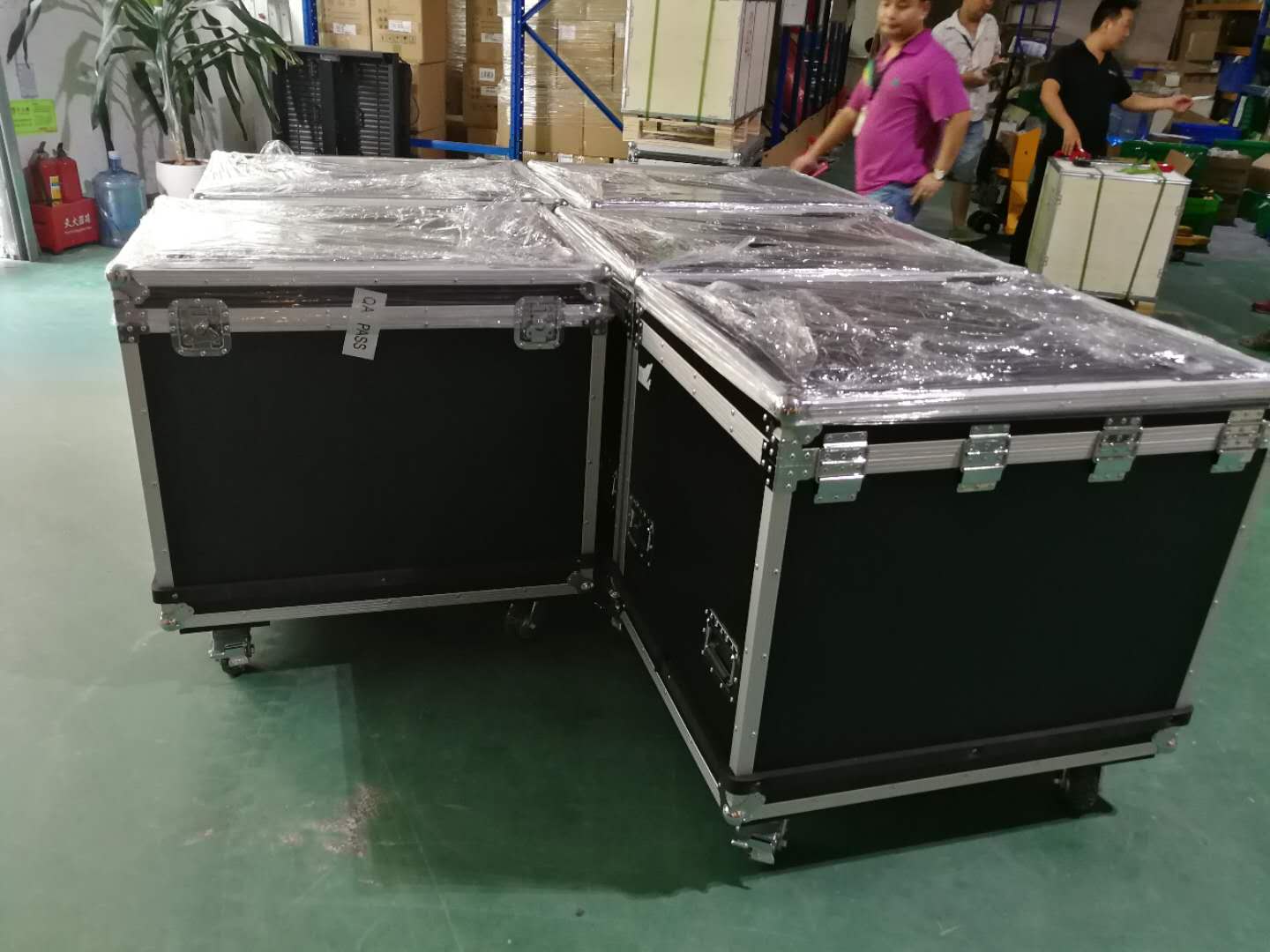

Flight case
Wooden case
