pH3.9 SMD Indoor Full Color Rental LED Display
Does the LED display have radiation? Radiation generally refers to the continuous emission of electromagnetic waves from a certain wave source, such as optical radiation, x-ray radiation, etc.LCD screens also need to emit light, and light waves are a type of electromagnetic waves, and radiation naturally exists.
LCD screen is not zero radiation.

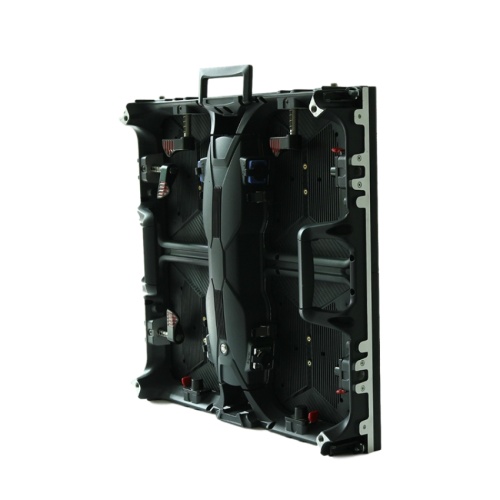

With die casting aluminum cabinet design, light, thin and fast installation are the main features of Rental LED display screen. Light weight cabinet , quick installation, dismantling and transportation, suitable for large size of rental and fixed installation applications. And processing adopts synchronous control system, an acceptable DVI, VGA, HDMI, S - video, compound, YUV video input signal, can broadcast video, graphic program at will, in real-time, synchronous, clear information dissemination way play all kinds of information. Color is clear, strong ability to adapt. Privaled's LED rental display Screen has the following advantages:
Lock design
Good heat dissipation
Seamless splicing
Great consistence
Product features and benefits
1, lightweight, weighs 7 kg, installation up easily;
2, ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;
3, high precision, mechanical processing precision is around 0.1 mm;
4, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;
5, reliable - strength, high hardness, good heat dissipation effect.
6, compatibility, one cabinet can be used for indoor and outdoor modules. One time investment for led cabinet body,
parameter:
| Model | Items | PH3.9 | PH4.8 |
| Unit Module | Model number | PR3.9O | PR4.8O |
| Pixel pitch | 3.9mm | 4.8mm | |
| Size of pixel | SMD1921 | SMD1921 | |
| Pixel configuration | 1R1G1B | 1R1G1B | |
| Size of block module | 250mm×250mm | 250mm×250mm | |
| Resolution of module | 64×64 | 52×52 | |
| Density | 65536dots/m² | 43264dots/m² | |
| Module power | 15w | 50w | |
| Cabinet | Cabinet material | Die casting Alu | Die casting Alu |
| Size of cabinet(l*h*t) | 500mm×500mm×70mm | ||
| Weight of cabinet | 8.5KG | 8.5KG | |
| Support hanging or not | Yes | Yes | |
|
Main Parameter |
Best viewing distance | >3m | >4m |
| Driving method | 1/16 scanning | 1/12 scanning | |
| Best viewing angle | ≤140° | ||
| Max power consumption | <950W/m² | <950W/m² | |
| Average power consumption | <450W/m² | <450W/m² | |
| Support front removeable or not | Yes | Yes | |
| Colors | >16.7M | ||
| Gray scale | 16bits | ||
| Color temperature | 6500K | ||
| Control method | Synchronization | ||
| Driving device | Constant current | ||
| Frame frequency | 60Hz | ||
| Refresh frequency | 1000-4800Hz | ||
| Brightness | >6000cd/m² | >6000cd/m² | |
| Working voltage | AC100/220V 50/60HZ | ||
| Working temperature | - 20℃~+50℃ | ||
| Out-of control point | <0.0001 | ||
| Brightness Control | 256 grade | ||
| IP grade | IP65/55 | ||
| Mtbf | 10,000Hours | ||
| Life span | 100,000Hours | ||
Package: Wooden case/ flight case 5 Cabinets in 1
