P50 outdoor led grille curtain display
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 4000m2/month |
| Supply Ability: | 40000m2/year |
| Certificate: | ISO2004 |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou |
Priva LED grille curtain display is getting more and more popular for building lighting and advertising. Why the Outdoor grille curtain display is replacing the lighting instrument and How much do you know about the LED Stip curtain display, LED grid screen or LED Grille screen? As the name shows, they are the same kind of light to form a grille-like display which aretransparent and have light weight. As its shape is hollow, grid format, so it is also called Led Display Media Facade,LED mesh display, Led curtain display etc. This type of LED Priva Media Facade is mainly used for outdoor building walls, glass curtain wall, the top of the building, sightseeing elevators.
LED Screen Name :P50 Outdoor Grille curtain series

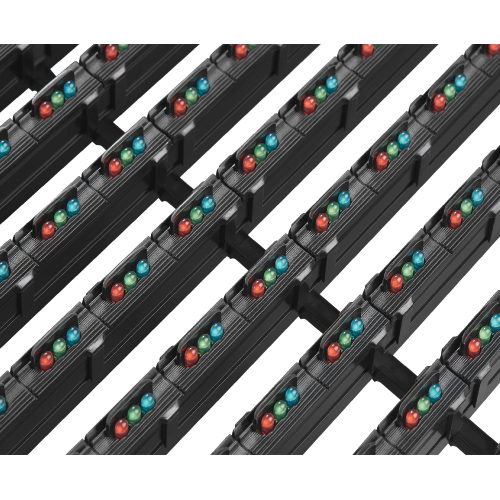

LED Class: DIP RGB
Pixel pitch:Horizontal:25mm,vertial:50mm (The standard design is Horizontal strip. Vertial strip is also available)
Cabinet Size: 1500mm(w) X 500mm(h) Cabinet size could be customized based on project requirement
Led display curtain Features
1, Led curtain display with High Water-Proof grade and Transparency rate(transparency up to 72%)

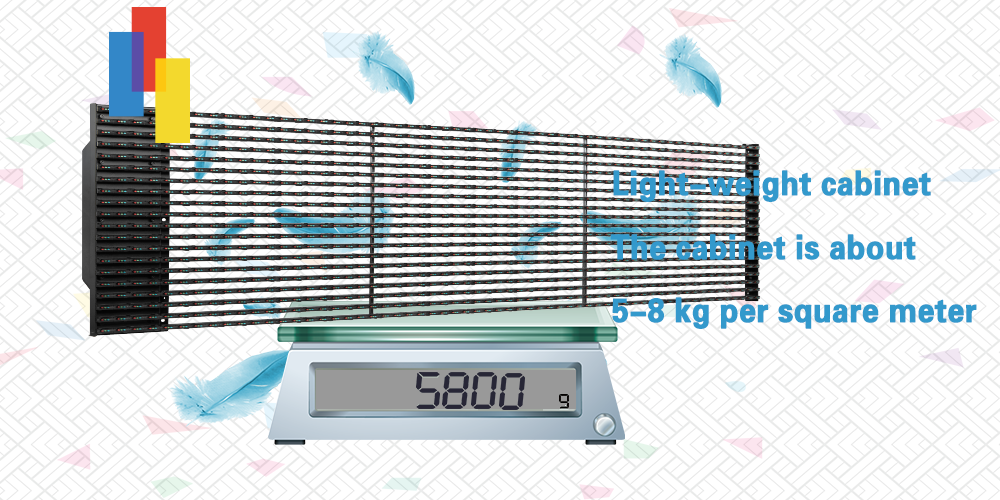

2,P41 Led curtain display with Light-weight cabinet (5-8 kg per square meter)
3, P41 Led curtain display High brightness
8000nits for P25, could be used absolutely for outdoor under strong sunshine.

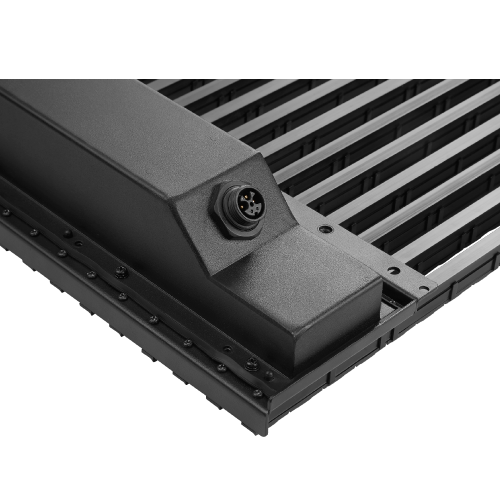

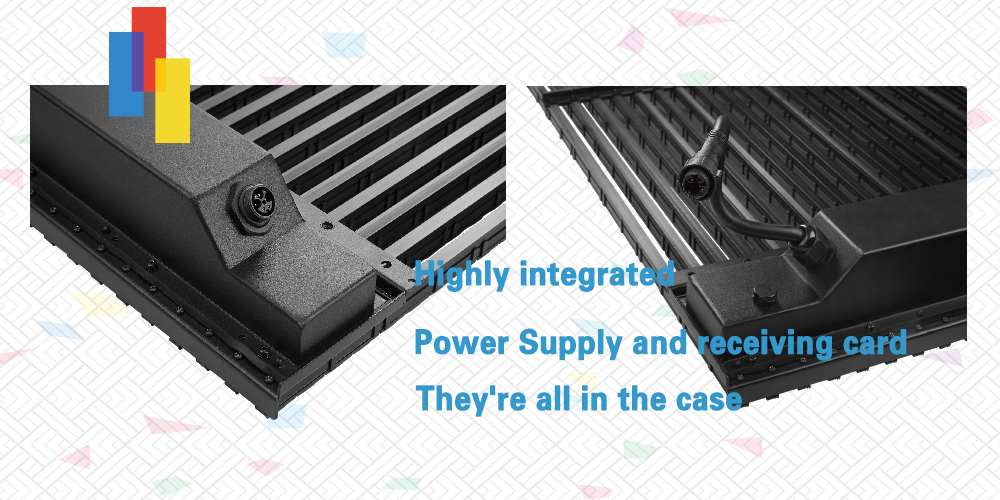

4, Integrated cable design, enhancing the stability of led screen and installation time.
5, P41 Led curtain display Fast & easy installation
No need steel structure, No need air conditionor. Solid and simple assemble style, make installation and maintenance quick and easy.
Application led curtain sreen,led display grille curtain,outdoor LED Strip curtain display series are widely used for building facade, behind of glass wall, in front of glass wall, led billboard& signs and on top of building.
parameter:
<
| Model | Items | PH25/50 |
| Unit Module | Model number | PC-50Ⅱ |
| Pixel pitch | 25/50mm | |
| Size of pixel | DIP346 | |
| Pixel configuration | 1R1G1B | |
| Size of block module | 1500MM*10MM | |
| Resolution of module | 60*1 | |
| Module power | 18W | |
| Density | 800dot/m² | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h) | 1500mm*500mm*83mm | |
| Weight of cabinet | 5.8kg | |
| Support hanging or not | No | |
| Main Parameter | Best viewing distance | >50m |
| Max power consumption | <240W/m² | |
| Brightness | 5000cd/m² | |
| Transparency | 80% | |
| Driving method | Static Scanning | |
| Refresh frequency | >2000HZ | |
| Best viewing angle | ≤140° | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Frame frequency | 60HZ | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | -20℃-50℃±10% | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| IP grade | IP65 | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
Package information:
Wooden case 1 for 10 led strip curtain cabinets.
Company view
Led curtain display Package information:
Wooden case 1 for 10 led strip curtain cabinets.
