P2.6Indoor HD led display 500*500 series
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000m2/month |
| Supply Ability: | 20000m2/month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | ISO2004 |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou |
What does a Led stage rental display requires
1, Visual effect. Piva LED stage rental screens are always under the high-definition camera`s test, the refresh and color depth requirements is stringent. So the configuration is higher.

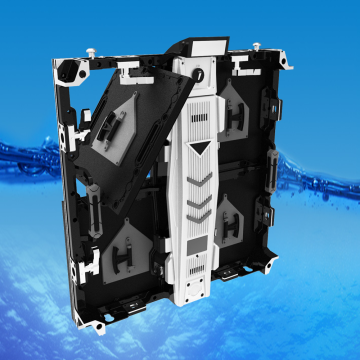

2, Cabinet structure and installation. Led Displays for Stage Rental, it is always installed dismantled and transported frequently , so the cabinet structure need to be easy for installation, demolition and light weight for transportation . So the rental usually uses die-cast aluminum cabinet , thin structure , high stability, more convenient to install and dismantle at any time suitable for concerts, stage events.
Priva Led PR series indoor rental led displays are professional products for rental application. With rich experience in LED display Industry, Priva LED Display for Stage Event will meet customer`s variety needs.
Features and benefits
1, lightweight, weighs 7 kg, installation up easily;
2,
ultra-thin, cabinet body is made of die casting aluminum, high
strength, high tenacity, high precision which is not easy
deformation during transportation and working;
3, high precision, mechanical processing precision is around 0.1 mm;
4, fast locking mechanism is used to connect cabinet up and down, left and right, 10 seconds to complete the installation of an enclosure, high precision installation;
5, reliable - strength, high hardness, good heat dissipation effect.
6, compatibility, one cabinet can be used for indoor and outdoor modules. One time investment for led cabinet body,
parameter:
<
<
| Itmes | PRC-2.6 | PCLT-3.9 |
| Pixel Pitch(mm) | 2.66 mm | 3.91mm |
| Pixel Confguration | SMD 2020 | SMD 2020 |
| Pixel Matrix per Panel(dots) | 192x 192 dots | 128 x 128 dots |
| Pixel Density(dots/m²) | 147,456 dots/m² | 65536 dots/m² |
| Panel Dimension(W×H×D) | 500 x 500 x 82.5mm | 500 x 500 x 82.5mm |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight(kg/panel) | 6.8 kg/panel | 6.8 kg/panel |
| Color Depth(Bit) | 14 bit | 14 bit |
| Refresh Rate(Hz) | ≥1920 | ≥1920 |
| Driver Method/scan | Scan 1/32 | Scan 1/16 |
| Brightness(nits) | 1100 nits, adjustable | 1100 nits, adjustable |
| Horizontal Viewing Angle(°) | 140 ° | 140 ° |
| Vertical Viewing Angle(°) | 140 ° | 140 ° |
| AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
| AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz |
| Max. Power(W/m²) | 460W/m² | 460W/m² |
| Avg. Power(W/m²) | 160 W/m² | 160 W/m² |
| Storage Temperature(℃ ) | -0℃ - 40℃ | -0℃ - 40℃ |
| Operating Temperature(℃ ) | -0℃ - 40℃ | -0℃ - 40℃ |
| Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH |
| IP Rating(IP ) | iP40 / IP40 | iP40 / IP40 |
| Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs |
| Installation Type | Fix , Front installation | Fix , Front installation |
| Maintenance Method | Front & Rear serviceable | Front & Rear serviceable |
| Certifcations | TUV-CE,ETL | TUV-CE,ETL |

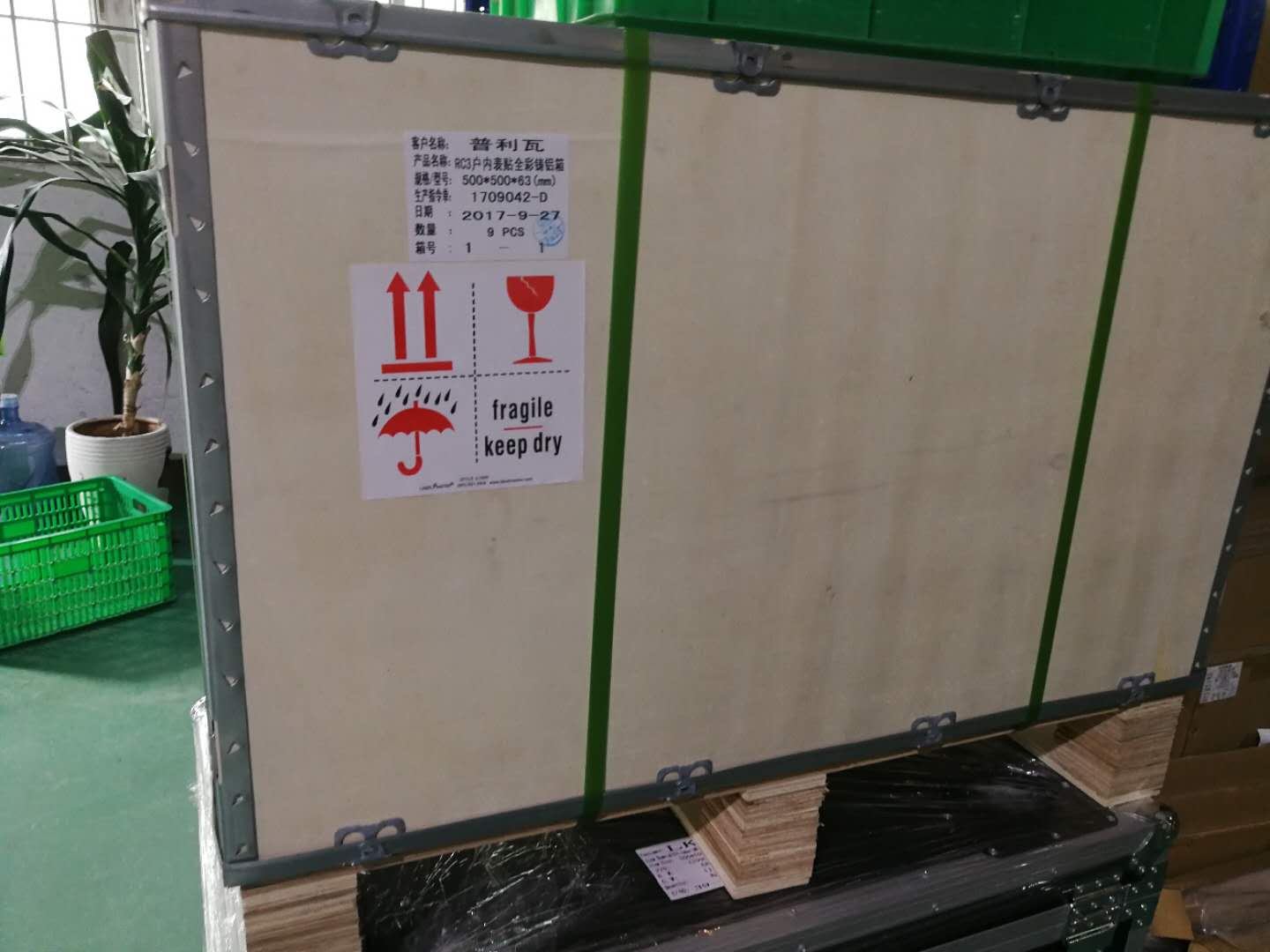

Package: Wooden case/ flight case 8 Cabinets in 1
Flight case For rental
Wooden case

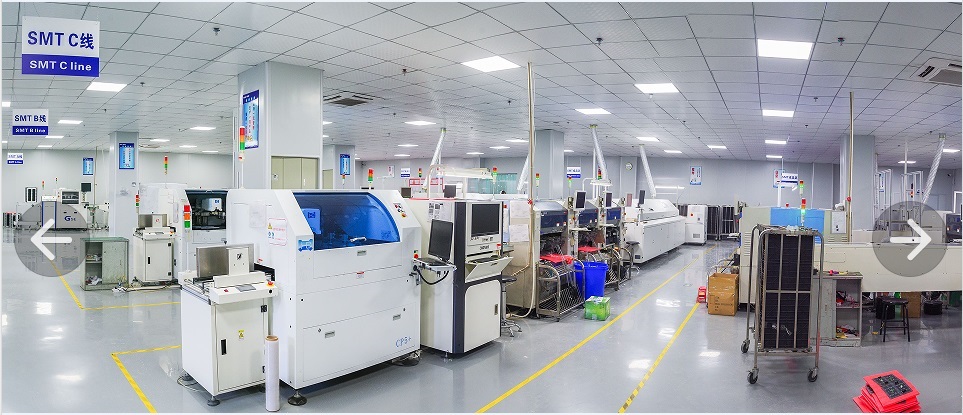

Company view
