P16 Transparent Glass Led Display
What is the method of setting the display switching mode of LED full color screen? First, enter the parameter settings of the control card or control card hardware settings. Second, if there is a wizard after entering the synchronization, you can complete the debugging of the large screen through the wizard. 3. If it is an asynchronous screen, you can choose network communication or serial communication according to the communication method used. Take a look at what fraction of your display is scanned and how long the screen is and how high it is.
The LED glass display Screen is high brightness SMD modular products , which opens up a new set of possibilities for lighting and glass advertising. Designed with features of thinness, seeing through, lightweight and high brightness, it provides easy and fast implement with friendly hardware and software interfaces.
With high definition, the extremely bright units of the LED glass wall and smallest pixel pitch as 3.1mm offers more possibilities that make the image and video bright and brilliant enough even in day time. As the born of this LED Glass Video Display for buidling, it brings more functions and possibilities for Transpanrent Led Display.
LED Screen Name: P16 Outdoor SMD glass transparent led display screen
LED Class: Integrated SMD 1921
Pixel pitch: 16/ 16mm
Cabinet Size: 1000mm(w) X 500mm(h) Cabinet size could be customized based on
Product features and benifits of LED glass display
Unparalleled transparency
At more than 70% transparency, Priva`s Glass led displays become undetectable when viewing from five meters and beyond.
High resolution
The displays` high resolution allows for incredible graphics and motion effects that combine with transparency in ways that give artists and designers new possibilities for their creative vision.
Light weight
Privaled`s glass led products are weighted approximately 14kg/m2 on average The super light weight make them convenient and cost effective for transportation and installation.
High Luminance
With
up to 7000nit in brightness, make sure the led glass led displays are
visible in bright day light. The high brightness make them ideal for
outdoor advertising or media architectural spaces.
Outstanding appearance
Modular design, choose resolution
Standard size can be used to assemble displays in various sizes, using the right resolution for the job.
Transparent LED modules and simple support frames create clean and unobtrusive displays.

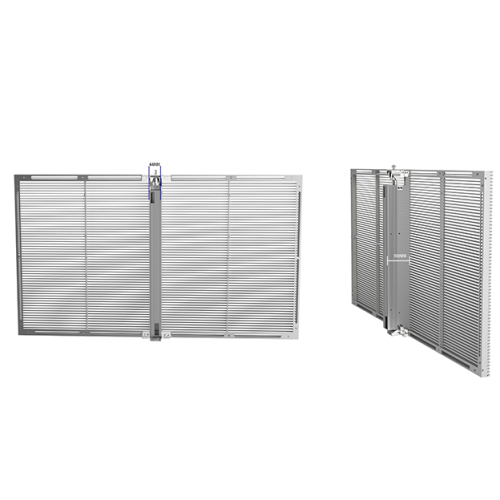

LED glass video display cabinets have a dimension of 1000mm in width x 500mm in height, and a depth of 30mm. Below you can find the photo with size of the LED glass video screen cabinet. It is important also the size of cabinet could be customized based project requirement.
parameter:
Product specification
Product model
GR16
Pixel Pitch
15.6*15.6
Scan Method
static
Module Resolution
64dots x 32dots
Module Dots
2048 dots
Module Size (width x height)
1000mm*500mm
Resolution (dot/㎡)
4096 dots
Max. Power (W/㎡)
800 watts
Ave. Power (W/㎡)
400 watts
Module Raw Material
aluminum
Brightness
5500cd/㎡
View Angle
(H)120°,(V)120°
Minimal Viewing Distance
≥16M
Gray Scale
14bit
Color
10bit
Refresh Rate
3840Hz
Repetition Frequency
60HZ
Input Voltage
100VAC~240VAC
Packing Way
wooden/air Cases
Transparency
84%
Life Span
≥100,000 hours
IP Grade
IP20
Working Temperature
﹣10℃~40℃
Weight
12kg/sqm
Control System
Nova/Mooncell
Pixel Configuration
Pixel Configuration
1R1G1B
Nation Star
SMD 3535
Application of LED Glass curtain display screen
This type of Transpanrent led display is also widely used for interior of glass wall , stage events, presentations, full color demos, and window sign which need see through
LED Glass curtain display screen For 4S store
LED Glass curtain display screen for Building facade
LED Glass curtain display screen for stage rental
