P1.923 Indoor High definition led display screen

With the development of times, SMD technology is becoming more and more mature. With small pixel pitch between modules, encapsulation technology and smaller size of led diodes, it is getting the possibility for small pixel pitch led display video wall. Hence, even in a shortest distance, clear resolutions, images, content in motion, text format and others are provided by Indoor Narrow Pitch Led Video Wall Display Screen.

The design of Priva Narrow Pixel Pitch  Led Video Wall Display Screen is used for indoor applications. The main sites of Indoor UHD Led Video Wall Display Screen are retail stores, religious places, trade shows or expos, TV studio, Monitoring room, airports, corporate lobbies, hotels, malls, meeting room, restaurants, trade shows or expos etc.

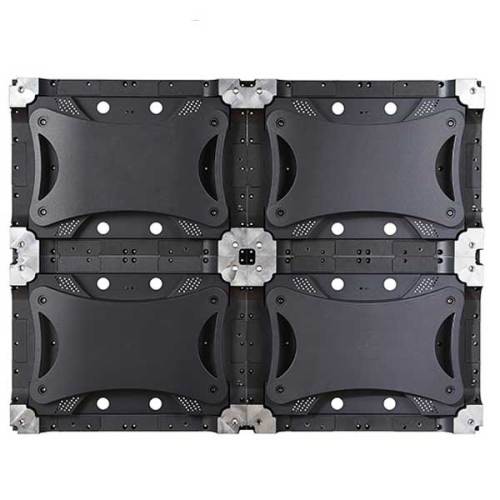

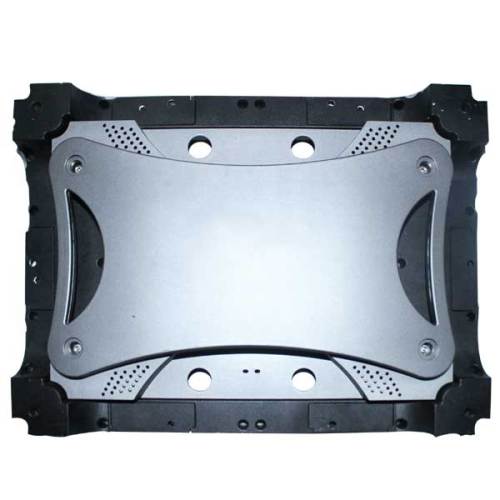

1,High-precision die-cast aluminum cabinet, seamless unit box, unique design for both

   front and back maintenance.

2.Light and strong cabinet, with quick locate  handle lock can be quickly and easily

   assembled in various ways, suitable for variety of occasions, meet different customer

   requirements for a variety of applications.

3.140-degree viewing angle assure the screen has wider view area, meet various rent

    environment and requirements.

4.Sophisticated materials for led lamp and IC, uniform screen, real and natural color, high

    grey scale, high refresh rate, ensure the amazing photographic effects

Black LED's offer high contrast ratios and sharp image quality

Contrast Ratio- 5000:1

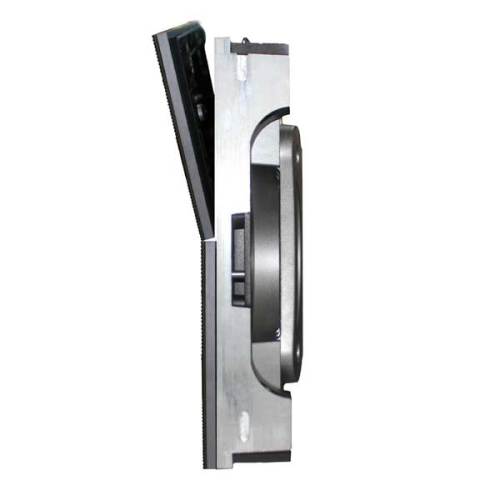

5, Back& front installation and maintenance

Easy to get 16:9 ratio with cabinet size 400mmx300mm

Perfect display effect

Could easily get FHD and 4K display

Seamless assemblying between cabinets

Main Parameter

• <

  Model	Plh-1.92
  Pixel pitch(mm)	1.923
  Pixel Configuration	SMD1010
  Pixel density(dots/m2)	270400
  Module resolution(W×H)	104×156
  Module size (mm)	200(W)×300(H)
  Module weight (kg)	0.4
  Maximum power consumption of the module(W)	40
  Module of cabinet (W×H)	2×1
  Cabinet resolution(W×H)	208×156
  Cabinet size (mm)	400(W)×300(H)×66(D)
  Cabinet area(m2)	0.12
  Cabinet weight (kg)	4.6
  Cabinet level up degree(mm	≤0.2
  Maintenance mode	Front/Rear
  Cabinet raw material	Die-casting aluminum
  Single-point brightness correction	YES
  Single - point color correction	YES
  White Balance Brightness (nits)	≥800(6500K)
  Color Temperature (K)	3200-9300 (adjustable)
  Viewing Angle (Horizontal / Vertical)	160/160
  Deviation of center distance of light - emitting	<3%
  Brightness / chromaticity uniformity	≥97%
  Contrast	4000:01:00
  Peak power consumption (W / m2)	800
  Average power consumption (W / m2)	250
  Power supply requirements	AC90~264V,frequency 47-63(Hz)
  Frame rate (Hz)	50&60
  Drive mode	Constant drive,1/26
  Grayscale level	65536
  Refresh rate (Hz)	≥3840
  Number of color processing bits	16bit
  Video playback capabilities	2KHD,4KHD
  Operating temperature / humidity range (℃ / RH)	-20 – 60  / 10%-85%RH
  Storage temperature / humidity range (℃ / RH)	-20 – 60  / 10%-85%RH
  Applicable standards	CCC,TUV-CE,ETL
