SMD Automotive Can Bus Ferrite Inductor Coil
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001;IATF16949 |
| Transportation: | Air |

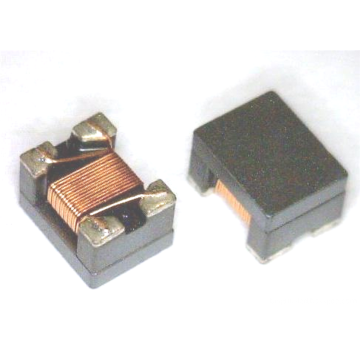

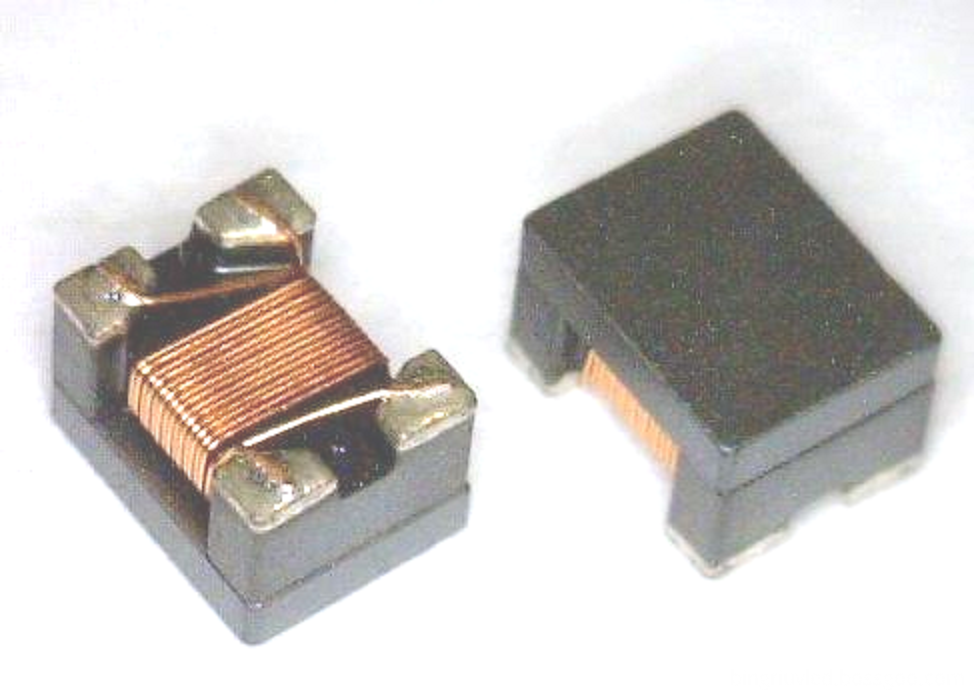

AEC-Q200 SMD Common Mode Coil For Can Bus System
Size: 3.2*2.5*2.2
Inductance: 11uH ~ 100uH
Impedance : 550 ~ 5100 ohm
IDC : 150mA ~ 300mA
Automotive inductors Ethernet, Can-Bus, FlexRay (CMC3225/4532-(AC/AE)series)
Binri (CMC3225/4532-(AC/AE)series) common-mode inductors for vehicles, perfect vehicle controllers, local area network Can-Bus solutions and are widely used in car networking. CMC3225/4532-(AC/AE)series automotive common mode inductor series, mainly used in automotive network applications, such as Ethernet, FlexRay and Can-Bus. Of course, Ethernet is already a network protocol for computer peripherals, communication equipment, and multimedia.
As everyone knows, the higher the noise attenuation value, the better the performance of its common mode inductor. It uses the latest winding technology and adopts high-demand ferrite cores to achieve the most effective noise suppression design. It has high common mode impedance in the noise band and low differential mode impedance in the signal band. The low differential mode impedance with high coupling coefficient makes high-speed signals almost without distortion.
Common mode inductors for vehicles (CMC3225/4532-(AC/AE) series) have an ultra-thin thickness of 2.8mm, in order to reduce volume and cost; five inductance values for easy selection; low impedance coils and strict tolerances, Can be customized according to requirements. Compatible with the working temperature required by automobiles –40°C to +125°C.
In addition, we can provide customized products according to requirements, and we can also produce inductors beyond the existing specifications. Compatible with TDK, Murata, Taiyo and Vishay common mode inductors. Products comply with RoHS, lead-free soldering technology and 100% lead-free, fully satisfying customers and environmental protection. Contact our business department for more detailed information.
In addition, our company also sells UVC Lights, UVC LED, UV Germicidal Lamps and LED Packages, welcome to consult.
