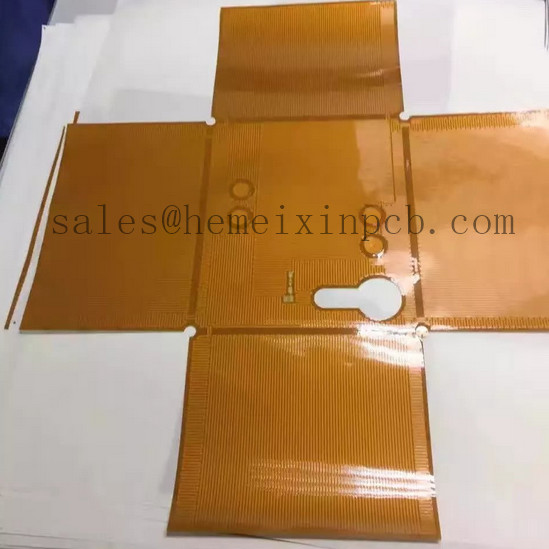

Prototype Polyimide Flexible pcb

Polyimide Flexible pcbs are light weight, low profile, small outline cables designed to satisfy high density cabling applications. Their distinguishing factors include repeated dynamic flexing and the ability to fold into nearly any shape, evenly distributing stress especially when compared to traditional cabling.

You now have a cost effective alternative to flat cable and expensive connector integration approaches: multi-layer flexible printed circuits where each layer is produced using adhesive and adhesiveless type polyimide (PI) film substrates with copper trace thicknesses ranging from 18um to 140um. Your design can be rendered into multilayer stackups that include single and multiple air gaps for conformal installations, conventional plated through hole (PTH) plating, plus coverlay and solder mask circuit protection.
