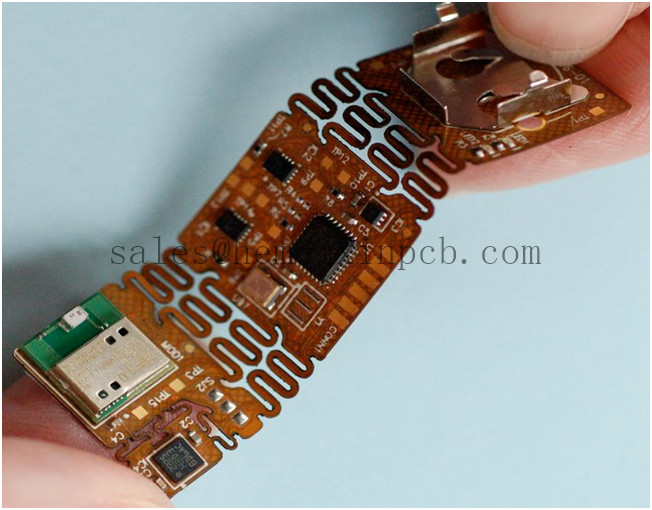

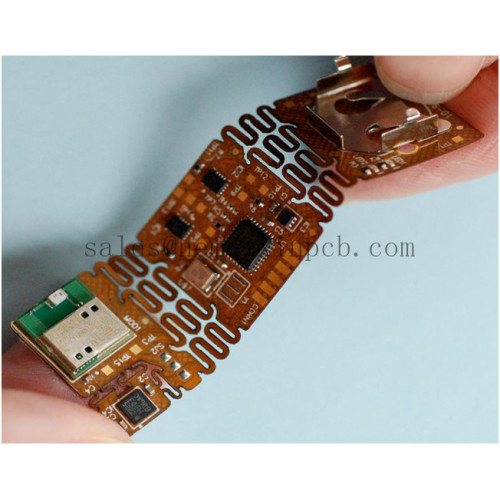

Prototype flex circuits assembly

Flexible PCBs and Microvia flex circuits assembly are widely used in everyday electronics such as portable electronic devices and small/miniature devices where weight reduction and maximum use of 3D spaces is required. Common applications for flexible PCBs include consumer electronics, medical, industrial, aerospace, military and transportation electronics.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
