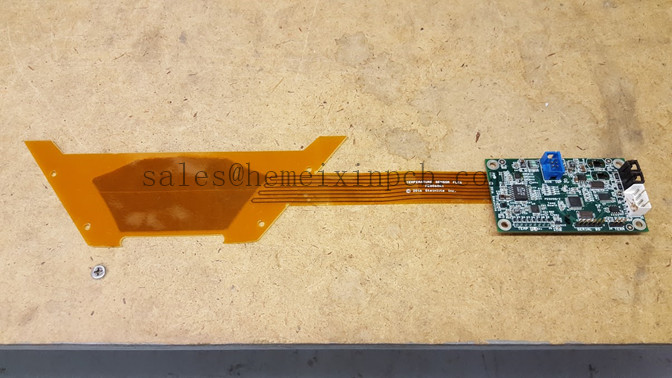

Prototype rigid flex assembly

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the Flex Rigid PCB assembly have completely different handling, etching and soldering processes than rigid FR4 boards.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
