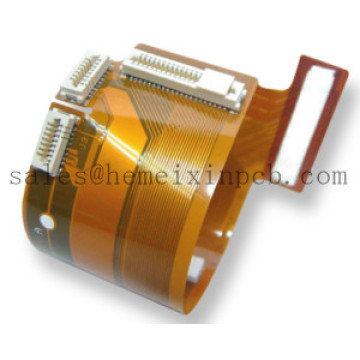

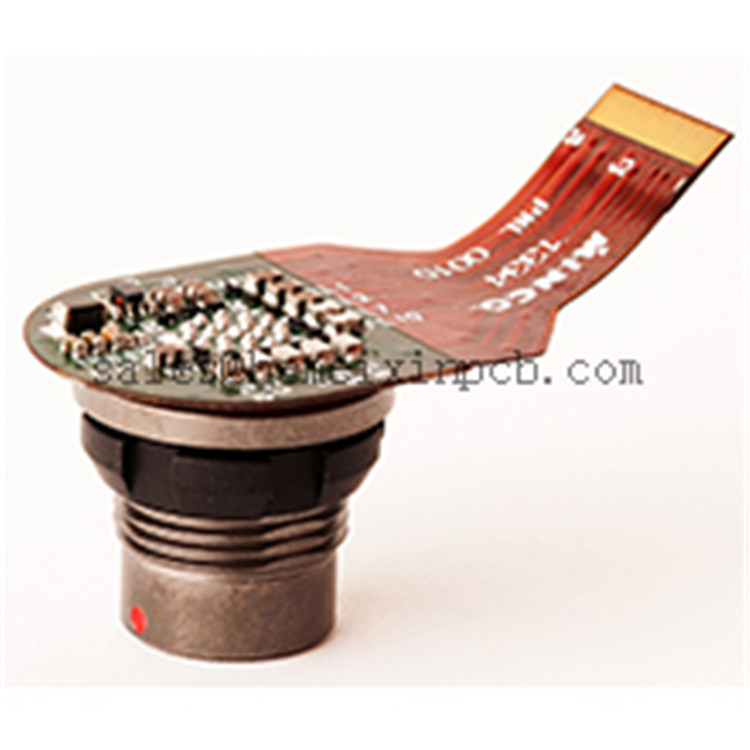

Flex Printed Circuits assembly

We offer PCB assembly of single or multi-layer flexible or rigid circuit boards, and are equipped to handle a high mix of features with varied complexity. Our Flex Printed Circuits assembly facility houses equipment ranging from automated pick-and-place equipment and large scale wave soldering ovens to hand insertion and soldering stations. These diverse capabilities enable us to meet volume demands ranging from quick turnaround prototypes to just-in-time deliveries of high quantity production runs. Conformal coatings are also available to meet environmental requirements.

HemeixinPCB has created the option of checking the required impedance on the customer's circuit board, so as to modify the circuit board, or the tracks and the layer structure if necessary. The impedance is largely determined by the track geometry, the structure of the layers and the dielectric constant (Er) of the materials used.

After making the circuit board, the impedances are checked and recorded. The results of the measurements are available on request at any time.
