600 x 1200 troffer 72W led panel light
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 10000000/Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | UL DLC CE SAA |
| HS Code: | 9405106020 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN YANTIAN |
2835 led can reach above 125lm/w with CRI>80Ra.PIR sensor,Microwwave sensor,Daylight sensor,Emergency fuction,Dimmable Fuction are optional.Can meet DLC.4.0 Premium,Which will help get more rebate.Super thin design
Parmeter of DLC UL 2X2 LED Troffer
| Item |
Watts |
Dimensions | Description | Lumens | Dimmable |
|
HH-TL-28W-01
|
28W | 2X2'(603X603mm) |
2X2 Troffer LED Light Rertrofit Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Lens:PC diffuser Light Source:LM80 SMD2835 Driver:UL Class II Dimension:L23.74"xW23.74"xh1.97" |
2800-3080lm | 0-10V |
|
HH-TL-35W-01
|
35W | 2X2'(603X603mm) | 3500-3850lm | 0-10V | |
|
HH-TL-36W-01
|
36W | 2X4'(1213X603mm) |
2X4 Troffer LED Light Rertrofit Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Lens:PC diffuser Light Source:LM80 SMD2835 Driver:UL Class II
|
3600-3960lm | 0-10V |
| HH-TL-45W-01 | 45W | 2X4'(1213X603mm) | 4500-4950lm | 0-10V | |
| HH-PL-50W-01 | 50W | 2X4'(1213X603mm) | 5000-5500lm | 0-10V | |
| HH-PL-60W-01 | 60W | 2X4'(1213X603mm) | 6000-6600lm | 0-10V |
Feature of DLC UL 2X4 LED Troffer
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures (or other color temperature you need.
- Long-life LEDs provide 50,000 hours of operation with at least 70% of initial lumen output (L70).
- Provides 3960 luminaire lumens (110 lumens per watt) at both 4000k and 5000k.
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is optional.
- Total harmonic distortion <20%.
- Color rendering index > 80.
- Steel housing and acrylic lens.
- Easy installation in new construction or retrofit. Housing fits in standard 2' x 2' grid ceilings.

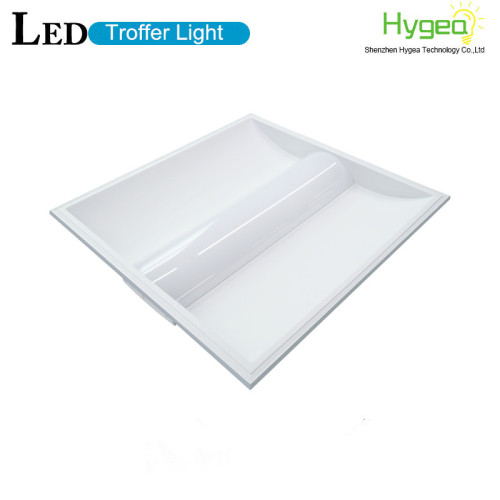

Detail Image of DLC UL 2X2 LED Troffer
The HH-TL-28W-01/HH-TL-35W-01 is a 2' x 2' LED center basket luminaire, which is designed as a direct replacement for 2' x 2' fluorescent luminaires installed in grid ceilings. The TL-28W-01/HH-TL-35W-01 is
designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices,
hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
Technical Specification of DLC UL 2X4 LED Troffer
- Input Voltage: AC100-277V 50Hz--60Hz
- THD<20%
- PF>0.95 Non Flicker
- Power Efficiency:>90%
- Color Temperature: Warm White (3000-3500K)
- Pure White(4000-4500K)
- Pure White(5000-5500K)
- Color Rendering Index: CRI>80
- Beam Angle: 120°
- Material: PP+PC
- Working Temperature:-20℃~ +45℃
- Storage Temperature:-25℃~ +65℃
-
DLC Structure of DLC UL 2X4 LED Troffer
Anti Pressure test of DLC UL 2X4 LED Troffer
Anti Fire test of DLC UL 2X2 LED Troffer
Instrallation and Package of DLC UL 2X2 LED Troffer
Quality Control of DLC UL 2X2 LED Troffer
Application of DLC UL 2X2 LED Troffer
Company Information of DLC UL 2X2 LED Troffer
How to get the price or discount for the LED Troffer Light
