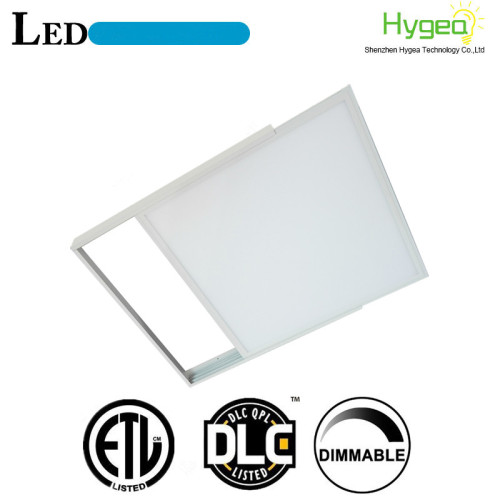

125LM 603x1203mm 72W LED Panel Lighting
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 10000000/Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | UL DLC CE SAA |
| HS Code: | 9405106020 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN YANTIAN |
High reliable constant current driving guarantees long life span of the lamp beads.Wide input voltage :AC85-265V /50-60Hz,applicable for most countries.Energy saving and low power consumption, saving up to 40-50% compared to traditional fluorescent lamp and 80% to traditional incandescent lamp, on the condition of same illumination .Environment friendly, no flashing, no UV or infrared radiation, low heat radiation, mercury free, no polluting materials in the process of using.Long life span of over 50,000 hours by normal use, ten times to traditional incandescent lamp .Easy installation, direct replacement for traditional fluorescent lamp and incandescent lamp.
Parmeter of UL LED Flat Panel Light
| Item |
Watts |
Dimensions | Description | Lumens | Dimmable |
|
HH-PL-36W-01
|
36W | 2X2'(603X603mm) |
2X2 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II Dimension:L23.74"xW23.74"xh1.97" |
2800-3080lm | 0-10V |
|
HH-PL-40W-01
|
40W | 2X2'(603X603mm) | 3500-3850lm | 0-10V | |
|
HH-PL-40W-01
|
40W | 1X4'(1213X301mm) |
1x4/ 2X4 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II
|
3600-3960lm | 0-10V |
| HH-PL-45W-01 | 45W | 1X4'(1213X301mm) | 4500-4950lm | 0-10V | |
| HH-PL-50W-01 | 50W | 2X4'(1213X603mm) | 5000-5500lm | 0-10V | |
| HH-PL-60W-01 | 60W | 2X4'(1213X603mm) | 6000-6600lm | 0-10V | |
|
HH-PL-72W-01 |
72W | 2X4'(1213X603mm) | 7000-7200lm |
Feature of UL LED Flat Panel Light
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures (or other color temperature you need.
- Long-life LEDs provide 50,000 hours of operation with at least 70% of initial lumen output (L70).
- Provides 3960 luminaire lumens (110 lumens per watt) at both 4000k and 5000k.
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is optional.
- Total harmonic distortion <20%.
- Color rendering index > 80.
- Steel housing and acrylic lens.
- Easy installation in new construction or retrofit.
Detail Image of UL LED Flat Panel Light
Technical Specification of UL LED Flat Panel Light
- Input Voltage: AC100-277V 50Hz--60Hz
- THD<20%
- PF>0.95 Non Flicker
- Power Efficiency:>90%
- Color Temperature: Warm White (3000-3500K)
- Pure White(4000-4500K)
- Pure White(5000-5500K)
- Color Rendering Index: CRI>80
- Beam Angle: 120°
- Material: PP+PC
- Working Temperature:-20℃~ +45℃
- Storage Temperature:-25℃~ +65℃
Instrallation and Package of UL LED Flat Panel Light
Quality Control of UL LED Flat Panel Light
Application of UL LED Flat Panel Light
Company Information of UL LED Flat Panel Light
How to get the price or discount for UL LED Flat Panel Light
| Company Nmae | Shenzhen Hygea Technology Co.,Ltd |
| Contact Person | Sarah Huang |
| Tel | 0755-84256152 |
| Wechat/What's APP | +86-13424277729 |
| Skype |
hygealed08 |
| Hygea Official |
www.hygealedlight.com |
Contact us Now! Please kindly Click" Send"
