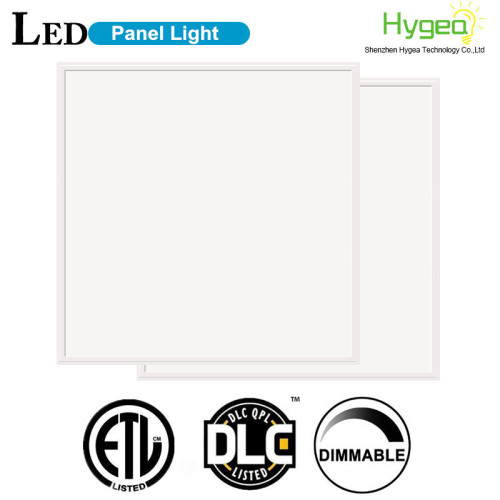

2ftx2ft 36w 40w LED Flat Panel Lights
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 10000000/Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | UL DLC CE SAA |
| HS Code: | 9405106020 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN YANTIAN |
Special surface coating and sealing treatment ensures the 36w led panel light ul listed worked normally in the humid, high temperature and other harsh environment.High luminous efficiency, long-life gas discharge light source,The power factor of the 603x603 led panel light ul listed is more than 0.95, a high luminous efficiency, good light transmission, as long as 50, 000 hours lifespan.Block-style, ceiling and wall-mounted installation, etc., ensures the 600x600 led panel light ul listed can angle up and down in accordance with environmental needs in a wide range within 180 adjustment.
Parmeter of UL LED Flat Panel Light
| Item |
Watts |
Dimensions | Description | Lumens | Dimmable |
|
HH-PL-36W-01
|
36W | 2X2'(603X603mm) |
2X2 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II Dimension:L23.74"xW23.74"xh1.97" |
2800-3080lm | 0-10V |
|
HH-PL-40W-01
|
40W | 2X2'(603X603mm) | 3500-3850lm | 0-10V | |
|
HH-PL-40W-01
|
40W | 1X4'(1213X301mm) |
1x4/ 2X4 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II
|
3600-3960lm | 0-10V |
| HH-PL-45W-01 | 45W | 1X4'(1213X301mm) | 4500-4950lm | 0-10V | |
| HH-PL-50W-01 | 50W | 2X4'(1213X603mm) | 5000-5500lm | 0-10V | |
| HH-PL-60W-01 | 60W | 2X4'(1213X603mm) | 6000-6600lm | 0-10V | |
|
HH-PL-72W-01 |
72W | 2X4'(1213X603mm) | 7000-7200lm |
Feature of UL LED Flat Panel Light
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures (or other color temperature you need.
- Long-life LEDs provide 50,000 hours of operation with at least 70% of initial lumen output (L70).
- Provides 3960 luminaire lumens (110 lumens per watt) at both 4000k and 5000k.
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is optional.
- Total harmonic distortion <20%.
- Color rendering index > 80.
- Steel housing and acrylic lens.
- Easy installation in new construction or retrofit.
Detail Image of UL LED Flat Panel Light
Technical Specification of UL LED Flat Panel Light
- Input Voltage: AC100-277V 50Hz--60Hz
- THD<20%
- PF>0.95 Non Flicker
- Power Efficiency:>90%
- Color Temperature: Warm White (3000-3500K)
- Pure White(4000-4500K)
- Pure White(5000-5500K)
- Color Rendering Index: CRI>80
- Beam Angle: 120°
- Material: PP+PC
- Working Temperature:-20℃~ +45℃
- Storage Temperature:-25℃~ +65℃
Instrallation and Package of UL LED Flat Panel Light
Quality Control of UL LED Flat Panel Light
Application of UL LED Flat Panel Light
Company Information of UL LED Flat Panel Light
How to get the price or discount for UL LED Flat Panel Light
| Company Nmae | Shenzhen Hygea Technology Co.,Ltd |
| Contact Person | Sarah Huang |
| Tel | 0755-84256152 |
| Wechat/What's APP | +86-13424277729 |
| Skype |
hygealed08 |
| Hygea Official |
www.hygealedlight.com |
Contact us Now! Please kindly Click" Send"
