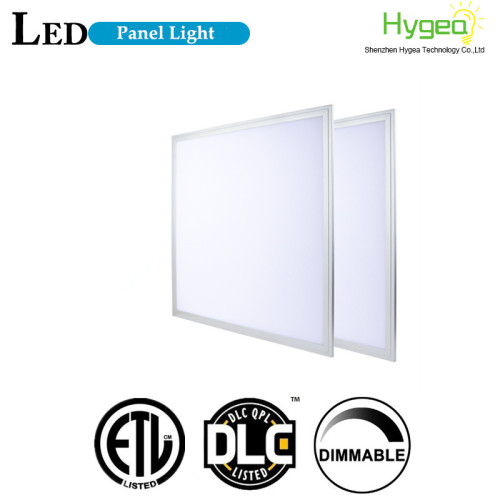

2x2 Ft 40W 4000K LED Panel Light
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 1000 Bag/Bags
- Min. Order:
- 1000 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN YANTIAN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 10000000/Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | UL DLC CE SAA |
| HS Code: | 9405106020 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN YANTIAN |
LED 2x2FT Panel lighting. This 40W LED panel can replace 2 x 2FT fluorescent tubes (150W Equivalent) saving you up to 73% in energy consumption.Reduce re-lamp frequency with a rated lifetime of 45,000+ hours.
LED panel 2x2 Quick and easy installation with multiple installation applications. Modular splice box/driver compartment NOT INCLUDED for quick installation. Integral Tee grid clips make installation easy and secure. This LED Panel can be installed in either drop ceiling or hang as a pendant .
Parmeter of UL LED Flat Panel Light
| Item |
Watts |
Dimensions | Description | Lumens | Dimmable |
|
HH-PL-36W-01
|
36W | 2X2'(603X603mm) |
2X2 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II Dimension:L23.74"xW23.74"xh1.97" |
2800-3080lm | 0-10V |
|
HH-PL-40W-01
|
40W | 2X2'(603X603mm) | 3500-3850lm | 0-10V | |
|
HH-PL-40W-01
|
40W | 1X4'(1213X301mm) |
1x4/ 2X4 LED Panel Light Input Voltage:AC100~277V,50/60Hz Ra:>80,PF>0.9 CCT:3500k/4000k/4500k/5000k Beam Angle:120 Degreen Light Source:LM80 SMD2835 Driver:UL Class II
|
3600-3960lm | 0-10V |
| HH-PL-45W-01 | 45W | 1X4'(1213X301mm) | 4500-4950lm | 0-10V | |
| HH-PL-50W-01 | 50W | 2X4'(1213X603mm) | 5000-5500lm | 0-10V | |
| HH-PL-60W-01 | 60W | 2X4'(1213X603mm) | 6000-6600lm | 0-10V | |
|
HH-PL-72W-01 |
72W | 2X4'(1213X603mm) | 7000-7200lm |
Feature of UL LED Flat Panel Light
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures (or other color temperature you need.
- Long-life LEDs provide 50,000 hours of operation with at least 70% of initial lumen output (L70).
- Provides 3960 luminaire lumens (110 lumens per watt) at both 4000k and 5000k.
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is optional.
- Total harmonic distortion <20%.
- Color rendering index > 80.
- Steel housing and acrylic lens.
- Easy installation in new construction or retrofit.

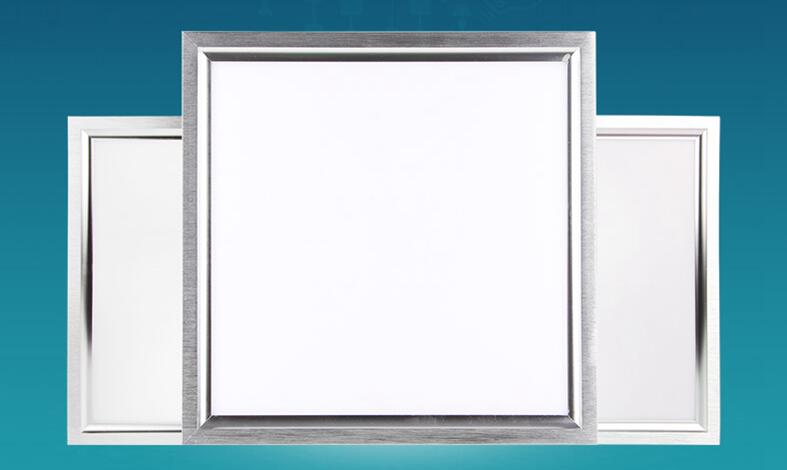

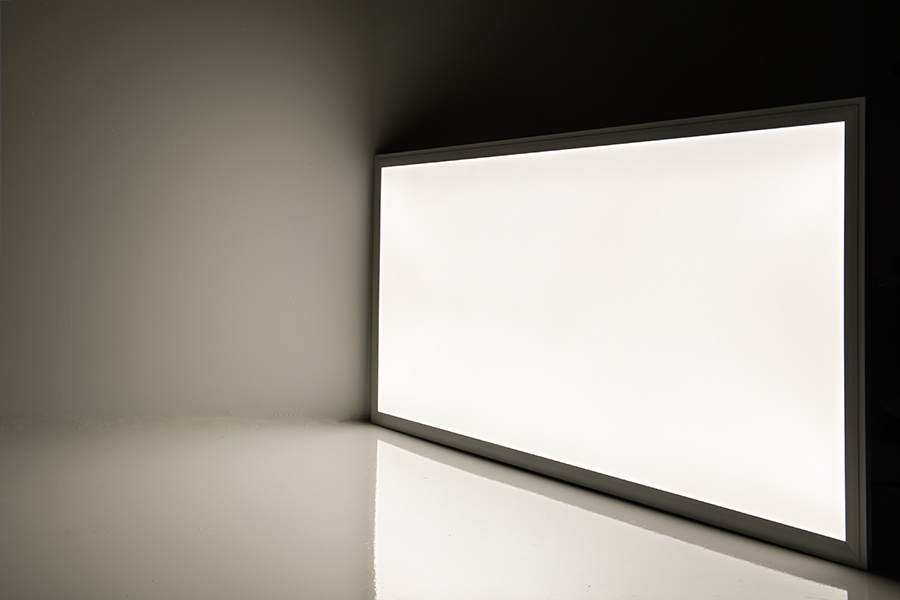

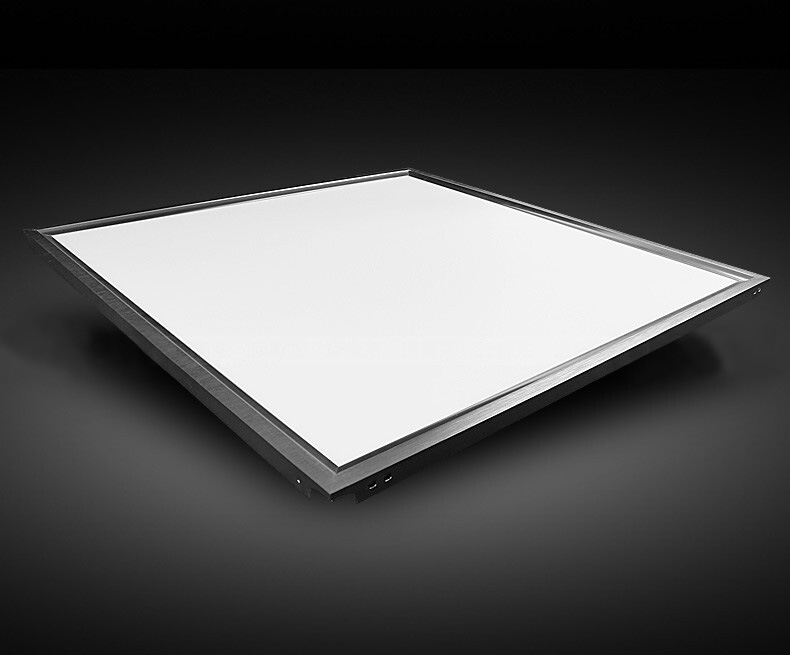

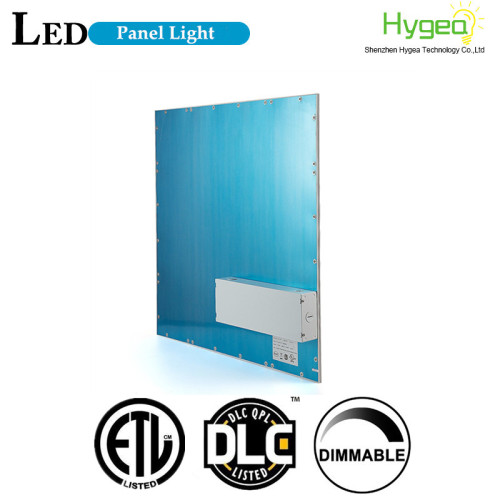

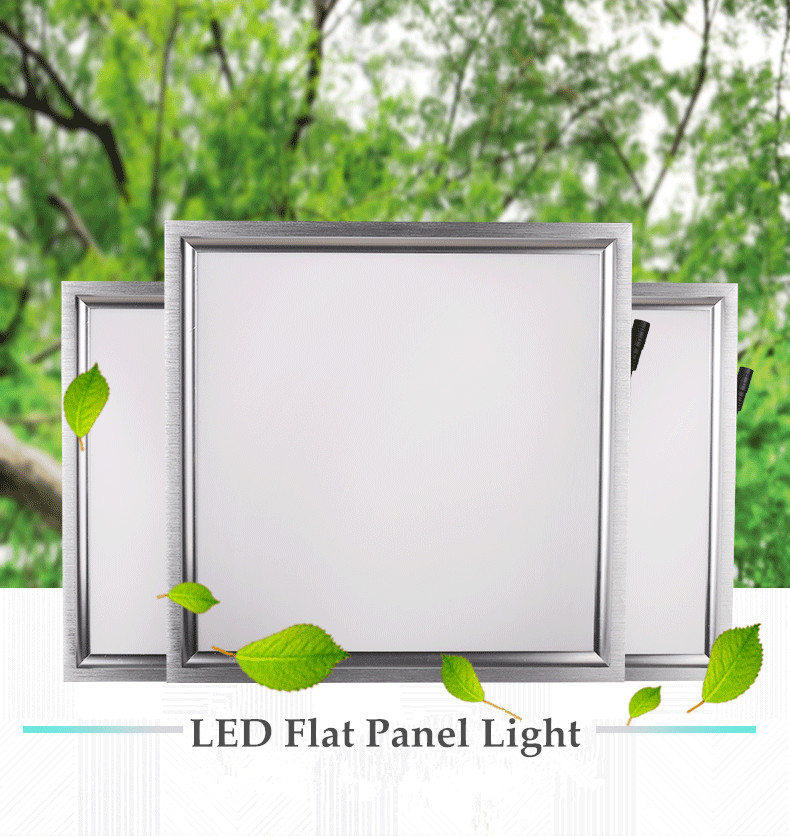

Detail Image of UL LED Flat Panel Light
Technical Specification of UL LED Flat Panel Light
- Input Voltage: AC100-277V 50Hz--60Hz
- THD<20%
- PF>0.95 Non Flicker
- Power Efficiency:>90%
- Color Temperature: Warm White (3000-3500K)
- Pure White(4000-4500K)
- Pure White(5000-5500K)
- Color Rendering Index: CRI>80
- Beam Angle: 120°
- Material: PP+PC
- Working Temperature:-20℃~ +45℃
- Storage Temperature:-25℃~ +65℃

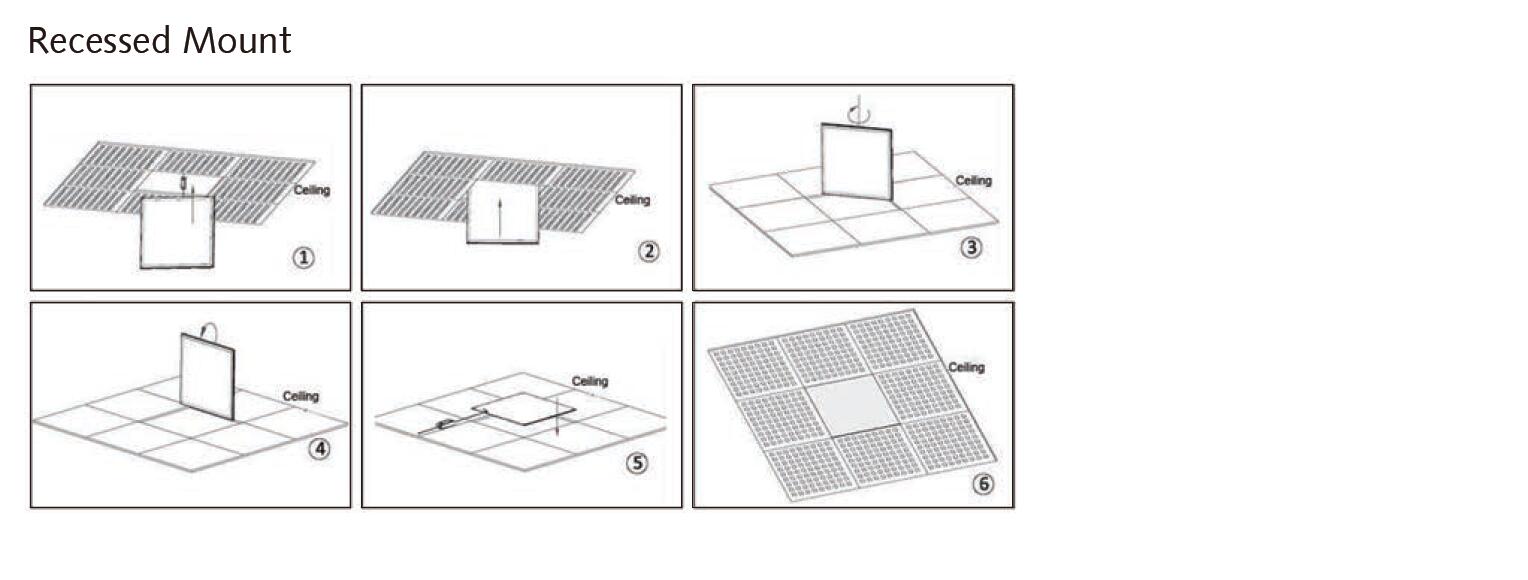

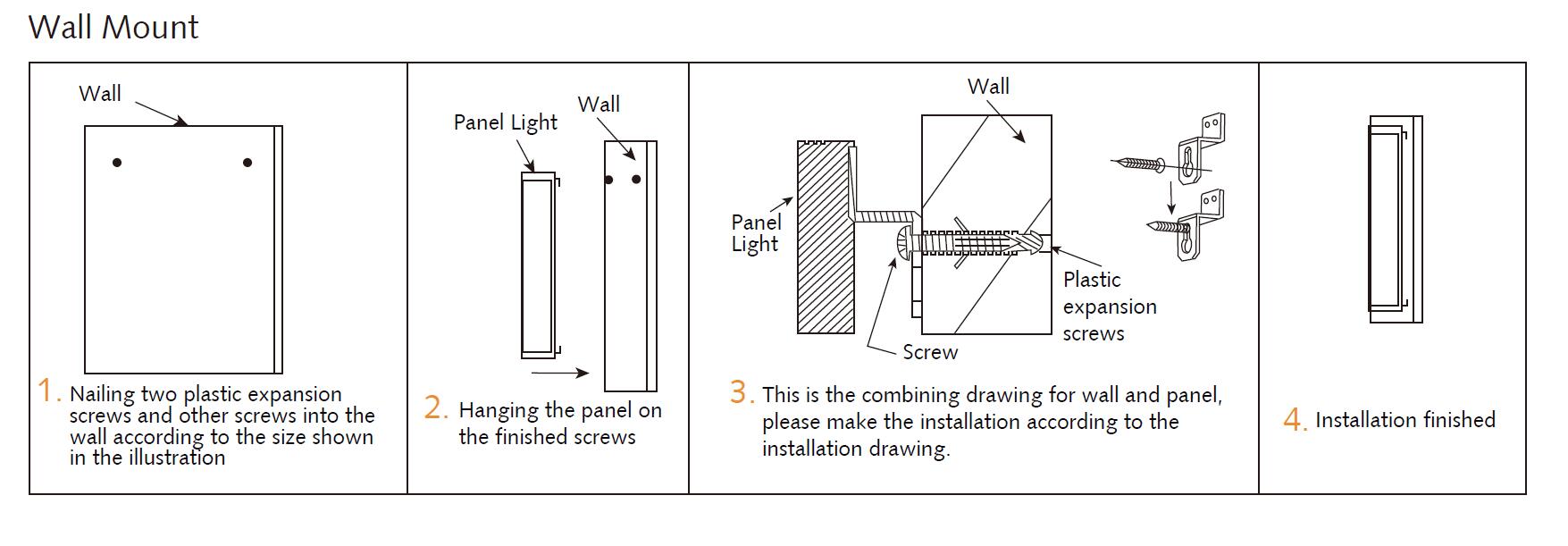

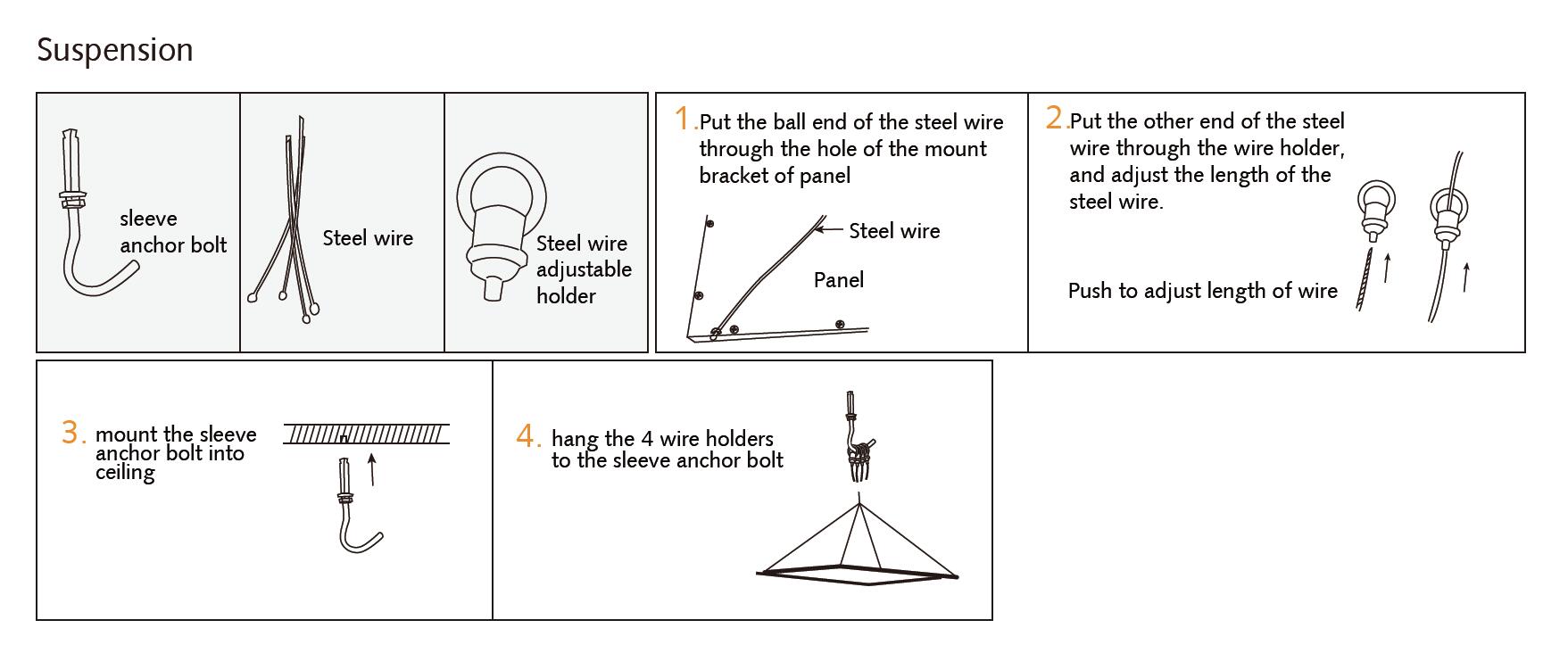

Instrallation and Package of UL LED Flat Panel Light

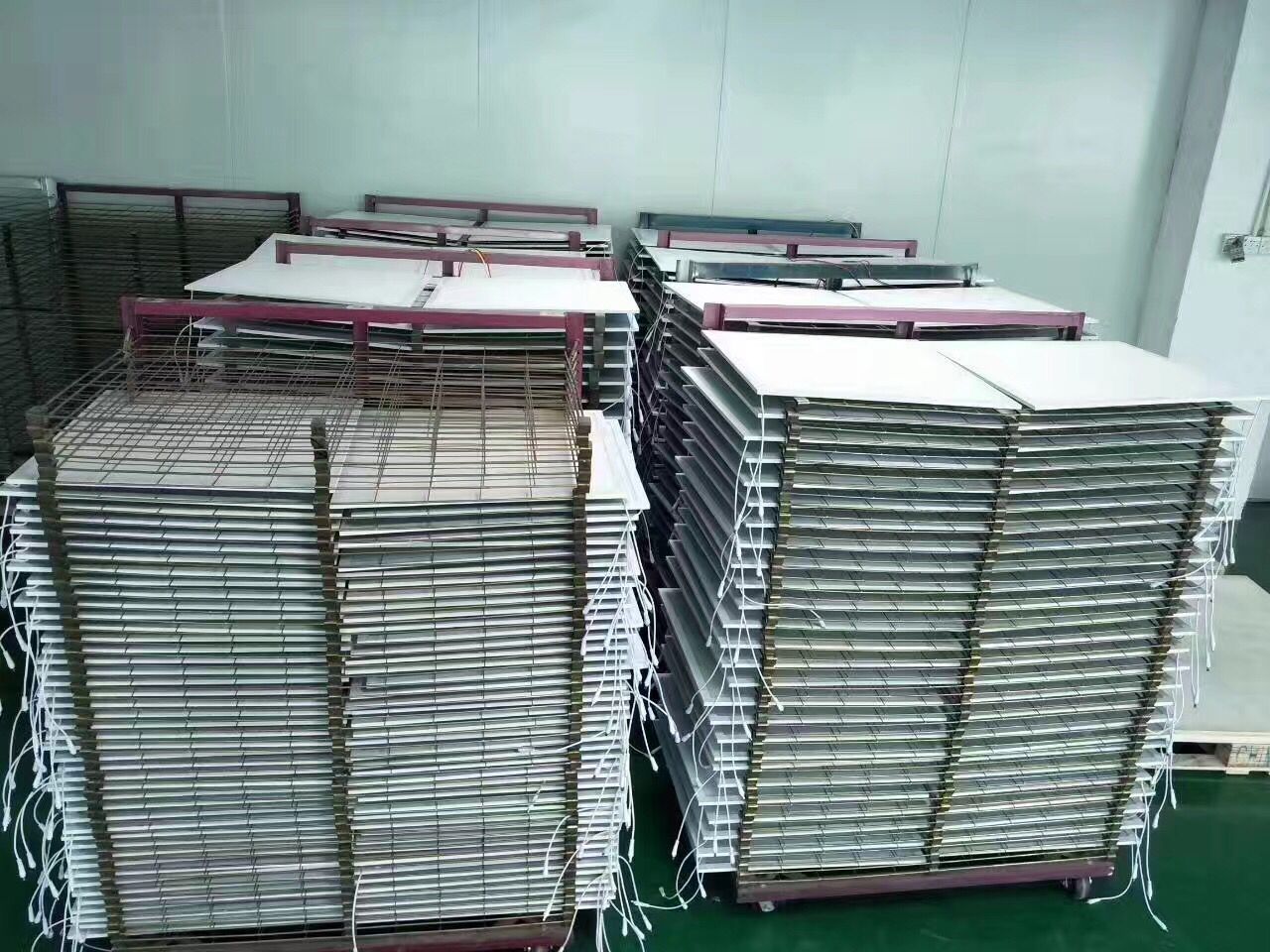

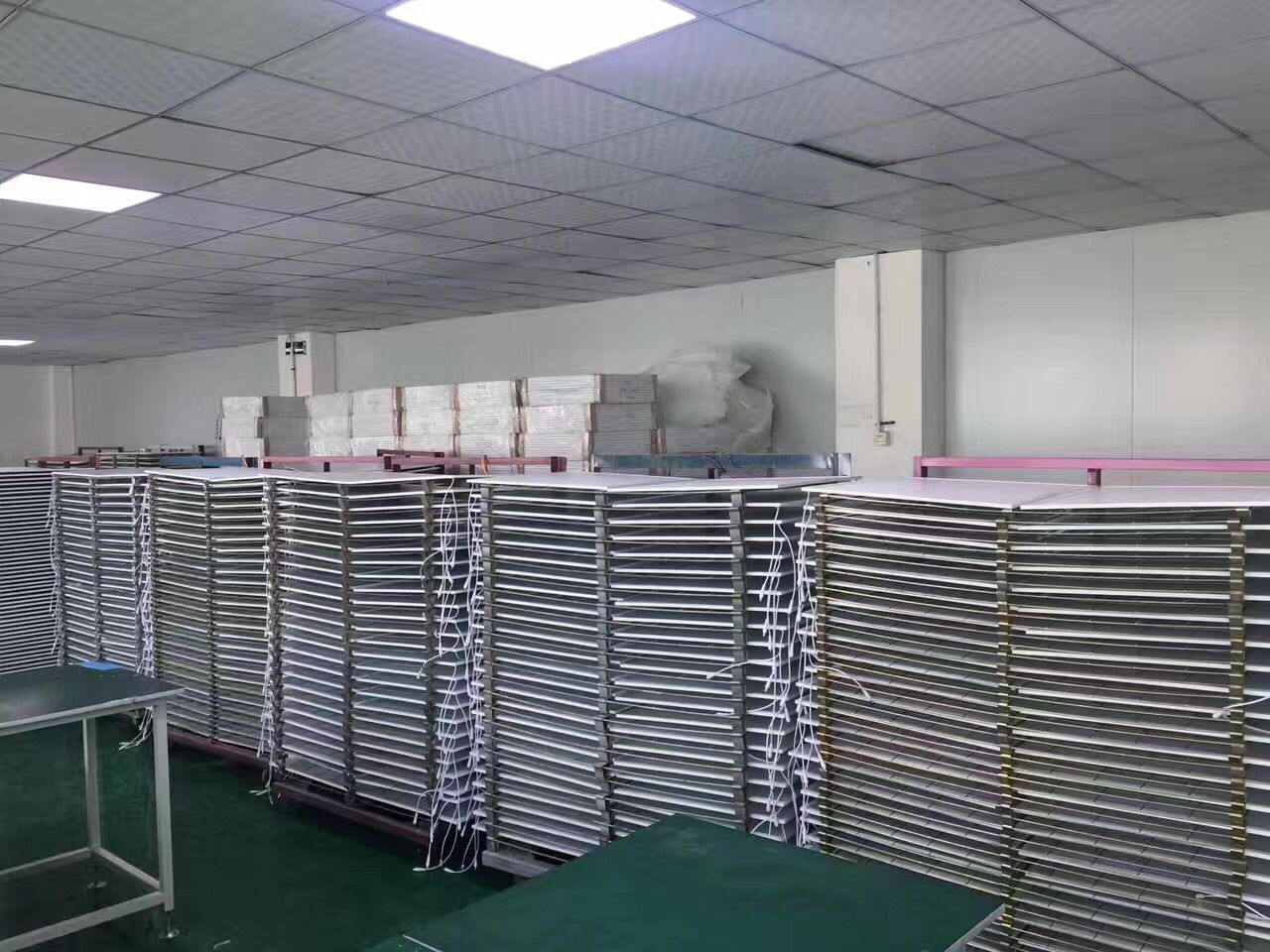

Quality Control of UL LED Flat Panel Light

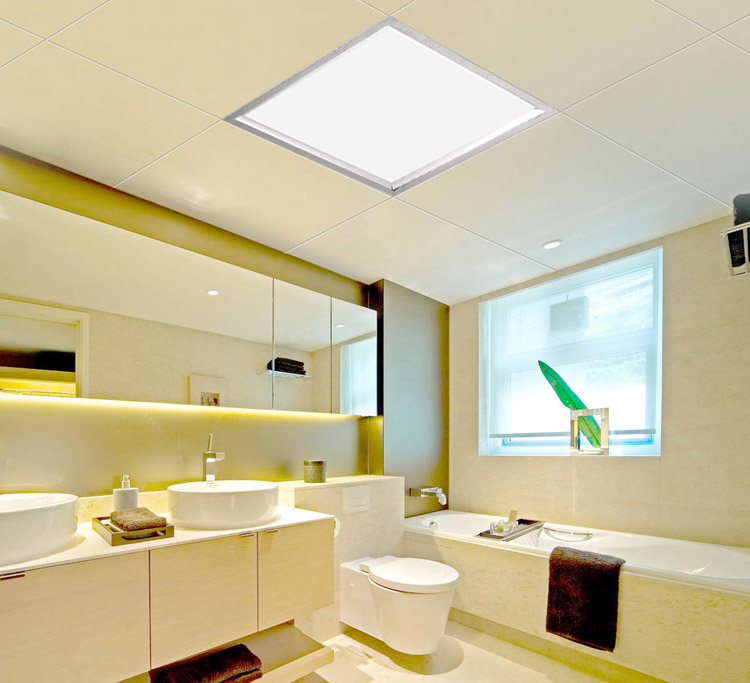

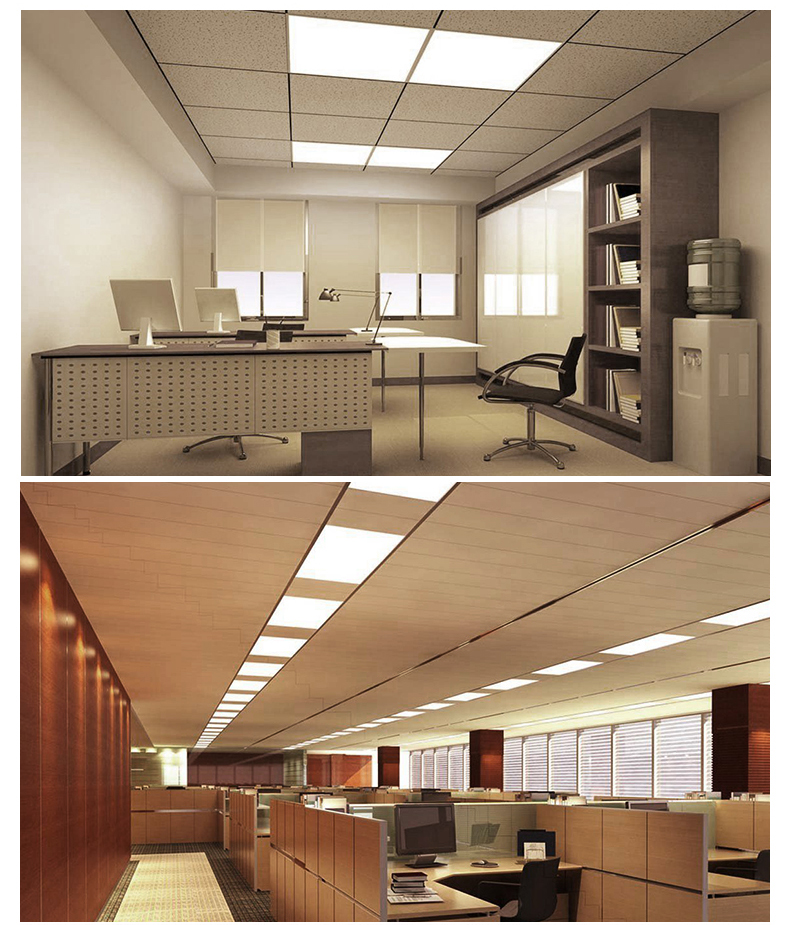

Application of UL LED Flat Panel Light
Company Information of UL LED Flat Panel Light
How to get the price or discount for UL LED Flat Panel Light
