240w LED shoebox light fixture
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN YANTIAN, SHENZHEN SHEKOU
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 2000PCS/DAYS |
| Supply Ability: | 60000PCS/MONTH |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | DLC ETL UL SAA CE ROHS |
| HS Code: | 94051000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN YANTIAN,SHENZHEN SHEKOU |
WHAT IS THE DETAILS OF THE DETAILS OF LED SHOE BOX LIGHT?
| Power | Input Volatge | CCT | IP Rating | PF | CRI | Luminous | Lifespan |
| 200W | AC85-277V | 2700-6500K | IP65 | >0.9 | Ra>83 | 20550 | >50,000H |
| 300W | AC85-277V | 2700-6500K | IP65 | >0.9 | Ra>83 | 30500 | >50,000H |
| LED Brand: Lumileds 3030/Samsung 351B |
| Driver Brand: Normal/Meanwell |
| Warranty: 5 years |
|
Beam Angle: 90/120/90*120/85*135 deg can be optional |
1.The SBL-2 Series area light provides better heatdissipation for longer lifespan.
2.One piece housing for high IP rate.
3.External bracket fixed by 4pcs screws, savelabour cost for installation or maintainance.
4.Type II, III, V distribution.
5.For use in parking lots, roadways, pathwaysand general area lighting.
6.Photocell & motion sensor is available.
Technical Specifications of our the LED Shoe box Light
Certifications and Qualification
UL / UL Canada
DLC 4.2 Standard qualified
Suitable for wet locations.
IP65 rated for wet loaction
Pole mounting arm, slip fitter optional.
IESNA LM-79 & LM-80 Testing
HYGEA LED luminaires have been tested by an independent laboratory in accordance with
IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
Electrical
Driver:
Constant Current, Class 2, 1400mA, 50/60 Hz. 100 - 277V, 10kV surge protection
THD: 13.0% at full load
Power Factor: 94.8 at 120V
Photocell/ motion sensor/ wireless controller:It is available for 100-277V
Optical
Type II, III, V distribution for different area demand
Construction
Thermal Management:
Driver:
Superior heat sinking with internal Air-Flow fins
Leds:
thermal management with die-cast aluminum fins
Maximum Ambient Temperature:
Suitable for use in 104°F (40°C) ambient temperatures
Cold Weather Starting:
Minimum starting temperature is -40°F (-40°C)Housing:Die-cast aluminum A380 housing.
Mounting:
Standardslip fitter, square ploes, round poles for option.
Lens:
Clear acrylic lens with integrated optics.
Gaskets:
High-temperature silicone gaskets.
Finish:
Standard Finish as Traditonal Bronze, black,etc. Formulated for high-durability and long lasting color.
IPrating:
At least IP65 for dust and water proof, IP66 is available.
Green Technology:
Mercury and UV free. RoHS compliant components. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
LED Characteristics
Lifespan:64,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Color Stability:LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
Other
Warranty: LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
Country of Origin: Designed and assembled in the China
Service:
5 years Warrantyservice, maintaince

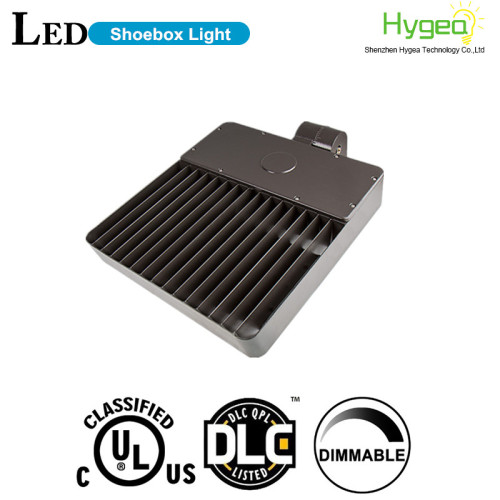

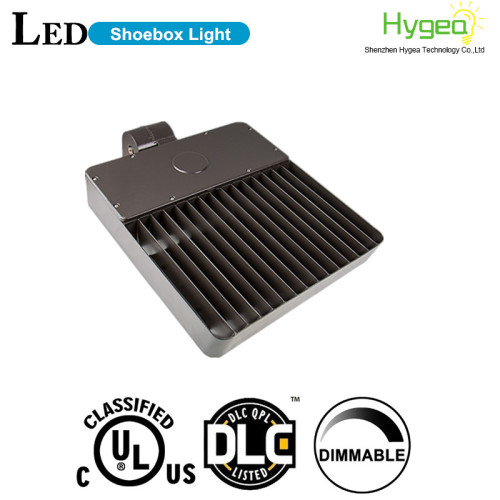

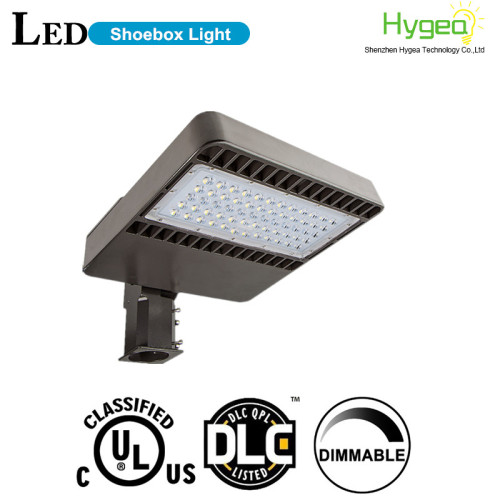

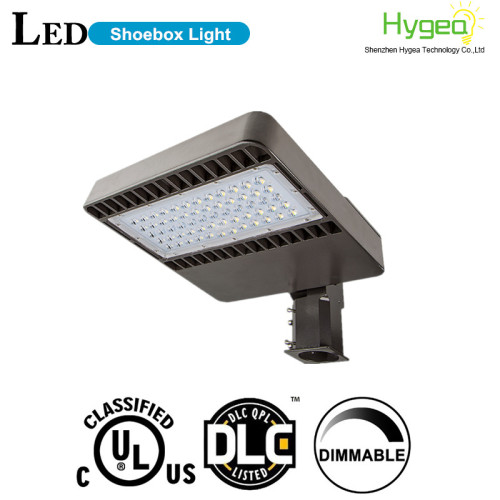

Product Pictures of the LED Shoe box Light?
Application of the LED Shoe box Light?
landmark ,square,passage,park,gym,garden,street,sports field,parking lot,others
Packaging and Shipping
| Power | N.W. | G.W | PCS/CTN | CARTON SIZE |
| 100W | 10.5 kg | 13kg | 1 pcs | 30" x 14.5" x 3.5" |
| 150W | 10.5 kg | 13.5kg | 1 pcs | 30" x 14.5" x 3.5" |
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 2pcs for sample checking are available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 or 5 years warranty to our products.
Q8:Can we chat on skype?
A: Sure,of cause at your convenient time.My skype: hygealed08.
