Platinum Wire Halogen Free TPV Cable 10 Core
- Payment Type:
- T/T, Western Union, Cash
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 10000 Meter
- Min. Order:
- 10000 Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian Shenzhen, Shekou Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,Guangdong |
|---|---|
| Productivity: | 5000000 M/Month |
| Supply Ability: | 500000 M/Week |
| Payment Type: | T/T,Western Union,Cash |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | TS16949;ISO13485;ISO9001 |
| HS Code: | 85441100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian Shenzhen,Shekou Shenzhen |
Our Platinum Wire Halogen Free TPV Cable 10 Core has good performance of high/low temperature resistance, flame retardant, high strength, oil resistance, abrasion resistance, toughness, water resistance , aging resistance, weather resistance, as well has high moisture resistance, windproof, keep warming, antibacterial,antimould, UV resistance, it is the environmental friendly flexible TPU cable with halogen free for ROHS, REACH and so on industry standards.
Main Industry Application Products
Bone Conduction Transduer
Speed Sensor ; Angle Sensor ; Temperature Sensor ; Urea Sensor
CNC Equipment Robot Arm
AED ; Electrocardiograph
Industrial Controllers ;Industrial Control Equipment ;Robot Control
Platinum Wire Halogen Free TPV Cable 10 Core
- Conductor structure: see common conductor structure table or customization
- Insulation : FEP/PFA/ETFE/PVDF/PTFE
- Sheath material : FEP / PFA
- Working temperature : -60 ℃--125℃
- Retardant grade: VW-1
- Production range: standard section 0.03-5 square meter or customization
- Multiple conductors: 1-37 conductors or customization
Feature Of Platinum Wire Halogen Free TPV Cable 10 Core
- Excellent Electrical Insulated Performance
- High Voltage Resistance, Moisture Resistance, Corrosion Resistance
- Almost Insoluble In Any Organic Solvent, Oil resistance, Strong acid resistance
- Strong Alkali Resistance;Excellent Flame Retardant
- Aging Resistance And Long Service Life
- Flame Retardant, Environmental Halogen Free

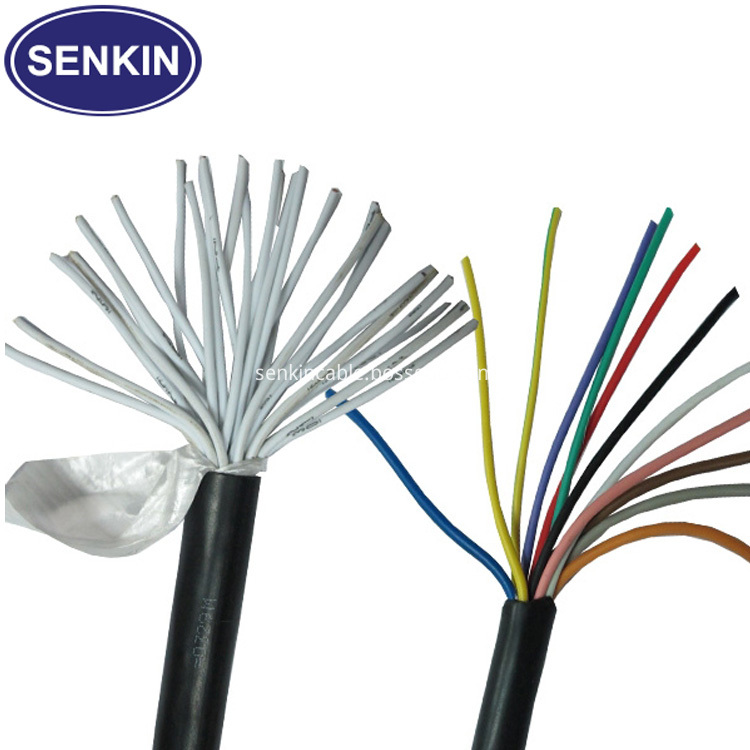

Details HD Photo Of Platinum Wire Halogen Free TPV Cable 10 Core
The Application Of Platinum Wire Halogen Free TPV Cable 10 Core
TPV Cable's Application On CNC Equipment,Sencor And Connector Such Like Those Connector Production By Lemo,ODU:
Base On The Features Of Our TPV Cable--Flexibility&Oil Resistance,Many Industry Choose Platinum Wire Halogen Free TPV Cable 10 Core
TPV Cable's Application On Medical Equipment:
Base On The Features Of Our TPV Cable--Flexibility&Oil Resistance,Medical Industry Choose Platinum Wire Halogen Free TPV Cable 10 Core
Our Low Voltage Multicore Cable Apply to Industrial Printer,Robot Control,Industrial Controllers,Automation Industrial Equipment,Below Down You Could Find Details:
Specification Data Sheet Of Our Normal Platinum Wire Halogen Free TPV Cable 10 Core
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper |
Kevlar/Nylon |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | Kevlar/Nylon | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | Kevlar/Nylon | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | Kevlar/Nylon | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | Kevlar/Nylon | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | Kevlar/Nylon | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | Kevlar/Nylon | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | Kevlar/Nylon | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | Kevlar/Nylon | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | Kevlar/Nylon | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | Kevlar/Nylon | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | Kevlar/Nylon | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | Kevlar/Nylon | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | Kevlar/Nylon | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | Kevlar/Nylon | ||
| 40 | 1/0.08 | 0.08 | <3500 |
Kevlar/Nylon |
Specification Data Sheet Of Our High Temperature Resistant Platinum Wire Halogen Free TPV Cable 10 Core
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper |
NO |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | NO | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | NO | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | NO | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | NO | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | NO | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | NO | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | NO | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | NO | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | NO | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | NO | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | NO | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | NO | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | NO | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | NO | ||
| 40 | 1/0.08 | 0.08 | <3500 |
NO |
Cause All The Different Material Have The Different Features,
Some Have High Temperature Resistance But Some Have Not , We Need Note The Important Things To Choose The Right Match Material.
Then Do You Know How To Match The Cable's Jacket , Insulation and Conductor Material?
Take Easy And Please Note And Check The Below Sheet:
| Jacket Material | Insulation Material | Conductor Material |
| TPU/PU | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| PUR | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| TPE | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| TPV | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| MPR | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| PEBAX | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| Silicone Rubber | FEP/PFA/Silicone Rubber | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire |
| Teflon | Teflon | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire |
Senkin Company's Info:
Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.
We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.
FAQ:
Q: Where Is Your Factory Located In?
A: Our Factory Located In Shenzhen City,Near to Shekou Port or Yantian Port
Q: What Can You Do For Client?
A: 1. Provide Very Useful And Professional Solution For Client's Request
2. OEM According With Client's Drawing or Design
3. 100% Quality Inspect
Q: What Is Your Payment Way?
A: We Accept T/T,Cash,Westerm Union And L/C
Q: What's The Business Step With Your Factroy?
A: Pls Feel Your Free Time To See The Below Info:
Our Shipping Service:
We provide shipping by sea,shipping by air,shipping by train,shipping by truck and express.
All the way will be choosed by client.
All Details if you cannot understand very well pls feel your free time to contact the sales man online by Skype or by Email.
