Fire Resistance Tinsel Wire TPE Grounding Cable
- Payment Type:
- T/T, Western Union, Cash
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 10000 Meter
- Min. Order:
- 10000 Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian Shenzhen, Shekou Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,Guangdong |
|---|---|
| Productivity: | 5000000 M/Month |
| Supply Ability: | 500000 M/Week |
| Payment Type: | T/T,Western Union,Cash |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | TS16949;ISO13485;ISO9001 |
| HS Code: | 85441100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian Shenzhen,Shekou Shenzhen |
Our Fire Resistance Tinsel Wire TPE Grounding Cable has the high performance of high strength, high elasticity, environmental non-toxic safety, good colorability, high soft and flex, weather resistance, fatigue resistance and temperature resistance, flame retardant, environmental halogen free for ROHS, REACH and so on industry standards.
Description of Senkin Oilproof Tinned Copper TPE Coiled Battery Cable
Conductor structure: see common conductor structure table or customization
Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
Sheath material : TPE
Working temperature : -60 degree-+105 degree
Production range: standard section 0.03-7 square meter or customization
Multiple conductors: 1-37 conductors or customization
Main Industry Application Products
Bone Conduction Transduer
Speed Sensor ; Angle Snesor ; Temperture Sensor ; Urea Sensor
CNC Equipment Robot Arm
AED ; Electrocardiograph
Industrical Controllers ;Industrial Control Equipment ;Robot Control
Fire Resistance Tinsel Wire TPE Grounding Cable
- Conductor structure: see common conductor structure table or customization
- Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
- Sheath material : general with polyester type TPU or polyether type TPU
- Working temperature : -50 ℃--105 ℃
- Production range: standard section 0.03-6 square meter or customization
- Multiple conductors: 1-37 conductors or customization
Feature Of Fire Resistance Tinsel Wire TPE Grounding Cable
- Flexibility
- Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
- Cold Resistance
- Flame Retardant
- Oil Resistance
- Abrasion Resistance.

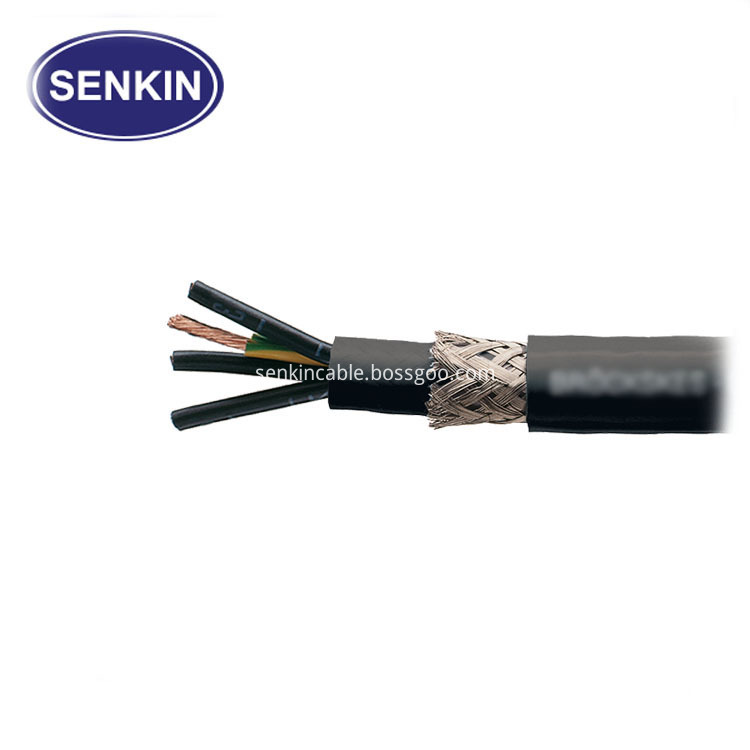

Details HD Photo Of Fire Resistance Tinsel Wire TPE Grounding Cable
The Application Of Fire Resistance Tinsel Wire TPE Grounding Cable
TPE Cable's Application On CNC Equipment,Sensor And Connector Such Like Those Connector Production By Lemo,ODU:
Base On The Features Of Our TPE Cable--Flexibility&Oil Resistance,Many Industry Choose Fire Resistance Tinsel Wire TPE Grounding Cable
TPE Cable's Application On Medical Equipment:
Base On The Features Of Our TPE Cable--Flexibility&Oil Resistance,Medical Industry Choose Our Fire Resistance Tinsel Wire TPE Grounding Cable
Our Low Voltage Multi Core Cable Apply to Industrial Printer,Robot Control,Industrial Controllers,Automation Industrial Equipment,Below Down You Could Find Details:
Specification Data Sheet Of Our Normal Fire Resistance Tinsel Wire TPE Grounding Cable
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper |
Kevlar/Nylon |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | Kevlar/Nylon | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | Kevlar/Nylon | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | Kevlar/Nylon | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | Kevlar/Nylon | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | Kevlar/Nylon | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | Kevlar/Nylon | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | Kevlar/Nylon | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | Kevlar/Nylon | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | Kevlar/Nylon | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | Kevlar/Nylon | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | Kevlar/Nylon | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | Kevlar/Nylon | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | Kevlar/Nylon | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | Kevlar/Nylon | ||
| 40 | 1/0.08 | 0.08 | <3500 |
Kevlar/Nylon |
Specification Data Sheet Of Our High Temperature Resistant Fire Resistance Tinsel Wire TPE Grounding Cable
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 |
99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper |
NO |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | NO | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | NO | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | NO | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | NO | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | NO | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | NO | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | NO | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | NO | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | NO | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | NO | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | NO | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | NO | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | NO | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | NO | ||
| 40 | 1/0.08 | 0.08 | <3500 |
NO |
Cause All The Different Material Have The Different Features,
Some Have High Temperature Resistance But Some Have Not , We Need Note The Important Things To Choose The Right Match Material.
Then Do You Know How To Match The Cable's Jacket , Insulation and Conductor Material?
Take Easy And Please Note And Check The Below Sheet:
| Jacket Material | Insulation Material | Conductor Material |
| TPU/PU | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| PUR | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| TPE | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| TPV | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| MPR | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| PEBAX | TPE/PFA/TPEE/MPPO/Silicone Rubber/PP/HDPE | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire/Varnished Wire |
| Silicone Rubber | FEP/PFA/Silicone Rubber | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire |
| Teflon | Teflon | Bare Copper/Tinned Copper Wire/Tinsel Wire/Silver Plated Wire/Platinum Wire |
Senkin Company's Info:
Shenzhen SenKin Electronic Co.,Ltd. has more than 10 years of experience in manufacturing cable and our major products are Silicone Cable/PTEE Cable/PUR /TPU Cable which used in the Auto,Sensors,High temperature resistance which use in Special Industry,Military Industry,Medical Industry,Robot Industry,Aerospace Industry with the monthly turnout of 500,000 meters.
We handle tooling,production and packaging with the use of our eight production lines,supported by 150 staff members in our 2500 sqm factory.Our resources including production equipment and testing facilities from Taiwan and Japan enable us to turn out up to 500,000 meters monthly and provide major professional OEM service.We are always concentrate on what your request,could make the very professional suggestion and useful solution for your cable project.
FAQ:
Q: Where Is Your Factory Located In?
A: Our Factory Located In Shenzhen City,Near to Shekou Port or Yantian Port
Q: What Can You Do For Client?
A: 1. Provide Very Useful And Professional Solution For Client's Request
2. OEM According With Client's Drawing or Design
3. 100% Quality Inspect
Q: What Is Your Payment Way?
A: We Accept T/T,Cash,Western Union And L/C
Q: What's The Business Step With Your Factory?
A: Pls Feel Your Free Time To See The Below Info:
Our Shipping Service:
We provide shipping by sea,shipping by air,shipping by train,shipping by truck and express.
All the way will be choose by client.
All Details if you cannot understand very well pls feel your free time to contact the sales man online by Skype or by Email.
Skype : allenkiko214914 whatsapp: +86 18682183914
