Polypropylene horizontal spray tower
-
USD800≥1 Set/Sets
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5 Days
- Transportation:
- Ocean
- Port:
- Shenzhen, Guangzhou, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000Sets |
| Supply Ability: | 100000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE |
| Transportation: | Ocean |
| Port: | Shenzhen,Guangzhou,HongKong |

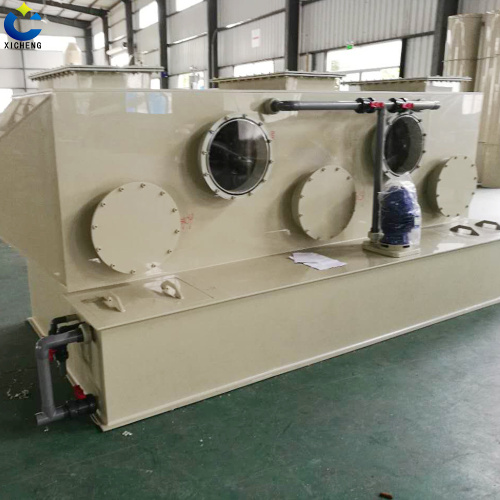

1.Introduction
what horizontal spray tower to gas treatment is the vertical spray tower to wates gas treatment .The functions of the two types of washing tower are the same.
The difference lies in the shape. The design is to take two layers of spray and a fog removal of the internal purification system. Horizontal washing towers are
horizontally laid out for use in projects or companies that are highly restricted and spacious.In addition, the volume of the water tank and the general volume
of horizontal washing tower tower length is equal, because it is placed horizontally and laterally to spray water pump power generally is slightly larger than the
vertical spray tower is a little bit more reasonable(Of course, the tower is not very large, the case can also be selected with vertical spray tower, the same power
pump is also possible, must not be less than the original standard power, otherwise it will have an impact on the purification effect.Can handle the types of waste
gas: acid mist, dust, industrial waste gas treatment covers more than 90%.
2.parameters table
|
Air volume (M3/H) |
Size (mm) |
THK (mm) |
Drain outlet (mm) |
Water tank size(mm) |
Inlet and outlet size (mm) |
Pump (KW) |
Wind resistance (Pa) |
| 3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
| 5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
| 8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
| 10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
| 12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
| 15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
| 20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
| 25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
| 30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
| 35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
| 40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
| 45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
3.company service
PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirements and drawings.
INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.
AFTER SERVICR
Our equipment will have a one-year life of quality assurance , repair and replacement are guaranteed.
4.COMPANY PROFILE
Shenzhen Xicheng Environmental Protection Technology Co., LTD.,located in Baoan District, Shenzhen City,Guangdong province,China.Our company mainly
produces waste gas treatment equipment, ventilation equipment, exhaust tower, activated carbon tower, washing tower, PP board, PP pipe, PP wind valve,
PP elbow, and other ventilation accessories. Our company can be customized according to the drawings or requirements of the processing.The quality of
products are assurance with highly cost-effective.
