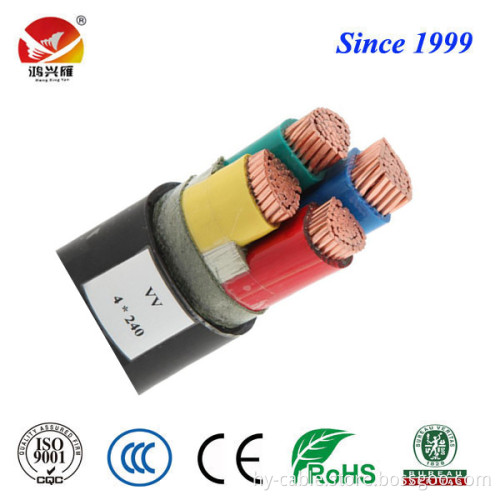

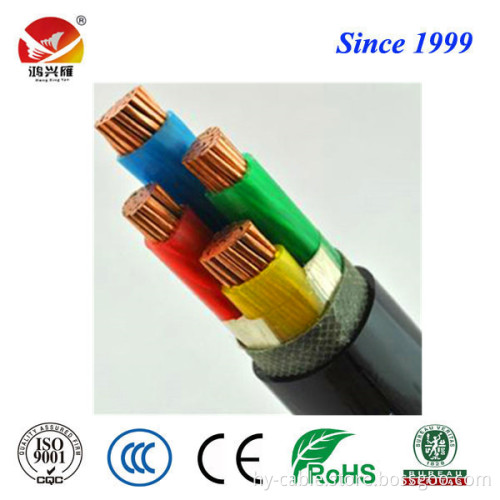

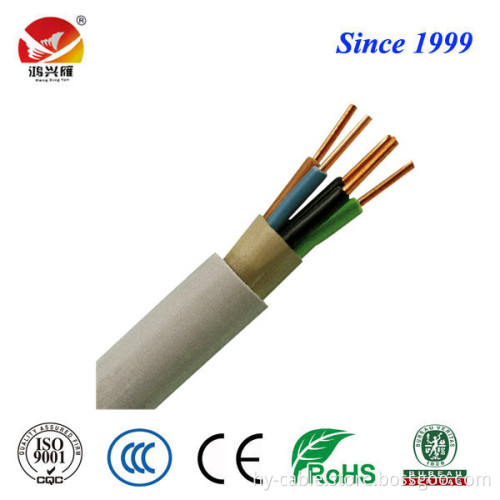

NYY NYM pvc insulated VV power cable

NYY NYM pvc insulated VV power cable, the details as below:

---Application

NYY NYM pvc insulated VV power cable, Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
---Conductor

Pure annealed strand copper wire, Class 1 or class 2, meets to IEC60228

---Voltage Rate

0.6/1kV.

---Insulation Material
PVC (Polyvinyl Chloride)

---Insulation Colour

1 core: red or others colour

2 cores: blue,brown

3 cores: blue, brown, yellow/green.

4 cores: blue, brown, black, yellow/green

5 cores: blue, brown, black, grey, yellow/green

---Sheath Material
PVC (Polyvinyl Chloride)

---Sheath Colour

Black or white

---Temperature Rating
-10°C to +70°C

---Minimum Bending Radius
6 x Cable's Out Diameter

---Test voltage

2000V, 5 min (don't breakdown)

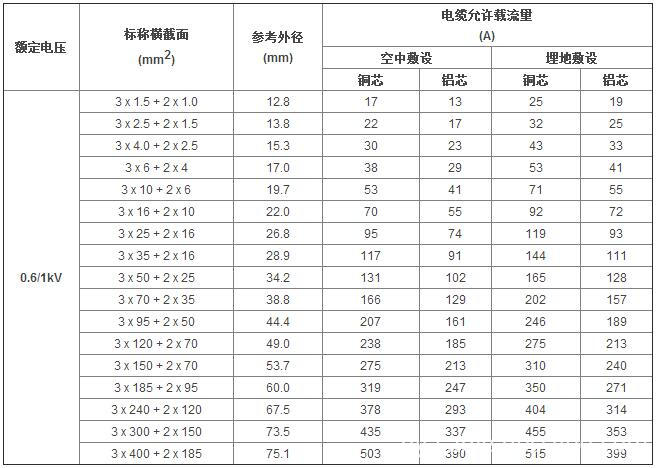

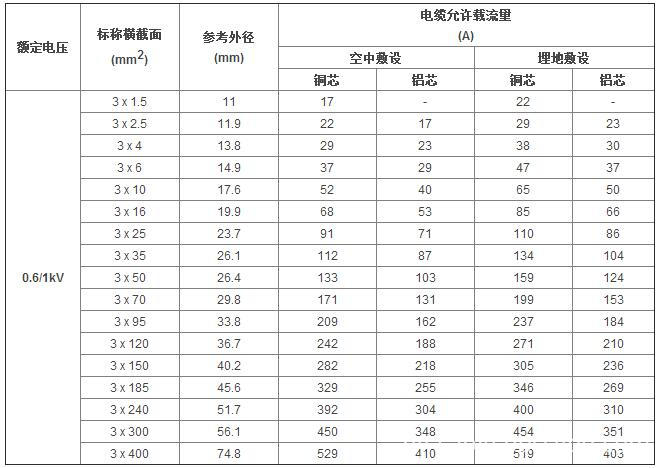

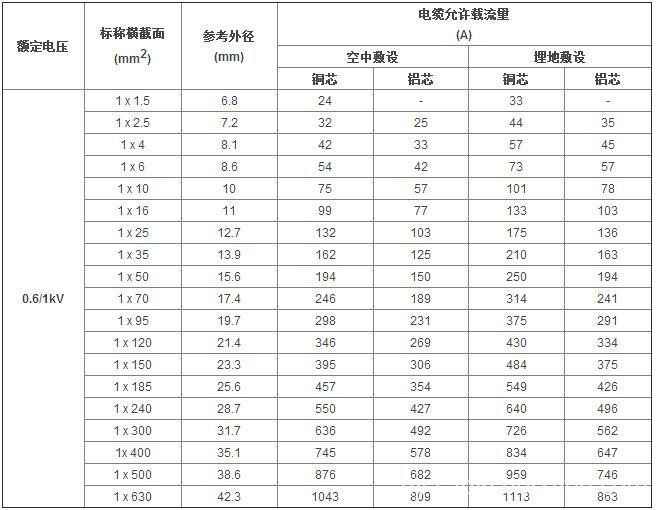

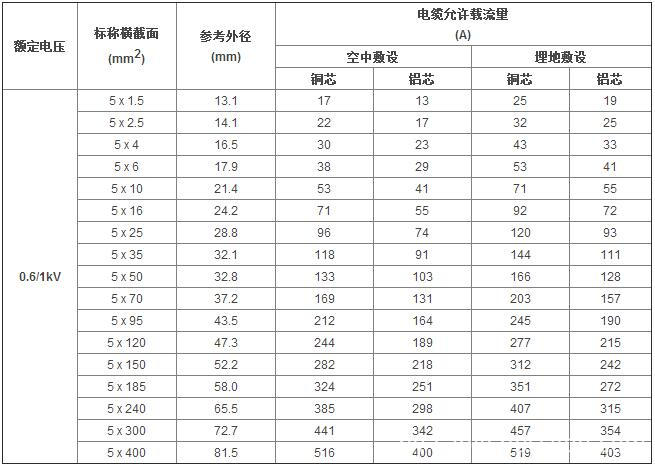

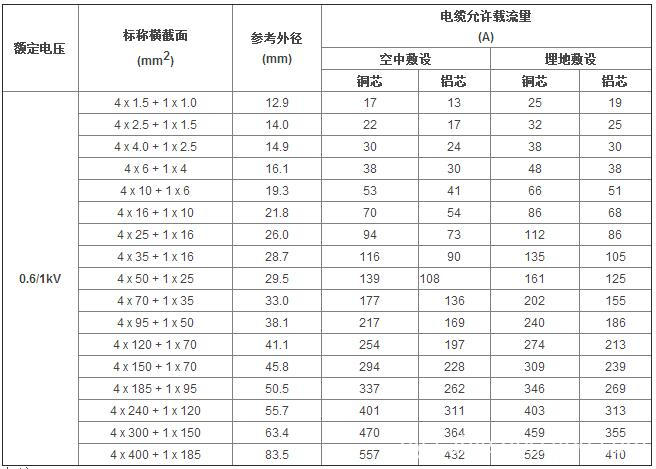

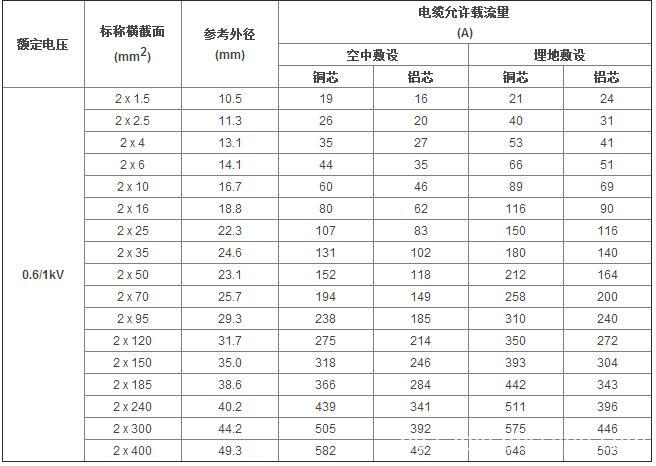

---Main Technology Data

---Hongyan Profile:

Shenzhen Hongyan Wire Industry Co., Ltd, was established in 1999, is specialized in Electric wires, Power Cables, Network Cables, Lan Cables, Telephone Cables and Coaxial Cables. The Company is located in Shenzhen, China, the area more than 10,000 square meters.

---Hongyan Advantages:

1) Competitive Price, Excellent Quality, Shortly Delivery Time, Foremost Services.

2) ISO9001, CCC, CE, Reach, RoHS, Bureau Veritas and other certificates.

3) 50 minutes reach to Shenzhen sea or air port.

4) 3 professional engineers and 168 experienced workers.

5) Our products meets to GB, JB, IEC, AS/NZS, BS, VDE, UL and other standards, and we can accept to OEM service.

---Hongyan Products:

1) Bare Copper Wire, Bare Aluminum Wire;

2) 450/750V and below, PVC Insulation, Power Cables and Electrical Wires;

3) 0.6/1kV, PVC Insulation, Power Cables and Electrical Wires;

4) 0.6/1kV XLPE Insulation, Power Cables;

5) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 26/35kV, Medium Voltage power cables;

6) Control Cables, Instrument Cables, Safety/Security Cables, Alarm Cables;

7) Flexible Cable, Soft Cable, Welding Cables, Battery Connect Cables, Machine Connect Cables;

8) 1kV or 10kV, Aerial Bunch/Bundled Cables;

9) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH Cables, RoHS Cables, Environmental Protection Cables, Irradiation Cross-linked Cables;

10) Communication Cables: Network Cables: Cat 5, Cat 5e, Cat 6 Cables; Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs,   10 Pairs and 20 Pairs Cables; Coaxial Cables: SYV75-5, SYWV75-5, RG6, RG11, RG59 Cables.

---Hongyan Slogan:

Hongyan Wire, Quality is the Soul, Credibility is the Market.

Hongyan Wire, is the Manufacturer, is the Source, and is the First Ring of the Supply Chain.

Hongyan Wire, is your Production Base, Overseas Warehouse and Chinese Agency in Wire and Cables industry.

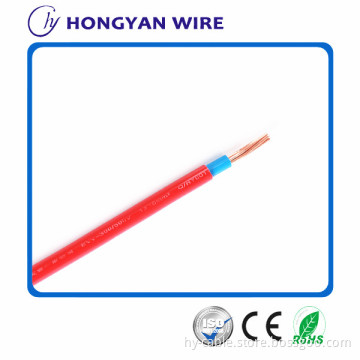

---Main Products

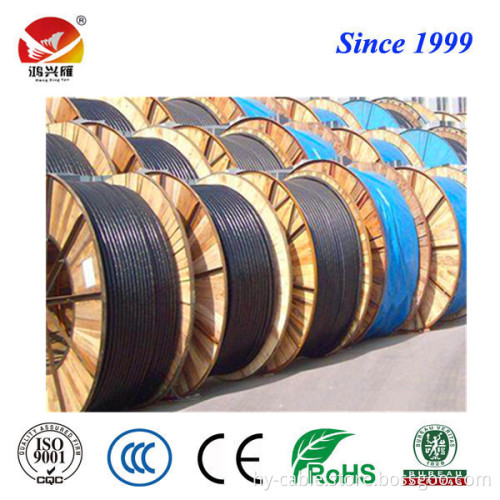

---Company Warehouse

---Company Workshop

---Remark

If you want to know more information, please do not hesitate to contact us immediately.
