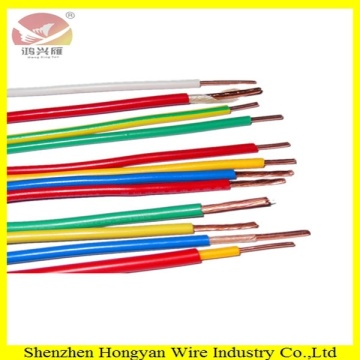

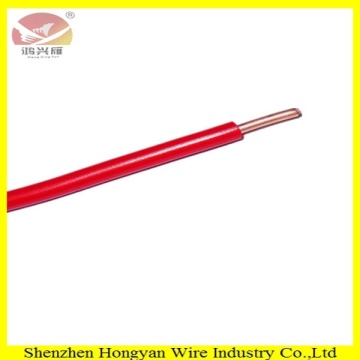

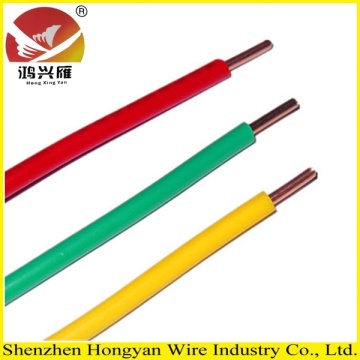

PVC insulated house holding 1.5mm2 electric wire
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
PVC insulated, non-sheathed, 450/750V, general purpose cable
1. Application: electric power, lighting and internal wiring
2. Structure drawing:
3. Specification Data (Standard: GB/T 5023.3, IEC 60227-3):
|
Product Code |
Nominal cross-sectional |
Class of conductor |
Thickness of insulation |
Mean overall diameter |
|
|
Lower limit |
Upper limit |
||||
|
mm2 |
mm |
mm |
mm |
||
|
HY-GB-BV-1C1.5 |
1X1.5 |
1 |
0.7 |
2.6 |
3.2 |
|
HY-GB-BV-1C1.5-b |
1X1.5 |
2 |
0.7 |
2.7 |
3.3 |
|
HY-GB-BV-1C2.5 |
1X2.5 |
1 |
0.8 |
3.2 |
3.9 |
|
HY-GB-BV-1C2.5-b |
1X2.5 |
2 |
0.8 |
3.3 |
4.0 |
|
HY-GB-BV-1C4.0 |
1X4.0 |
1 |
0.8 |
3.6 |
4.4 |
|
HY-GB-BV-1C4.0-b |
1X4.0 |
2 |
0.8 |
3.8 |
4.6 |
|
HY-GB-BV-1C6.0 |
1X6.0 |
1 |
0.8 |
4.1 |
5.0 |
|
HY-GB-BV-1C6.0-b |
1X6.0 |
2 |
0.8 |
4.3 |
5.2 |
|
HY-GB-BV-1C10.0 |
1X10 |
1 |
1.0 |
5.3 |
6.4 |
|
HY-GB-BV-1C10.0-b |
1X10 |
2 |
1.0 |
5.6 |
6.7 |
|
HY-GB-BV-1C16 |
1X16 |
2 |
1.0 |
6.4 |
7.8 |
|
HY-GB-BV-1C25 |
1X25 |
2 |
1.2 |
8.1 |
9.7 |
|
HY-GB-BV-1C35 |
1X35 |
2 |
1.2 |
9.0 |
10.9 |
|
HY-GB-BV-1C50 |
1X50 |
2 |
1.4 |
10.6 |
12.8 |
|
HY-GB-BV-1C70 |
1X70 |
2 |
1.4 |
12.1 |
14.6 |
|
HY-GB-BV-1C95 |
1X95 |
2 |
1.6 |
14.1 |
17.1 |
|
HY-GB-BV-1C120 |
1X120 |
2 |
1.6 |
15.6 |
18.8 |
|
HY-GB-BV-1C150 |
1X150 |
2 |
1.8 |
17.3 |
20.9 |
|
HY-GB-BV-1C185 |
1X185 |
2 |
2.0 |
19.3 |
23.3 |
|
HY-GB-BV-1C240 |
1X240 |
2 |
2.2 |
22.0 |
26.6 |
|
HY-GB-BV-1C300 |
1X300 |
2 |
2.4 |
24.5 |
29.6 |
|
HY-GB-BV-1C400 |
1X400 |
2 |
2.6 |
27.5 |
33.2 |
4. Operating Characteristics:
A. Working Temperature: 0oC ~ 70oC
B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm)
