2x1.5mm pair 28awg twisted cable
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Specifications
1. Voltage: 300/300V, 300/500V
2. Wires & Cables professional manufacturer
3. OEM

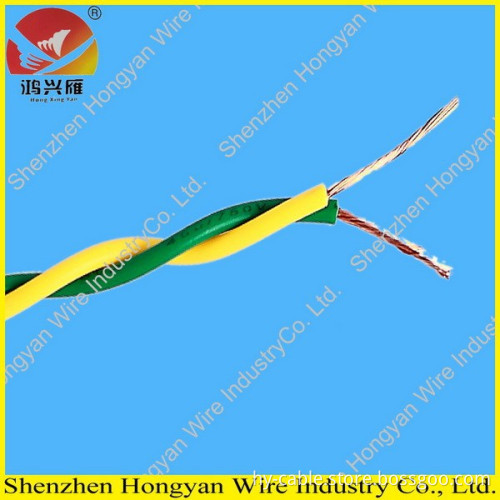

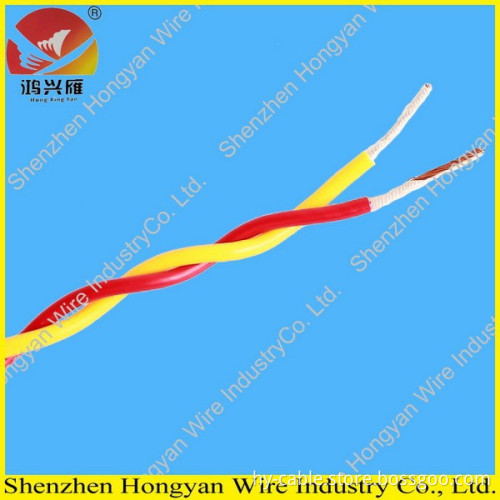

2x1.5mm twisted cable
Specifications
1. Model No. RVB, RVVB,RVS electric wire 3 core electric cable
2. Voltage: 300/300V, 300/500V
3. Wires & Cables professional manufacturer
4. OEM acceptable
1. Application:
This product is fit A.C rated voltage up to and including 300/500V.
2. Use:
This product is suitable to be used in household appliances, electric tools and lighting.
3. Structure:
A: Copper Conductor
B: PVC Insulated
C: PVC Sheathed
4. Production Standards:
60227 IEC 42
60227 IEC 52
JB8734.3
5. Conductor:
Copper
6. Insulation:
PVC(Polyvinyl Chloride)
7. Jacket
PVC(Polyvinyl Chloride)
8. Operating Characteristics:
A. The permissible long-term operating temperature of cable conductor shall not exceed 70°C.
9. Specifications:
|
RVB 300/300V (60227 IEC 42) |
|||
|
Nominal Section (mm2) |
Approximate O.D. (mm2) |
Conductor Resistance (20°C,Ω/km) |
Approximate Weight (kg/km) |
|
2x0.3 |
2.3X4.3 |
69.2 |
12.5 |
|
2x0.4 |
2.5X4.6 |
48.2 |
16.0 |
|
2x0.5 |
3.0X5.8 |
39.0 |
20.5 |
|
2x0.75 |
3.2X6.2 |
26.0 |
27.5 |
|
2X1.0 |
3.4X6.6 |
19.5 |
33.0 |
|
RVVB 300/500V (60227 IEC 52) |
|||
|
2x0.75(A) |
7.6 |
26.0 |
50.2 |
|
2x0.75(B) |
5.0X7.6 |
26.0 |
35.0 |
|
2x1.0 |
7.8 |
19.5 |
69.9 |
|
2x1.5 |
8.8 |
13.3 |
92.0 |
|
2x2.5 |
11.0 |
7.98 |
132.8 |
|
3x0.75 |
8.0 |
26.0 |
66.1 |
|
3x1.0 |
8.4 |
19.5 |
83.3 |
|
3x1.5 |
9.6 |
13.3 |
114.7 |
|
3x2.5 |
11.5 |
7.98 |
160.9 |
|
4x0.75 |
8.6 |
26.0 |
81.1 |
|
4x1.0 |
9.2 |
19.5 |
102.4 |
|
4x1.5 |
11.0 |
13.3 |
147.3 |
|
4x2.5 |
12.5 |
7.98 |
203.5 |
|
5x0.75 |
9.4 |
26.0 |
98.7 |
|
5x1.0 |
11.0 |
19.5 |
125.0 |
|
5x1.5 |
12.0 |
13.3 |
178.6 |
|
5x2.5 |
14.0 |
7.98 |
246.7 |
|
RVS 300/300V (JB8734.3,Q/HY001) |
|||
|
2x0.5 |
2.4X4.8 |
39.0 |
18 |
|
2x0.75 |
2.8X5.6 |
26.0 |
25 |
|
2x1.0 |
3.0X6.0 |
19.5 |
30 |
|
2x1.5 |
3.2X6.6 |
13.3 |
43 |
|
2x2.5 |
3.8X7.8 |
7.98 |
67 |

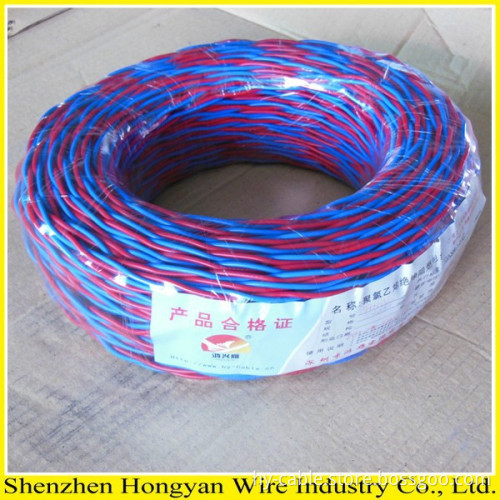

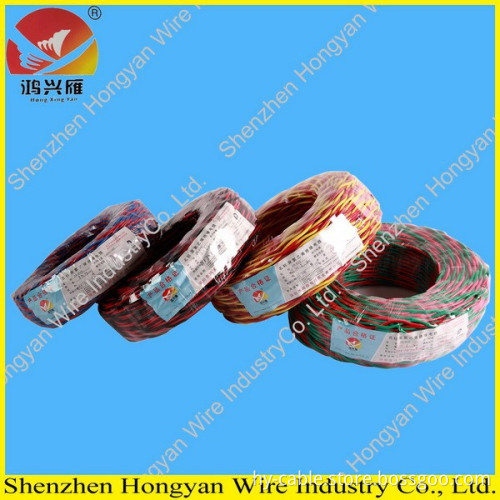

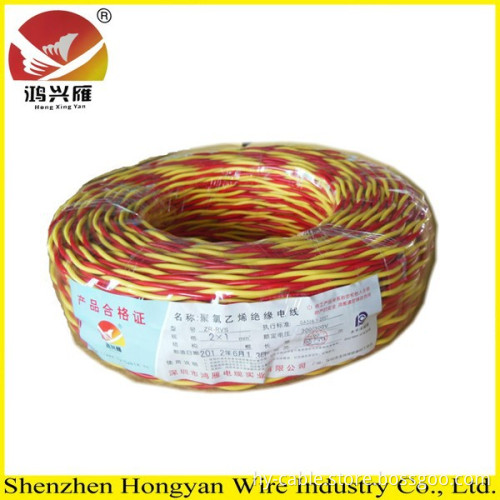

100m/Roll(other packing is optional) ,15-20days after receiving deposit.
1.15 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,ISO certificate
We are professional manufacturer for electric wire and network cable with competitive price and best quality since 1999,located in shenzhen city,China.
Production capacity: Eighty Millions per year
Factory area:2000 square meter
Worker:150 people
Certificate:CCC,ISO9001,CE,ROHS
Main Products:PVC insulation Wire,PVC/XLPE Power Cable,Fire-resistant wire,Control Cable,Lan Cable,Coaxial Cable,etc
