0.6/1kV PVC Insulated & Sheathed Steel Tape Armoured Power Cable

0.6/1kV PVC Insulated & Sheathed Steel Tape Armoured Power Cable

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1000 Meter

Min. Order:: 1000 Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	20 km / day
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	ISO9001, CCC RoHS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

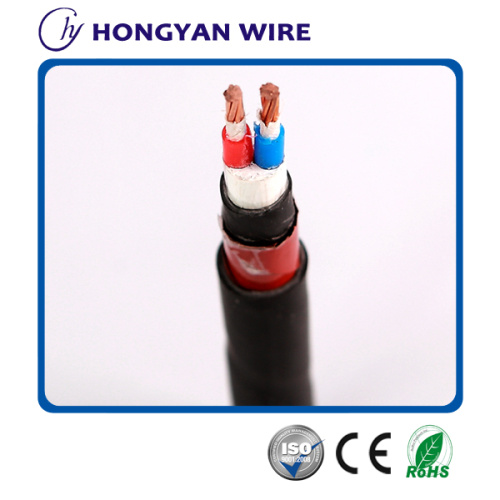

PVC Insulated and Sheathed Armored Power Cable, 0.6/1kV with steel tape armored (STA).

Type: VV22, STA Cable Cu/PVC/STA/PVC

Voltage Rate: 0.6/1kV
Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

Application:
It applies to electrical power transmission and distribution lines with AC rated voltage
UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet
locations, laid directly in the ground where excessive mechanical stresses are present in
sloping and moving terrains and in vertical or inclined laying, as well as in locations
susceptible to sliding.

Standard: IEC60502, BS7870, GB/T12706

Constructions

Conductor: Class 1/2 annealed bare copper solid or strands
Insulation: PVC

Armored: STA (Remark: for single core the armored should be ATA)

Sheath: PVC

Max. Operating Temperature: 70℃, can be 90℃ and 110℃ as per requirement
Packing: Wooden drum or as per requirement
Production Capacity: 20 kilometer/ day
MOQ: 1000 meters
Delivery time: 10~15 working days
Remark: The cable can be of flame retardant, fire resistance and environment friendly or other

property.

PVC Armoured Power Cable VV22 STA armoured Power cable POWER CABLE 0.6/1kV PVC Power Cable
