RVVB flat flexible PVC insulated sheathed electrical cable

RVVB flat flexible PVC insulated sheathed electrical cable

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 5000 Meter

Min. Order:: 5000 Meter

Delivery Time:: 7 Days

Transportation:: Ocean

Port:: Shenzhen, Hong Kong, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China.
Productivity:	20000 meters every day.
Supply Ability:	80000 meters per day.
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Certificate:	ISO9001, CCC, CE, RoHS and others
HS Code:	85444921.00
Transportation:	Ocean
Port:	Shenzhen,Hong Kong,Guangzhou

Product Description

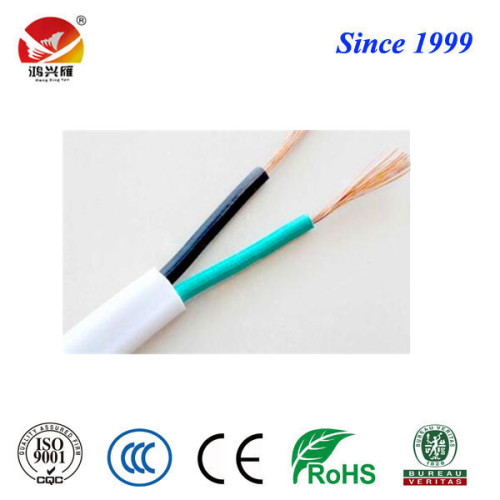

RVVB flat flexible PVC insulated and sheathed electrical cable, the details as below:

---Application

RVVB flat flexible PVC insulated and sheathed electrical cable, is used for AC rated voltage does not exceed 300/300V or 300/500v of the household appliances , small power tools, instrumentation, lighting and power cable devices.

---Conductor

Pure annealed strand copper wire, Class 5, meets to IEC 60228

---Voltage Rate

300/300V, 300/500V.

---Insulation Material
PVC (Polyvinyl Chloride)

---Insulation Colour

2 Cores: Blue & Brown

---Sheath Material
PVC (Polyvinyl Chloride)

---Sheath Colour

Black or white

---Temperature Rating
-10°C to +70°C

---Minimum Bending Radius
6 x Cable's Out Diameter

---Test voltage

2000V, 5 min (don't breakdown)

---Main Technology Data

Cross-section (mm2)	Copper Structure (pcs/mm)	Insulation Material	Sheath Material	Voltage Rate	Refer O. D. (mm)	Refer Net Weight (kg/km)	Packing Type
RVVB 2x0.50	2 x 17/0.20	PVC	PVC	300/300 V	3.8 x 6.0	28	100 m/roll
RVVB 2x0.75	2 x 25/0.20	PVC	PVC	300/300 V	3.9 x 6.4	35	100 m/roll
RVVB 2x0.75	2 x 25/0.20	PVC	PVC	300/300 V	5.0 x 7.6	44	100 m/roll
RVVB 2x1.0	2 x 34/0.20	PVC	PVC	300/500 V	5.3 x 8.5	58	100 m/roll
RVVB 2x1.5	2 x 50/0.20	PVC	PVC	300/500 V	6.0 x 9.0	79	100 m/roll
RVVB 2x2.5	2 x 84/0.20	PVC	PVC	300/500 V	6.5 x 10.2	128	100 m/roll
RVVB 2x4.0	2 x 58/0.30	PVC	PVC	300/500 V	6.7 x 11.3	140	100 m/roll

---Hongyan Profile:

Shenzhen Hongyan Wire Industry Co., Ltd, was established in 1999, is specialized in Electric wires, Power Cables, Network Cables, Lan Cables, Telephone Cables and Coaxial Cables. The Company is located in Shenzhen, China, the area more than 10,000 square meters.

---Hongyan Advantages:

1) Competitive Price, Excellent Quality, Shortly Delivery Time, Foremost Services.

2) ISO9001, CCC, CE, Reach, RoHS, Bureau Veritas and other certificates.

3) 50 minutes reach to Shenzhen sea or air port.

4) 3 professional engineers and 168 experienced workers.

5) Our products meets to GB, JB, IEC, AS/NZS, BS, VDE, UL and other standards, and we can accept to OEM service.

---Hongyan Products:

1) Bare Copper Wire, Bare Aluminum Wire;

2) 450/750V and below, PVC Insulation, Power Cables and Electrical Wires;

3) 0.6/1kV, PVC Insulation, Power Cables and Electrical Wires;

4) 0.6/1kV XLPE Insulation, Power Cables;

5) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 26/35kV, Medium Voltage power cables;

6) Control Cables, Instrument Cables, Safety/Security Cables, Alarm Cables;

7) Flexible Cable, Soft Cable, Welding Cables, Battery Connect Cables, Machine Connect Cables;

8) 1kV or 10kV, Aerial Bunch/Bundled Cables;

9) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH Cables, RoHS Cables, Environmental Protection Cables, Irradiation Cross-linked Cables;

10) Communication Cables: Network Cables: Cat 5, Cat 5e, Cat 6 Cables; Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs, 10 Pairs and 20 Pairs Cables; Coaxial Cables: SYV75-5, SYWV75-5, RG6, RG11, RG59 Cables.

---Hongyan Slogan:

Hongyan Wire, Quality is the Soul, Credibility is the Market.

Hongyan Wire, is the Manufacturer, is the Source, and is the First Ring of the Supply Chain.

Hongyan Wire, is your Production Base, Overseas Warehouse and Chinese Agency in Wire and Cables industry.

---Company Photos
