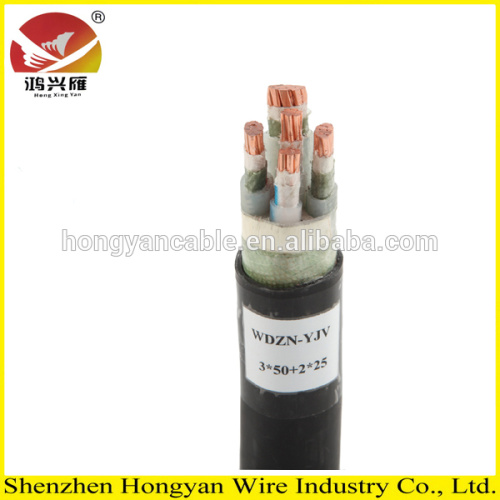

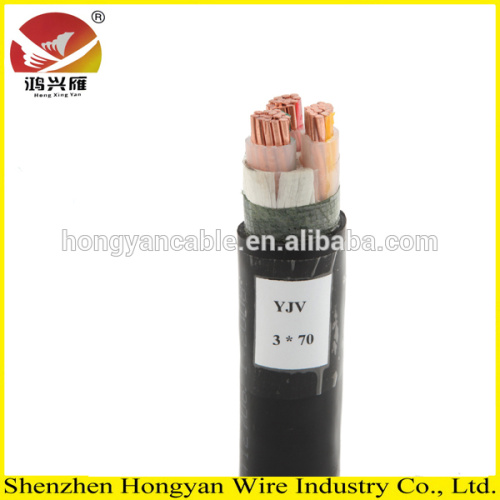

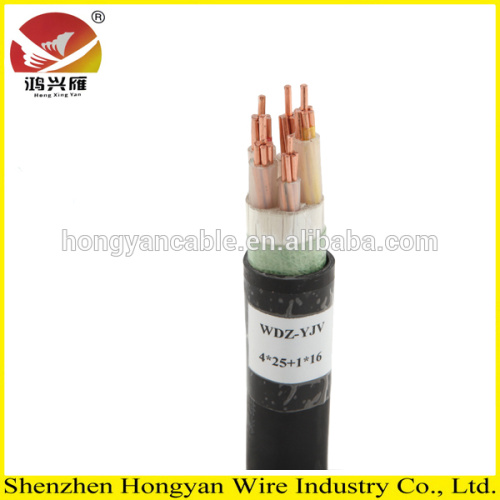

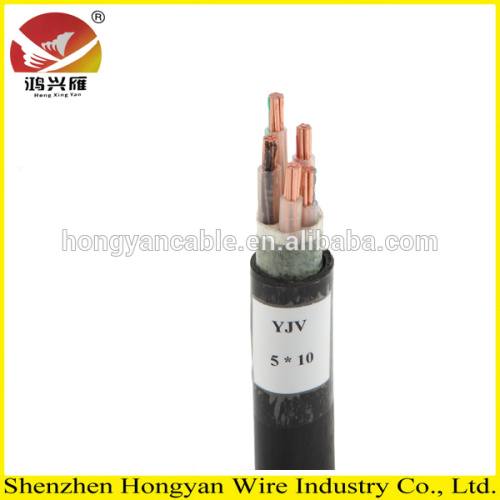

Low Voltage Kinds Of XLPE electrical Power Cable
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product description:
Low Voltage Kinds Of XLPE Power Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.
1.U0/U: 0.6/1kV
2.Standard: IEC60502, BS7870,GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation: XLPE
6. Sheath: PVC
7. Armored: STA
8. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
9. Cross section area: 1.5~630mm²
10.Packing:Wooden drum or as requirement
11.Certification : ISO9001/ISO14001 /OHSAS18001/CCC/CE/CB
12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
Technical Data:
|
U0/Um(kv) |
1st class |
0.6/1kv |
1.8/3kv |
3.6/6kv |
6/10kv |
8.7/15kv |
12/20kv |
18/30kv |
21/35kv |
|
No.of Core |
|||||||||
|
1 Core |
Section |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|
|
|||||||||
|
area(mm2) |
|||||||||
|
2 Core |
Section |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
|||||||||
|
Area(mm2) |
|||||||||
|
3 Core |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|
|
4 Core |
Section |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|
Area(mm2) |
