Cat 6 SFTP Double Shield LAN Cable
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Pack/Packs
- Min. Order:
- 100 Pack/Packs
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 20 kilometer/ day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | RoHs, ISO9001,CCC |
| Transportation: | Ocean,Land,Air |

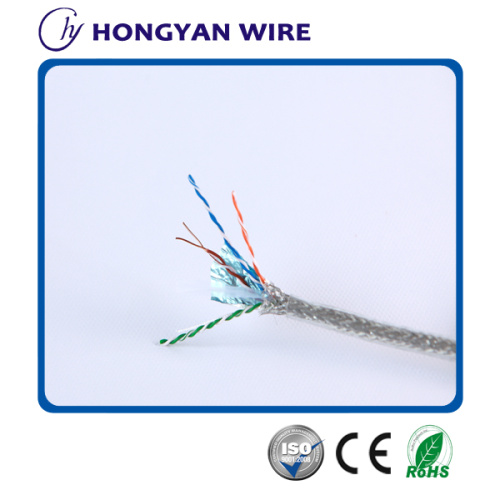

Cat 6 SFTP Double Shield LAN Cable
Category 6 Cable (Cat 6) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 25MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
| Standards | Conductor Size | Insulation |
| ISO/IEC11801 | 4 x 2 x 0.57mm | HDPE |
| ANSI/EIA/TIA-568-B.2-1 | 23AWG | High Density Polyethylene |
| Jacket | Core Identification |
| PVC | Blue, white/blue |
| Polyvinyl Chloride | Orange, white/orange |
| LSZH | Green, white/green |
| Low Smoking Zero Halogen | Brown, white/brown |
| Drain Wire | Braid |
| Tinned Copper | Tinned Copper |
Construction
Specification
Conductor
Thick.
of Insulation
mm
Nominal
O.D.
mm
Nominal
Weight
Kgs/305m
box
23AWG
1.10±0.005
8.6±0.2
20
Electrical Characteristics:
Max. Conductor Resistance: 6.8Ω/100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.3%
Min. Propagation Velocity: 0.622C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100±15Ω
Min. Insulation Resistance: 7000MΩ/km
Frequency
Attenuation
NEXT
PS-NEXT
RL
ELFEXT
PS-ELFEXT
MHz
dB/100m
dB
dB
dB
dB
dB
1
1.9
74
72.3
20
68
65
4
3.7
65
63.3
23
56
53
8
5.3
60.7
48.8
24.5
49.9
46.9
10
5.9
59
57.3
25
48
45
16
7.5
56
54.2
25
43.9
40.9
20
8.4
55
52.6
25
42
39
25
9.5
53.3
41.3
24.3
40
37
31.25
10.6
52
49.9
23.6
38.1
35
62.5
15.4
47
45.4
21.5
32.1
29.1
100
19.8
44
42.3
20.1
28
25
200
29
40
37.8
18
22
19
250
32.8
38
36.3
17.3
20
17
Packing:
305 meters per inner box,
2 boxes per out box
