Cat6 Utp Outdoor Cable 250Mhz 23Awg

Description

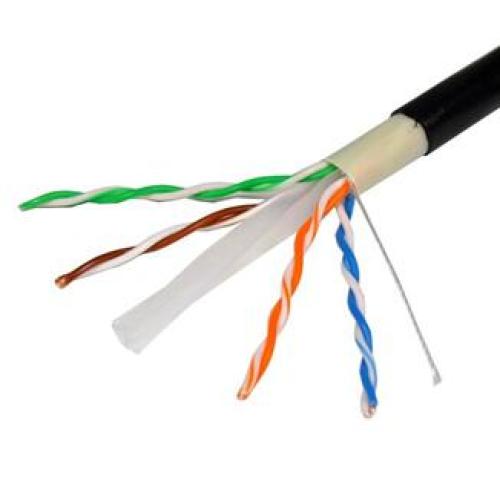

Cat 6 UTP Outdoor LAN Cable, 250Mhz 23AWG Cu 305m Cable in pull box.

Outdoor Cat 6 UTP Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus. We have the network solution that is right for you.

Outdoor Unshielded Cat 6 cable is the perfect fit for installations where the cable will be outside and above ground. This cable's 8 conductors (4-pair) are solid bare copper with a high desity polyethylene (HDPE) insulation and PVC+PE Jacket. This cable is tested to perform up to speeds of 25MHz.

Standards

ISO/IEC11801, ANSI/EIA/TIA 568-B.2-1

Conductor

Class 1 solid pure annealed copper wire.

Conductor Size:
4 x 2 x 0.57mm (23AWG)

Insulation:
HDPE (High Density Polyethylene)

Inner Sheath (Jacket):
PVC (Polyvinyl Chloride)

Out Sheath (Jacket):
PE (polyethylene)

Core Identification:
Blue, white/blue;
Orange, white/orange;
Green, white/green;
Brown, white/brown

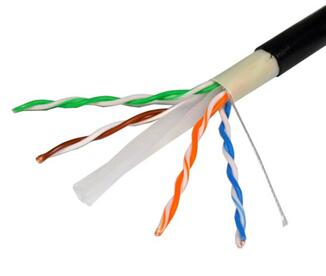

Construction

Specification

Conductor material: Pure annealed copper wire
Conductor structure: 4 x 2 x 0.57 mm (23 AWG)
Insulation material: HDPE
Insulation thickness: 1.03mm
Sheath (Jacket) Material: PVC
Sheath (Jacket) Thickness: 0.6mm
Sheath (Jacket) Color: black
Cable`s Out Diameter: 6.3 mm
Operation Temperature: 60°C or 75°C
Waterproof Function: yes

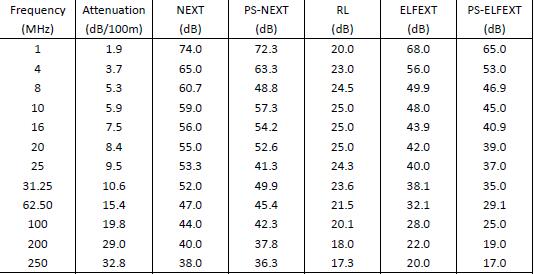

Electrical Characteristics:

Max. Conductor Resistance: 7.0Ω /100m.
Max. Resistance Unbalance: 2.3%
Min. Conductor Elongation: 20%
Min. Insulation Resistance: 7000MΩ/km
Min. Insulation Elongation: 300%
Min. Propagation Velocity: 0.62C m/s
Characteristic Impedance: 100±15Ω.

Packing:
305 meters per inner box, total 200 boxes
2 boxes per out box, total 100 boxes.
Inner box dimension: 230 x 420 x 420 mm.
Out box dimension: 450 x 450 x 490 mm
Cable`s Net Weight: 13 kg per 305M.
Inner Box Net Weight: 1.0 kg.
Out Box Net Weight: 1.05kg.
Total Net Weight: 26 kg per out box.
Total: Gross Weight: 30 kg per out box.
