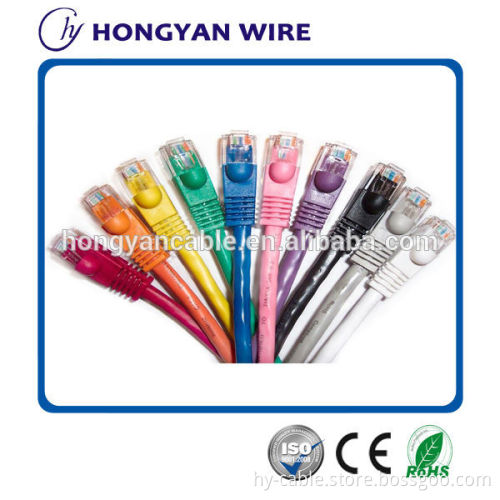

High quality rj45 patch cord utp cat5e cable with best price
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
High quality rj45 patch cord utp cat5e cable with best price
1. utp cat5e cable overview
- Highest 99.999% pure copper OFC conductor, oxygen-free copper wire cable, Fluke test approved.
- High-Performance data cable, used for structured cabling, CCTV system, Alarm system, Telecom project, Voice, Integrated service data network (ISDN), Local area network.
-
Category 5E UTP FTP and SFTP. PVC Insulation, ROHS,PVC/PE/LSZH Jacket, Indoor/Outdoor
Category 6 UTP FTP and SFTP. PVC Insulation, ROHS,PVC/PE/LSZH Jacket, Indoor/Outdoor
3.Description
Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
| Type: | Oxygen-Free copper wires utp Cat5e cable |
| Conductor diameter: | 24AWG 0.48mm/0.5mm/0.51mm etc. |
| Conductor material: | Oxygen-Free copper(OFC)/CU/CCA |
| Number of conductor | 4pr 8core (2pr 4core also available) |
| Shield | UTP, unshielded twisted pair cable |
| Insulation spec: | 0.91mm+0.005 color-coded HDPE |
| Rip cord | optional |
| UTP Cable Sheath: | 5.0mm+0.2 Non-ROHS PVC/LSZH PVC/ROHS PVC |
| Marking on jacket: | As your requestment (Can print your brand or company name) |
| PVC jacket color: | Grey,yellow, green, accept client's request |
| Packing way: | 305m/easy pull box(other packing is optional) |
| 1-100MHz Impendance: | 100±15Ω |
| Conductor DC resistance(Max): | 9.5Ω/100m |
| Resistance Unbalance(Max): | 2.4% |
| Spark test: | 2000V |
| Insulation resistance(Min): | 7000MΩ·km |
| Export to worldwide! | |
4. Lan cable UTP Cat5e cable packing details:
|
utp Cat5e cable 0.50mm |
Cat6 utp cable 0.57mm |
||
|
305m box dimension: |
36.5*36.5*20cm |
305m Box dimension: |
41.5*41.5*21cm |
|
Carton dimension: |
38*38*42.5cm |
Carton dimension: |
43.5*43.5*44.5cm |
|
Packing way: |
1CTN / 2pull box |
Packing way: |
1CTN / 2pull box |
|
Volume /carton: |
0.062 CBM |
Volume /carton: |
0.085 CBM |
|
Weight /carton: |
20.6kgs |
Weight /carton: |
26.4kgs |
|
20GP quantity: |
930boxes |
20GP quantity: |
650boxes |
|
40GP quantity: |
2016boxes |
40GP quantity: |
1350boxes |
|
40HQ quantity: |
2230boxes |
40HQ quantity: |
1620boxes |
|
MOQ for OFC cable: |
100BOX |
MOQ for OFC cable: |
100BOX |
|
MOQ for CCA cable: |
300BOX |
MOQ for CCA cable: |
300BOX |
- Shenzhen Hongyan Wire Industry Co., Ltd established in 1999 and is located in Maling Industrial Park, Longgang, Shenzhen, China. We are a professional designer and manufacturer in wires and cables with ISO9001, having two senior cable engineers, over twenty managing and well-trained workers.
- Our main products: Cat5e UTP/FTP/SFTP Lan Cable, CAT6 UTP/FTP/SFTP Lan Cable, Electrical Cable, Power Cable, PVC Insulated Cable, XLPE Insulated Power Cable, Steel Tape Armor Cable, Control Cable, Telephone Cable, Coaxial Cable, Fire-resistant Cable and Flame-retardant Cable and so on.
- We are strictly according to the international, national and industry standard and have the national industrial production permit and China Compulsory Certification (CCC) and Flame-retardant and Fire-resistant and ISO9001 certifications. And our products are got the quality insurance commitment by China Pacific insurance company. We won "Customer Satisfaction Products of Guangdong Province", "China Quality Credit Enterprise", "Chinese famous Brand" honorable certificates.
- Factory view
- Our certificate
packaging detail:
- 305m/roll
- 500m/roll
- 1000m/roll
- eazy pull box packed
- Wooden drum packed
- Pictures
delivery detail:2 weeks after received your deposit
OEM service
Logistic and consultance service
Detail technical support
