networking cables assembly utp cat5e cat6
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Category 5E (Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling
for computer networks such as Ethernet, supports a frequencyrange of up to 100MHz and is designed for transmission
speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals
such as telephony and video.
networking cables assembly utp cat5e network cable Constructions:
Conductor Material:soild bare copper,CCA,CCA+CCS
Conductor AWG:24awg/26awg/as per your request
Insulation:high density polyethylene(HDPE)

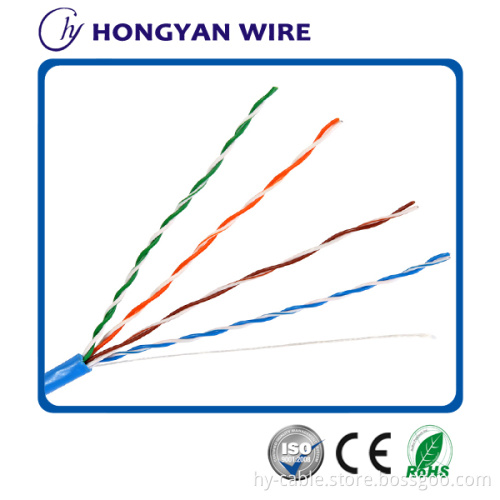

Twisting: 4 twisted pairs, 2 single conductors paired,
Twisted pair color code:1: white- blue / blue 2: white- orange / orange
3: white-green / green 4: white-brown / brown
Jacket: PVC/PE/LSZH(Low Smoke Zero Halogen)
Temperature Range: 0° to +70°C

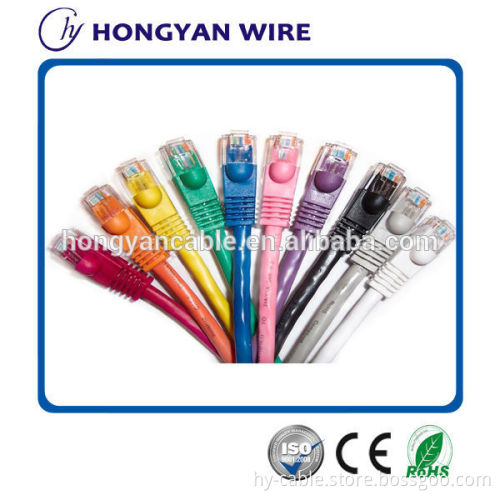

Connector:RJ45 Plug
Specification and Electrical Characteristics
|
Conductor |
Thick.of insulation mm |
Nominal O.D. mm |
Weight kgs/305m box |
||||||||
|
24AWG |
0.91±0.005 |
5.0±0.2 |
9.0 |
||||||||
|
Max. Conductor Resistance: 9.2Ω/100m |
Min. Insulation Elongation: 300% |
||||||||||
|
Max. Resistance Unbalance: 2.4% |
Min. Propagation Velocity: 0.62C m/s |
||||||||||
|
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||||||
|
Min. Insulation Resistance: 7000MΩ/km |
|
||||||||||
|
Frequency
(Mhz) |
Insertion Loss (Soild) Max,dB/100m |
Next (Worst pair to pair) Min.dB |
PSNEXT Power Sum NEXT Min.dB |
ELFEXT Power Sum ELFEXT Min.dB/100m |
PSLFEXT Power Sum ELFEXT Min.dB/100m |
Return Loss
Min.dB |
|||||
|
1 |
2 |
65.3 |
62.3 |
20 |
64 |
61 |
|||||
|
10 |
6.5 |
50.3 |
47.3 |
25 |
44 |
41 |
|||||
|
25 |
10.4 |
44.3 |
41,3 |
24.3 |
35.8 |
33 |
|||||
|
31.25 |
11.7 |
42.9 |
39.9 |
23.6 |
34.1 |
31.1 |
|||||
|
62.5 |
17 |
38.4 |
35.4 |
21.5 |
28.1 |
25.1 |
|||||
|
100 |
22 |
35.3 |
32.3 |
20.1 |
24 |
21 |
|||||
Category 6 Cable(Cat 6) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks,such as Ethernet, supports a frequency range of up to 250MHz andis designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
305m cat5e lan cable box ,500m box
305m wooden reel,500m/1000m per wooden reel
305m plastic reel,500m/1000m per plastic reel
or pack it as per your request
Our Services
1. inquiries will be replied within 24 hours.
2. Professional manufacturer, 16 years manufacturing experience.
3. OEM/ODM available
1) Printing your logo on the cable is available
2) Printing your logo on the pull box, or make it according to your design is available
3) Any your reasonable idea on cable, packing box are available.
4. High quality, reasonable and competitive price, fast lead time.
5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
